Selecting the Right PowerFlex Drive for Your Application

Selecting the most suitable PowerFlex drive for your application is essential to guarantee its effectiveness, dependability, and smooth functioning. There are a number of different PowerFlex drive series available, and each one has special characteristics and capabilities. Knowing the features and subtle differences of every drive is crucial to helping you make an educated choice. These features, including voltage classes, control algorithms, protection classes, and power ratings—are essential in helping you choose the suitable PowerFlex drive. Factors such as enclosure type, communication interfaces, and environmental conditions must also be properly taken into account to guarantee compatibility and lifespan. In this article, We’ll go over the main features of different PowerFlex drive series, enabling you to choose the one that best suits your application. We will be discussing PowerFlex 40, PowerFlex 525, PowerFlex 700, PowerFlex 400, PowerFlex 755, PowerFlex 4, PowerFlex 527, PowerFlex 70, PowerFlex 700S and PowerFlex 523 in detail.

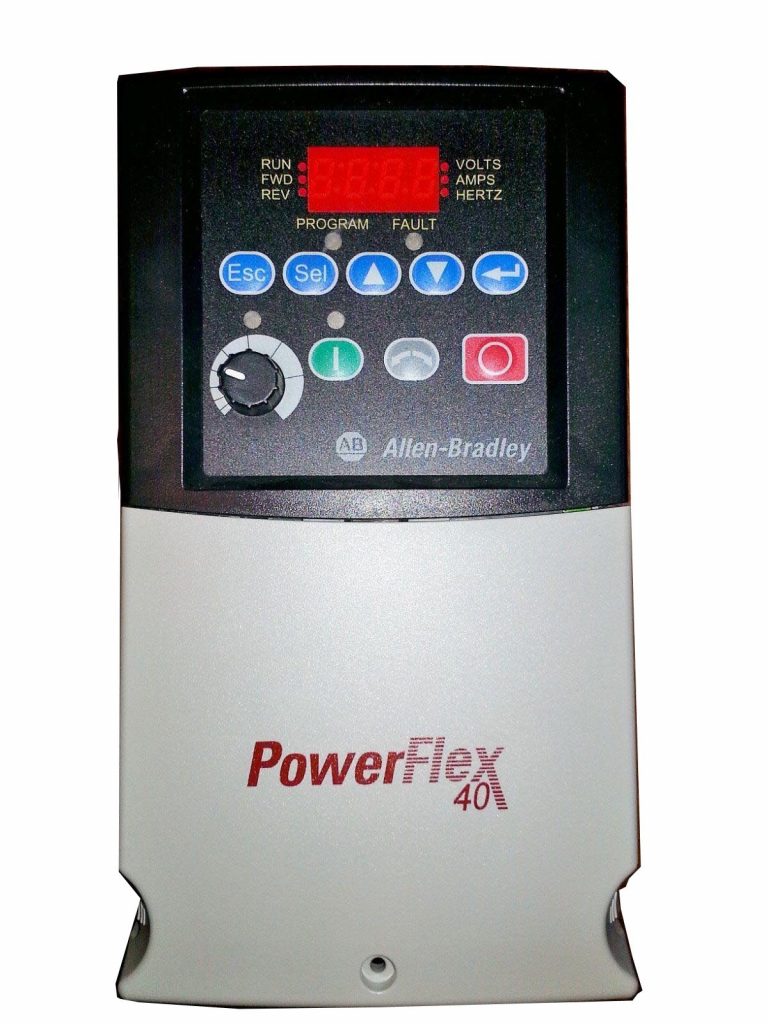

PowerFlex 40 Series:

PowerFlex 40 series AC drives support voltage classes of 120, 240, 480, and 600 volts AC and have a compact design with a variety of power ratings ranging from 0.25 to 15 horsepower. Common uses for these drives include machine tools, conveyors, fans, and pumps. Power ratings vary from 0.5 to 1.5 HP for 100-120V AC, 0.5 to 10 HP for 200-240V AC, 0.5 to 15 HP for 380-480V AC, and 1 to 15 HP for 500-600V AC, depending on the voltage class. For this PowerFlex series, process PID, vector control, sensorless vector control, and position control are supported control algorithms. In these drives, StepLogic facilitates position control for different applications. One integrated RS-485 connection port is included with every PowerFlex 40 drive, and optional extra communication modules like BACnet, Ethernet, DeviceNet, and ControlNet are also available. IP 20, IP 66, open, plate drive, and flange-mounted enclosures are among the enclosure kinds for this series. For proper functioning, the surrounding air temperature should not rise over 50 degrees Celsius. To reduce the risk of equipment damage, isolate the mains supply before beginning any operation, wait three minutes after disconnecting to allow the capacitors to drain, and follow ESD management measures.

PowerFlex 525 Series:

Featuring integrated Ethernet communication connections along with 30 horsepower power-rating support across worldwide voltage classes (100 to 600 Volts AC), the PowerFlex 525 drives offer a modular design that makes setup and installation easier. For this series, The USB link to a computer allows for the uploading and downloading of configurations. Closed-loop velocity vector control, permanent magnet motor control, and sensorless vector control are examples of advanced control techniques. The drives of this series have two enhanced positioning control abilities, which include closed-loop feedback and point-to-point position mode. The drives may accommodate two analog inputs, seven digital inputs, one analog output, two opto outputs, and two relay outputs. While the dual-port Ethernet option card offers Device Level Ring topology for stable communication, embedded Ethernet ports simplify deployment and control.

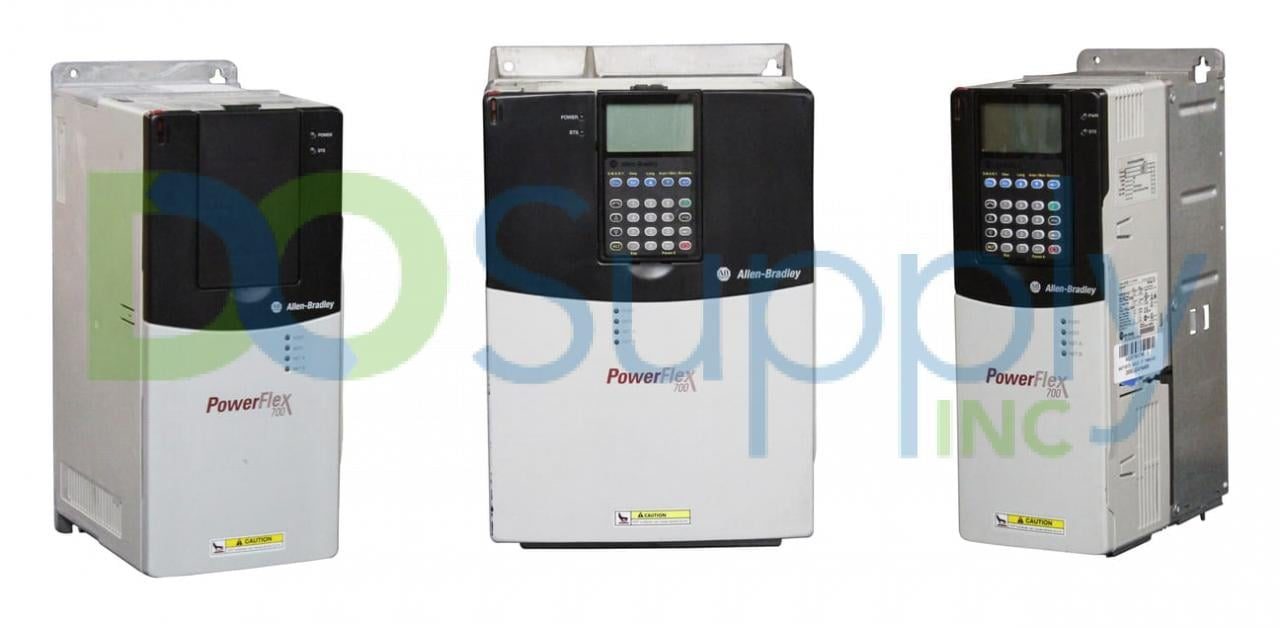

PowerFlex 700 Series:

PowerFlex 700 series consists of adjustable-frequency AC drives designed to operate 3-phase induction motors in different industrial settings, including oil well, lifting, and positioning duties. Power ratings vary according to input voltage classes: 45 -132 kW at approximately 690 Volts AC, 1 to 150 Horsepower at 500-600 Volts AC, 0.37-66 kW at 200-240 Volts AC, and 0.37-132 kW at 380-480 Volts AC. Combining I/O, control, and encoder functions into a single cassette option makes it compatible with all PowerFlex 700 drives. For open IP 20-rated drives, the optimum working temperature for this series ranges between 0-50 degrees Celsius, and for all enclosure types, the ambient temperature for storage ranges between -40-70 degrees Celsius. PowerFlex 700 drives are available in several enclosures, such as IP 54 wall-mounted, IP 54 flange-mounted, IP 20 NEMA, and zero stacking variations. These drives optimize space use with integrated components such as internal brake resistors, EMC filtering, and communication interfaces. PC-based software and LCD HMIs are used for programming and administration; connectivity adapters for USB, Ethernet, ControlNet, and DeviceNet networks are optional.

PowerFlex 400 Series:

With support for two voltage classes, the PowerFlex 400 series specializes in speed control for mechanical applications requiring variable torque. These drives support 3 to 50 horsepower at 240 volts AC and 3 to 350 horsepower levels at 480 volts AC. The series provides two package options: flange enclosures that facilitate heatsink attachment for certain horsepower ranges and IP 20 (NEMA) enclosures for both indoor and outdoor control cabinet mounting with a maximum ambient temperature of 45 degrees Celsius. An integrated HMI with a 16-character LCD and keyboard makes programming easier. Software choices like DriveExplorer and DriveTools SP are also available for this series. Integrated RS-485 and option kits supporting Profibus DP, Ethernet, LonWorks, and BACnet networks are among the communication interfaces available. Control algorithms allow many stop modes, including ramp, coast, S-curve, and DC-brake. In between the temperatures of -10-50 degrees Celsius for IP 20-rated enclosures and -10-45 degrees Celsius for IP 30-rated enclosures, operational safety is guaranteed by motor over-temperature protection and motor overload protection (class 10).

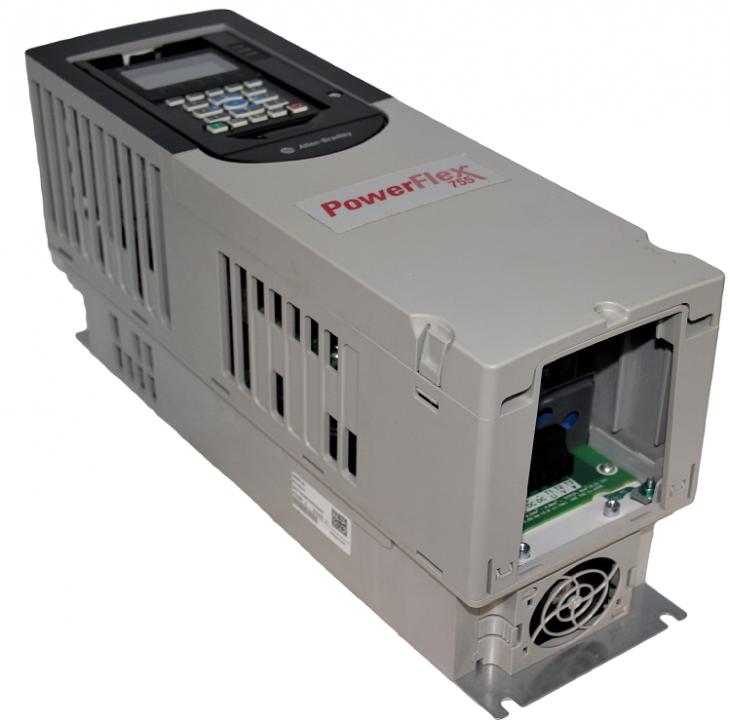

PowerFlex 755 Series:

For industrial motor control, the PowerFlex 755 AC drives provide excellent performance, user-friendliness, and application flexibility. These drives, which provide a range of hardware and control choices and optional incorporated safety measures, are perfect for conveyor-related applications. Through integrated EtherNet/IP modules, the drives of this series link with industrial communication networks, allowing for connection in ring, star, and linear topologies. Automatic Device Configuration allows configuration settings to be obtained automatically from Logix controllers. Supporting voltage ranges of 200V to 690V AC, this series may be installed in IP 00, IP 20, NEMA/UL type open, flange-mounted, or IP 54 NEMA/UL type 12 enclosures. Popular power choices may be affordably solved using pre-engineered power option bays. With the LCD interface built into the drives themselves, programming and setup are made easier by DriveTools software, LCD HMI modules, Connected Components Workbench software, or SP software.

PowerFlex 4 Series:

The PowerFlex 4 series provides simplicity and space efficiency to satisfy the demands of customers and OEMs worldwide. These drives are the smallest and most economical in the PowerFlex series because they include integrated keypads and active control keys, which provide strong motor speed control in various applications. They are offered in IP 20 NEMA 1 or IP 66 NEMA 12/4x enclosures, with horsepower ranges of 0.25 to 1.5 HP, 0.25 to 5 HP, or 0.5 to 5 HP. They can operate across input voltage levels of 100-120V AC, 200-240V AC, or 380-480V AC. The drives of the PowerFlex 4 series have a variety of mounting and packing choices, and they can tolerate ambient temperatures of up to 50°C when spaced out little or up to 40°C when stacked side by side. Built-in keyboards are simple to use and set up, so no programming is needed beforehand. With the Logix control platform, parameter programming is made simpler and is possible with network solutions and programming choices like software applications and remote keypads. With sensorless vector control, the drives maintain excellent performance by adjusting the motor for the best amount of torque at different speeds.

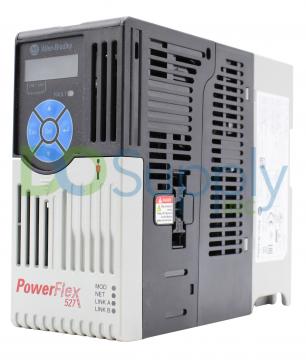

PowerFlex 527 Series:

Designed to be integrated using “Studio_5000 Logix Designer” software with Logix Programmable Automation controllers, the PowerFlex 527 series has AC drives with an adjustable frequency feature. With certifications from RCM, CE, TUV, KCC, and EAC standards, standard safe torque-off safety features guarantee operating safety. For this series, Power ratings span from 0.4 to 22 kW and 0.5 to 30 HP, with the ability to operate at worldwide voltages ranging from 100 to 600 V AC. The Integrated two Ethernet ports allow for flexible network topology applications for this series. Five different kinds of frames are available in this series: Frames D and E may be screw-mounted, while Frames A, B, and C can be screw-mounted or DIN rail-mounted. Installations should be done no higher than 1000 meters, with operating temperatures between -20 and 50 degrees Celsius and relative humidity up to 95%.

PowerFlex 70 Series:

PowerFlex 70 series consists of sophisticated AC drives that can be programmed using an LED HMI (SCADA integration System). Computer-based programming is possible with the DriveExecutive and DriveExplorer software options. These drives have output ratings of 0.5 to 25 HP for 240V AC input, 0.5 to 50 HP for 480V AC input, and 0.5 to 50 HP for 600V AC input. They are mostly appropriate for fan and extruder applications. Flange types for heatsink installation, IP 66 NEMA/UL types 4X/12 for indoor usage, IP 20 NEMA/UL type 1 for cabinets or outdoor mounting, and Zero Stacking for nearby mounting without temperature decrease are some of the enclosure type possibilities for this series. The communication interface, dynamic brake resistor, and EMC filtering are integrated features, whereas communication adapters are optional. Slip compensation, safe torque-off, droop control, inertia ride-through, PI control, and user control sets are among the other features of the PowerFlex 70 series drives. The optimum working temperature for IP 20 and flange-mounted drives lies between 32-122 degrees Fahrenheit; for IP 66 drives, it is 32-104 degrees Fahrenheit. Relative humidity for the drives of this series should be between 0 and 95%.

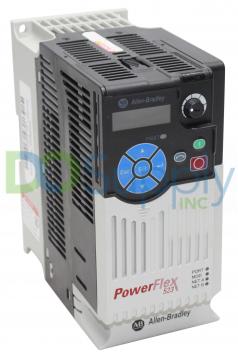

PowerFlex 523 Series:

The PowerFlex 523 AC drives are designed for shared DC bus installations and are suited for motor control applications requiring up to 22 kW (30 HP) of power. Single-phase input derates to 35%, but three-phase input offers the whole rating. With an input frequency tolerance of 47 to 63 Hz, the power outputs accommodate worldwide voltage classes of 100 to 600 volts AC and range from 0.2 to 22 kW (0.25 to 30 HP). This series has volts per Hertz and sensorless vector control as control choices. The PointStop function allows for constant motor load stopping without the need for encoder feedback. With a single PID loop, application flexibility is increased for this series. I/O includes one analog input, five digital inputs, one analog output, and one relay output. Multi-drop setup is made possible via the RS-485/DSI interface; for the PowerFlex 523 series, DeviceNet and ProfiBus networks are supported via optional communication kits. Programming is facilitated via USB using “Studio_5000 Logix Designer” software or “Connected Components Workbench.” With an optional control module fan, the operational temperature ranges from -4 to 122°F without derating and -4 to 140°F or -4 to 158°F. With a 1.96-inch minimum airflow gap at the top and bottom, drives may be installed side by side.

PowerFlex 700s Series:

Designed for Phase II control in demanding applications, the PowerFlex 700S AC drive family offers affordable control solutions with its DriveLogix software. Its power ratings span from 50 to 1500 kW at 690V AC, 1 to 1600 HP at 500-600V AC, 1 to 1250 HP at 380-480V AC, and 1 to 100 HP at 200-240V AC. It also has several reset defaults for quick preset voltage and frequency. While single-phase input provides 50% of the specified current, 6-pulse and 3-phase inputs provide full ratings. An optional LCD HMI, a remote keyboard, and computer-based management software applications such as “DriveTools SP” and “Connected Components Workbench“ are examples of configuration choices. SynchLink makes high-speed fiber-optic drive-to-drive synchronization and data transfer possible. Support for Ethernet, ControlNet, and serial networks is provided via optional connection modules. The Stahl SSI, Temposonics interfaces, incremental encoder, resolver, and high-resolution encoder are examples of feedback choices. There are many supported motor control methods, including flux vector control. The working temperature for the drives lies between 0-50o Celsius for open/IP 20-rated drives and 0-40o Celsius for NEMA/UL_Type 1 and IP 56 rated. The drives of this series are Certified by ATEX, CE, C-Tick, and UL standards.

Closing Thoughts

In conclusion, choosing the best PowerFlex drive for your industrial application is an important choice that will have a big influence on the reliability and efficiency of your system. With so many different PowerFlex drive series available, each with its own special features and capabilities, it’s critical to thoroughly assess your needs in order to make an informed choice. In this extensive article, we’ve covered the key traits and functions of the different PowerFlex drive series, offering insightful advice to help you make the best decisions possible. We’ve covered a broad range of alternatives to meet various industrial demands, from the small and adaptable PowerFlex 40 series to the sophisticated and high-performance PowerFlex 755 and PowerFlex 700S drives. It’s critical to comprehend important elements, including voltage classes, control algorithms, power ratings, enclosure kinds, and communication interfaces when choosing the ideal PowerFlex drive for your needs. There always exists a PowerFlex drive designed to match your individual needs, whether you need strong motor control for pumps and fans, accurate speed control for machine tools, or sophisticated positioning capabilities for particular jobs. In addition, factors like operational safety protocols, environmental factors, and integration with current automation systems are crucial in guaranteeing the smooth functioning and compatibility of the selected PowerFlex drive.
