Omron CPM1 PLC Selection: A Step-by-Step Guide

Omron is a global leader and revolutionizes contemporary manufacturing processes through industrial automation. Since 1933, Omron has offered automation products, including PLCs, sensors, robotics, and safety components. At the forefront of this transformation is the Omron CPM1 series, high-speed PLCs that meet the demands of modern automation.

This guide navigates the intricacies of selecting the right PLC within the Omron CPM1 series. As we delve into the features of key products like the CPM1-CIF01, CPM1A-20CDR-A-V1, CPM1A-40EDR, CPM1A-8ER, and CPM1A-TS001, this guide empowers users to make knowledgeable decisions tailored to their automation needs. Each product is meticulously crafted to enhance automation efficiency, from the compact and resilient Communications Adapter to the versatile Temperature Sensor Unit.

Omron Overview

Omron is a global industrial automation leader. It is reshaping the contemporary manufacturing processes. Omron has a long history, having been at the forefront of technical innovation since its establishment in Kyoto, Japan, in 1933. Omron provides a comprehensive suite of automation products such as programmable controllers, sensors, robotics, motion control systems, safety components, and more. The advancement of PLCs, such as the Omron CPM1 series, resulted in a notable breakthrough in control system programmability. This broad portfolio addresses various automation demands and serves various industries. Omron has led the way in introducing robots into industrial operations. They perform a variety of robotic activities, from intricate assembly work to material handling. Omron is a master in sensing technology. With these technologies, automated processes may be made more accurate, safe, and responsive by allowing machines to sense their surroundings. Omron understands the significance of safe, harmonious human-machine cooperation.  The priority in industrial environments is Omron’s safety components, such as secure automation settings, to enhance safety.

Omron has an extensive worldwide network with offices spread across almost 80 countries, offering strong assistance for its clients’ globalization initiatives. This network strengthens the dependability of Omron systems globally by guaranteeing prompt support, training, and servicing. Omron is also dedicated to sustainable and ecologically friendly automation techniques. Using recyclable materials, energy-efficient components, and green technology in items like the Omron CPM1 series shows the firm’s commitment to environmental responsibility.

Omron CPM1 PLC Overview

Omron developed a fast-speed, small Programmable Controller (PC) family called the CPM1 line. The CPM1 line was built for devices that need between 10 and 50 input/output points on a PC. It comes with several functions that improve its usefulness and efficiency. The one-piece structure of the CPM1 line is one of its distinguishing qualities. The CPU Boxes come with 10, 20, or 30 integrated I/O terminals, reducing installation complexity and eliminating the need for additional modules. Furthermore, the CPU Device may be coupled to a growth I/O Unit, which offers 20 input/output points and facilitates growth to a maximum of 90 points. An input filtering feature is included in the CPM1 to stop improper functioning brought on by chatter or noise in the signal input. Flexible signal processing is ensured through a user-selectable input time constant ranging from 1 millisecond to 128 milliseconds. Boosting uptime and simplifying maintenance, the CPM1 leverages flash memory for data backup, doing away with the battery requirement. Even during a power loss, data preservation is guaranteed by its low-maintenance architecture. The CPM1 line may be integrated into devices meant for the European Community market since it complies with EC requirements, including low-voltage and EMC directives. Input interrupts, fast-responding inputs, high-speed meters, analog setting capabilities, interval timers, and a range of communication choices, including Host Link and One-to-one link connections, are among the other noteworthy features. The CPM1 line is suitable for a variety of software packages and makes use of common peripheral devices. The CPM1 family from Omron offers a dependable and adaptable option for controlling functions in automation systems with minimal I/O needs because of its small size, high-speed performance, and diverse features.

Available Products

The SYSMAC CPM1 product line includes a variety of fast-speed programmable controllers intended for precision control activities. These models are appropriate for systems with 10–50 input/output points per PC. Furthermore, the CPU Part of this product line integrates 10, 20, or 30 input/output ports into a single design. These CPM1 controllers provide excellent control accuracy with features including high-speed counters, quick-response inputs, and input filter capabilities. They also provide easy setup and extension.

Let’s examine a few key products in the CPM1 series, each designed to address specific automation needs.

CPM1-CIF01

Empower seamless communication in your industrial setup with Omron’s compact and reliable CPM1-CIF01. This adapter is a versatile piece of hardware that acts as a bridge to allow the CPU to communicate with its many peripherals by providing level translating between RS-232C and CMOS. It’s an RS-232 adapter that enables a simplified setup with CPM1A Modules. The adapter is lightweight and portable, with external measurements of 90 mm in length, 30 mm in width, and 56 mm in depth. It supports many mounting arrangements, including PCB and DIN Rail. The converter has a single digital input, so switching to the Auxiliary Port standard is simple and fast. It is easy to take around thanks to its light weight of about 0.2 kg. Secure and dependable data transmission is made possible by isolating the peripheral device side RS-232C interface by a direct current converter and photocoupler. Utilizing power derived directly from the central processing unit eliminates the necessity for an extra power supply. Its maximum data transmission rate is 38.4 Kbits/s, and its maximum power consumption is 0.3 A. Demonstrating exceptional resilience, the CPM1-CIF01 adapter endures vibrations ranging between 10 and 57 Hz in the X, Y, and Z axes for 80 minutes, coupled with enduring shocks of 147 m/s2 in the X, Y, and Z axes. With its robust construction and comprehensive functionalities, the CPM1-CIF01 Communications Adapter is a superior option for facilitating level conversion and seamless communication between RS-232C and CMOS interfaces within industrial environments.

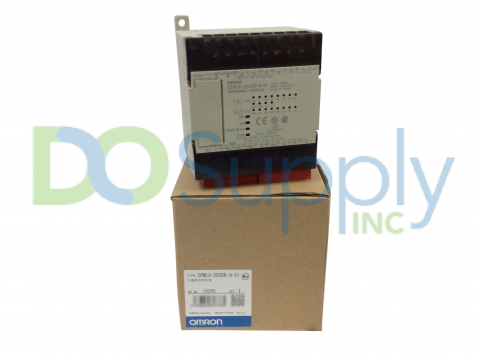

CPM1A-20CDR-A-V1

Take control of your industrial processes with Omron’s compact and versatile CPM1A-20CDR-A-V1 Programmable Controller Unit. This module is particularly developed for panel-mount usage. Its 90 mm x 50 mm x 86 mm proportions provide space-saving benefits that, for certain users, may be economical without sacrificing great functioning. The controller is compatible with various power sources often found in industrial facilities and factory floors since it functions across a broad electrical voltage ranging from 100 to 240V AC. Furthermore, there is sufficient space for connecting and managing equipment and procedures to the controller’s 12 input connectors and eight output points. Notably, the apparatus is equipped with an integrated LED display, which amplifies visibility and facilitates rapid tracking of the controller’s state and output statuses. This function makes maintenance and troubleshooting more effective. Additionally, the CPM1A-20CDR-A-V1 provides a programmable terminal connection with ease. This procedure offers a comfortable user interface while streamlining the configuration and setup process. The user-friendly features make Programming chores easier, which promotes effective operation. The CPM1A-20CDR-A-V1’s strong I/O capabilities enable it to function precisely and dependably. It may handle various automation duties, guaranteeing seamless operation and effective process control. The CPM1A-20CDR-A-V1 was built with longevity in mind and conforms with international standards, such as RoHS, ensuring long-term dependability and compliance with industrial needs. Because its panel mount architecture guarantees safe deployment within control panels, it is the best option for industrial automated operations where dependability and toughness are crucial.

CPM1A-40EDR

This versatile module seamlessly integrates, adding 24 digital inputs for comprehensive data gathering and 16 relay outputs for precise device control, empowering diverse industrial applications. The purpose of this device is to increase the digital I/O that a PLC may have, increasing its input/output capabilities. This device provides a workable solution for various industrial automation applications with 24 digital entry points and 16 relay outlets. The PLC can collect data and make choices depending on input circumstances thanks to the digital inputs, which enable connection to switches, sensors, and other equipment that give digital signals. Relay outlets allow the PLC to operate external devices like solenoids, motors, and valves on the output side. By acting as switches, the relays enable the PLC to control the linked devices’ on and off states by input circumstances and preprogrammed logic. Because of the unit’s simple DIN rail installation design, installing it is safe and well-organized. Similarly, it has screw terminals for connecting, which make wiring easier and enable dependable connections with additional machinery or field appliances. Furthermore, it can function in the temperature span between 0°C to 55°C. Additionally, it has received approval from NK and CE industrial standards. The CPM1A-40EDR Expansion input/output Unit offers a dependable way to increase PLCs’ input and output capacities in the CPM1A Family. It is vital to a CPM1A PLC system because of its robust architecture and capacity to manage relay outputs and handle digital inputs.

CPM1A-8ER

The expansion input/output device CPM1A-8ER is a product of Omron Corporation. It is intended to be combined with PLCs from the CPM1A family, offering extra output points for external device control in industrial automation applications. With its eight output terminals, the CPM1A-8ER module enables a PLC to handle eight distinct devices or processes. Relays are used by these outputs, which implies that electrical impulses are switched to linked devices via them. The CPM1A-8ER module has a stated 2W power consumption rating. The outputs have a maximum switching capacity of 24V DC/2A (4A/common) and 250V AC/2A (cosφ = 1). With an overall maximum load of 4 amperes, each output can manage an appropriate loading of 2 amperes for AC power and 2 amperes for DC power. The module is appropriate for low-power applications as it can accommodate a minimal switching capacity of 5 volts of DC and 10mA. Relays with an electrical lifespan of 150,000 times at 24 volts DC for resistive loads and 100,000 times at 200 V AC for inductive loads (cosφ = 0.4) are specified. This shows how long the relays should last under certain load scenarios. Furthermore, the mechanical relay lifespan, which indicates the relays’ longevity, is defined as 20 million times. The CPM1A-8ER module’s optimum ON and OFF delays are 15 ms. These values indicate the time required for the output to change states in response to a control signal. Because of its narrow width of about 66mm (2.6 inches), the CPM1A-8ER module is simple to integrate into equipment or control panels. The CE (European Conformity), N (NK), C (CSA), U (UL), and other standards are all met by the module. With the help of these certifications, industrial automation applications may be certain that the CPM1A-8ER module satisfies all safety and regulatory standards.

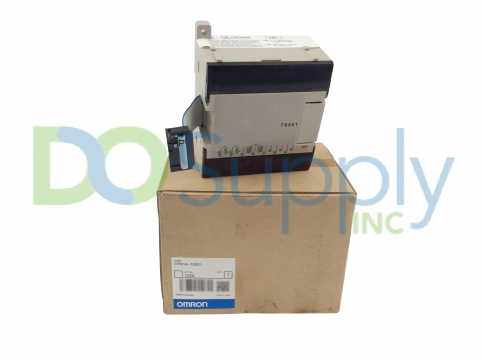

CPM1A-TS001

The CPM1A-TS001 is a sensor for temperature units designed especially to be integrated with the temperature monitors of the CPM1A range. This temperature sensor device employs its two analog inputs to precisely measure temperature. Its primary purpose is temperature monitoring rather than managing other machinery or devices. Its accurate readings in commercial and industrial contexts provide useful information for temperature regulation, equipment protection, and process control. The CPM1A-TS001 is suitable for business and institutional settings since it is designed to be easily installed on a DIN rail. Its screw terminals provide consistent and precise temperature measurements by providing dependable and safe connections. This device’s broad temperature operating range, which spans from 0 to 55° Celsius, is one of its key characteristics. Furthermore, the CPM1A-TS001 has been approved by Lloyd, CSA, and CE, demonstrating adherence to industry norms and guidelines. This guarantees that the gadget satisfies the necessary performance and safety requirements. The device weighs a mere 0.551 lbs (249.93 g). Its small dimensions and DIN rail mount design facilitate the system’s versatility and simplicity of integration into current systems. Indicating its superior moisture resistance, the CPM1A-TS001 boasts a Moisture Sensitivity Level score of 1, signifying the highest rating. Its dependability and robustness are guaranteed by this characteristic, even under demanding and humid conditions. This temperature sensor unit, the Omron CPM1A-TS001, is a dependable and effective tool for temperature monitoring purposes. Its small size, broad temperature range, ease of installation, and strong moisture resistance make it an invaluable instrument in commercial and industrial environments where precise temperature control is essential.

Conclusion

Omron’s CPM1 PLC series is a big deal in making things work smoothly in factories. Being around since 1933, Omron knows its stuff and has made these PLCs super smart. The guide we’ve just explored breaks down the CPM1 series step by step. It’s like your GPS for choosing the right PLC. These PLCs are not just smart but also eco-friendly, fitting into today’s green tech trend. Omron gives us cool tools like the CPM1-CIF01 adapter, CPM1A-40EDR Expansion I/O Unit, and CPM1A-TS001 temperature sensor. Each does a specific job, making automation easy for different needs. Picking Omron CPM1 PLCs means choosing high-tech solutions that also care for the planet. It’s not just about today’s needs; it’s about making tomorrow’s factories even better. Omron’s CPM1 series is like the superhero of the automation world!
