Mitsubishi FREQROL FR: Mastering Precision Control and Energy Savings

Mitsubishi Electric, a prominent force in manufacturing and technology on a global scale, meets essential industry requirements through its state-of-the-art Variable Frequency Drives (VFDs) within the FREQROL FR series. This article intricately examines how Mitsubishi’s FREQROL FR series empowers various sectors by delivering precise control and significant energy savings, establishing a harmonious balance between performance and sustainability. We will delve into the diverse models of VFDs within the FREQROL FR series, exploring their distinctive attributes and contributions to the automation industry regarding precision, energy efficiency, and accuracy.

Anti-Sway Control Technology

Mitsubishi Electric’s original anti-sway control technology redefines the standards for crane operations. This feature enhances operational efficiency by suppressing an object’s swinging during crane stops without requiring operator adjustments. This significantly reduces tact time, ensuring fast, robust, and smooth crane operations.

Load Torque High-Speed Frequency Control

The FR-A800 Plus Series introduces intelligent load torque high-speed frequency control, specifically beneficial when handling light loads with cranes. In Mode 2, the system automatically adjusts the operation speed based on the load, optimizing efficiency. The automatic increase in speed when dealing with light loads minimizes tact time, thereby streamlining operations and contributing to overall efficiency.

Shortest Time Torque Startup Function

A standout feature of the FR-A800 Plus Series is its shortest-time torque startup function. This function significantly reduces the time from the start command to when the brake opens, resulting in a notable reduction in tact time. The innovative distribution of excitation current and torque current enables rapid startup of the torque, ensuring swift and precise crane movements.

Precision Applications of Mitsubishi FR-A800 Plus Series in Industrial Automation

Mitsubishi Electric’s FR-A800 Plus Series stands as a beacon of innovation, demonstrating its prowess in two critical applications: position Error Correction and Wire Rope Length Measurement. The FR-A800 Plus Series transforms these applications by providing seamless control and high accuracy.

Position Error Correction

In scenarios where precise positioning is critical, the FR-A800 Plus Series shines in Position Error Correction. The system intelligently compares the pulse data from the two wheels by directly reading the traveled distance from the encoders installed at each wheel. The speed is then dynamically adjusted to synchronize wheel positions without needing an external controller. This results in high precision control, eliminating the

Wire Rope Length Measurement

The FR-A800 plus Series exhibits its versatility in Wire Rope Length Measurement applications. The travel axis adeptly reads the lifting/lowering movement of the lift axis, quantified in encoder pulses. This data is then utilized to calculate the length of the wire rope, providing a real-time measurement of the operating conditions. The wire rope length information integrates into anti-sway control algorithms, allowing for dynamic adjustments based on the operational scenario. When the predetermined rope length is reached, the system intelligently slows down the lifting/lowering speed, preventing potential collisions with the lift axis drum and ensuring a safer operational environment.

FR-A800 Plus for Roll-to-Roll Applications- Precision Control for High-Performance Machining

Precision plays a vital role when it comes to roll-to-roll applications. The good news is that Mitsubishi Electric’s FR-A800 Plus series is the best choice for easily machining paper, film, and thread. The FR-A800-R2R inverter is designed explicitly for roll-to-roll processes such as printing, slitting, coating, and twisting. It offers a dedicated function suite that ensures stable tension control, leading to high productivity.

Dancer Feedback Speed Control / Tension Sensor Feedback Speed Control

The FR-A800-R2R inverter boasts sophisticated PID control using feedback from the detected dancer roll position or the tension sensor. This integration ensures stable control, particularly when coupled with winding diameter calculation. The system maintains consistent response levels, critical for achieving stable tension control in diverse roll-to-roll applications.

Speed Control Proportional Gain Compensation

A standout feature of the FR-A800-R2R inverter is its speed control proportional gain compensation. This functionality allows for adjusting the speed control proportional gain based on the winding diameter. This dynamic adjustment ensures that the response level remains constant, enhancing precision control across operational conditions.

Mitsubishi FREQROL FR-A800 Plus-Precision Control Solutions for Automated Warehouses

In automated warehousing, precision control is crucial for the smooth functioning of logistics and transportation systems. To meet this demand, Mitsubishi Electric introduced the FR-A800-AWH inverters, specifically designed for the unique needs of automated warehousing. These inverters specialize in dual feedback control, full-closed control, and seamless integration with diverse distance sensors.

Full-Closed Control for Logistics and Transportation Equipment

The FR-A800-AWH inverters feature an advanced full closed control function tailored for logistics and transportation applications. This function is designed to operate logistics/transport equipment with distance meters and the host controller. The logistics/transport equipment moves while the position loop is meticulously compensated by integrating the feedback of the position detected by the distance meter. This ensures precise and reliable control, contributing to the overall efficiency of automated warehousing operations.

Dual Feedback Control for Enhanced Stability

Recognizing the challenges associated with fluctuating values measured by distance meters, the FR-A800-AWH inverters incorporate dual feedback control. This innovative feature suppresses changes in the distance meter feedback used for position control. Particularly valuable in situations where distance meter values may be unstable, dual feedback control ensures stability in operations, preventing potential disruptions and optimizing the overall performance of logistics and transportation systems.

Support for Nine Types of Distance Sensors

The versatility of the FR-A800-AWH inverters is further emphasized by their compatibility with nine types of distance sensors. This broad range of sensor support allows for flexibility in system design, catering to the specific needs of different automated warehousing setups. Whether using ultrasonic, laser, or other distance sensors, the FR-A800-AWH inverters provide a comprehensive solution for precise control in diverse logistics environments.

Optimizing Cost Efficiency in Logistics: Mitsubishi FREQROL FR Strategies for Fork Control

In logistics and transportation, where operational efficiency is paramount, Mitsubishi Electric introduces innovative strategies to contribute to cost reduction.

Fork Control

The key to cost reduction lies in the strategic use of fork control, where the fork of logistics/transport equipment is synchronized with a set frequency initiated through communication. This approach ensures precision and consistency in fork movements, enhancing operational efficiency.

Three-Axis Control with Two Inverters

Traditionally, three inverters are employed to independently control the travel, lift, and fork axes. However, Mitsubishi’s FREQROL FR series introduces a cost-effective alternative. By leveraging advanced control capabilities, it is now possible to control all three axes using only two inverters. This streamlined approach significantly contributes to cost reduction without compromising on performance.

Versatility in Inverter Usage

To further enhance cost efficiency, Mitsubishi Electric provides flexibility in inverter usage. Users can employ either the inverter for the travel axis motor or the lift axis motor to control the fork axis motor. This adaptability allows for the optimal allocation of resources, ensuring a tailored and cost-effective solution for logistics and transportation applications.

Advanced Energy Saving Solutions through Precision Control

Mitsubishi Electric’s FREQROL FR-F800 is at the forefront of energy efficiency, providing advanced solutions for energy-saving requirements. It showcases outstanding drive performance, highlighting energy-saving features, motor output flexibility, and the standard inclusion of a 24 VDC control power input.

Energy Saving Functions

A core feature of the FR-F800 series is its ability to deliver energy savings through precision control, particularly in variable-torque loads like fans, pumps, and blowers. The consumed power of these loads is directly proportional to the cube of rotation speed. Leveraging inverter rotation speed control allows for fine-tuned air volume adjustment, contributing significantly to energy conservation.

Variable Rating Options

The FR-F800 series stands out with its innovative approach to energy efficiency. It offers selectable multiple ratings between two types: LD (Light Duty) and SLD (Superlight Duty). This adaptability allows users to match the inverter’s performance precisely with the load characteristics of fans and pumps, optimizing energy consumption and promoting efficient operation.

Full Utilization of Motor Capability

Maximizing the motor’s capability is at the forefront of energy-saving strategies with the FR-F800 series. The introduction of Optimum Excitation Control stands as a testament to this commitment. Continuously adjusting the excitation current to an optimum level ensures the highest motor efficiency. This becomes particularly significant at low-load torques, where Optimum Excitation Control can achieve up to 30% higher motor efficiency compared to conventional V/F control.

Standard 24 VDC Control Power Input

The FR-F800 series comes standard with a 24 VDC control power input to ensure smooth integration and reliable operations. This feature guarantees stable and efficient control operations, reducing the risk of disruptions and enhancing overall system reliability.

Starting Torque and Energy Efficiency in Mitsubishi FREQROL FR-F800

To optimize motor performance, Mitsubishi Electric introduces groundbreaking features in the FREQROL FR-F800 series.

Advanced Optimum Excitation Control

Advanced Optimum Excitation Control is a core element of the FREQROL FR-F800 series, which represents a technological leap forward. It facilitates the generation of significant starting torque without compromising motor efficiency, a notable advancement over conventional Optimum Excitation Control methodologies. This feature eliminates the need for intricate parameter adjustments, such as those related to acceleration/deceleration time and torque boost, ensuring a swift and efficient acceleration process.

Efficient Acceleration Process

One of the key strengths of Advanced Optimum Excitation Control lies in its ability to streamline the acceleration process. Unlike traditional methods requiring detailed parameter adjustments, the advanced control system simplifies the acceleration phase. This saves time and eliminates the complexities associated with parameter fine-tuning, making the implementation of Advanced Optimum Excitation Control straightforward and operationally efficient.

Enhanced Energy Saving Operation

Advanced Optimum Excitation Control extends its benefits to constant speed operation by maximizing motor efficiency. This feature ensures energy-saving operation, achieving the utmost improvement in motor efficiency during steady-state conditions. The optimization of energy consumption without compromising operational performance positions the FR-F800 series as an industry leader in the quest for superior energy efficiency.

Implementation Protocol

To harness the capabilities of Advanced Optimum Excitation Control within the FR-F800 series, users can initiate the feature by setting the energy-saving control selection parameter under Advanced Magnetic Flux Vector Control. This simple implementation guide guarantees the smooth integration of this advanced technology into industrial operations, enabling increased starting torque and improved energy savings.

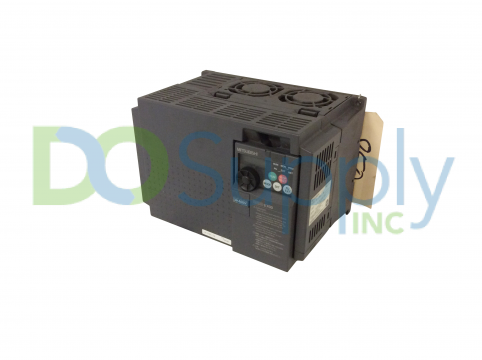

Power Regeneration Function

A key highlight of the FR-E800 inverters is the power regeneration function, which is an optional feature. During power driving, the motor propels the machine, and during regenerative driving, the machine turns the motor, essentially converting it into a generator. This process saves energy, as the generated power is returned to the power supply. Incorporating the multifunction regeneration converter, known as the FR-XC, as a common converter adds an extra layer of efficiency. In regenerative drive mode, the power returned from an inverter can be directed to another inverter, creating a cycle of energy reuse and conservation. This innovative approach optimizes energy utilization and contributes to overall sustainability efforts. It’s important to note that the power regeneration mode is exclusively available for the FR-E800-SCE, emphasizing the specialized capabilities of this model.

Final Thoughts

Conclusively, Mitsubishi Electric’s FREQROL FR series emerges as a catalyst for transformative change. This article has navigated through the diverse models within the series, unraveling a tapestry of innovation designed to meet the dynamic demands of modern industries.

From the FR-A800 Plus Series’s precision-enhancing features to the efficiency-optimized logistics and transportation strategies, Mitsubishi Electric showcases a relentless commitment to excellence. The FR-F800 series, with its energy-saving prowess and advanced Optimum Excitation Control, establishes a new benchmark for motor performance and operational efficiency. Integrating regenerative options further underscores Mitsubishi’s dedication to environmentally conscious practices. The FREQROL FR series is not merely a collection of drives but a testament to Mitsubishi Electric’s vision for a future where precision control coexists with sustainable and efficient industrial practices. By mastering the delicate balance between performance and environmental responsibility, Mitsubishi Electric paves the way for a brighter and more advanced era in industrial automation.
