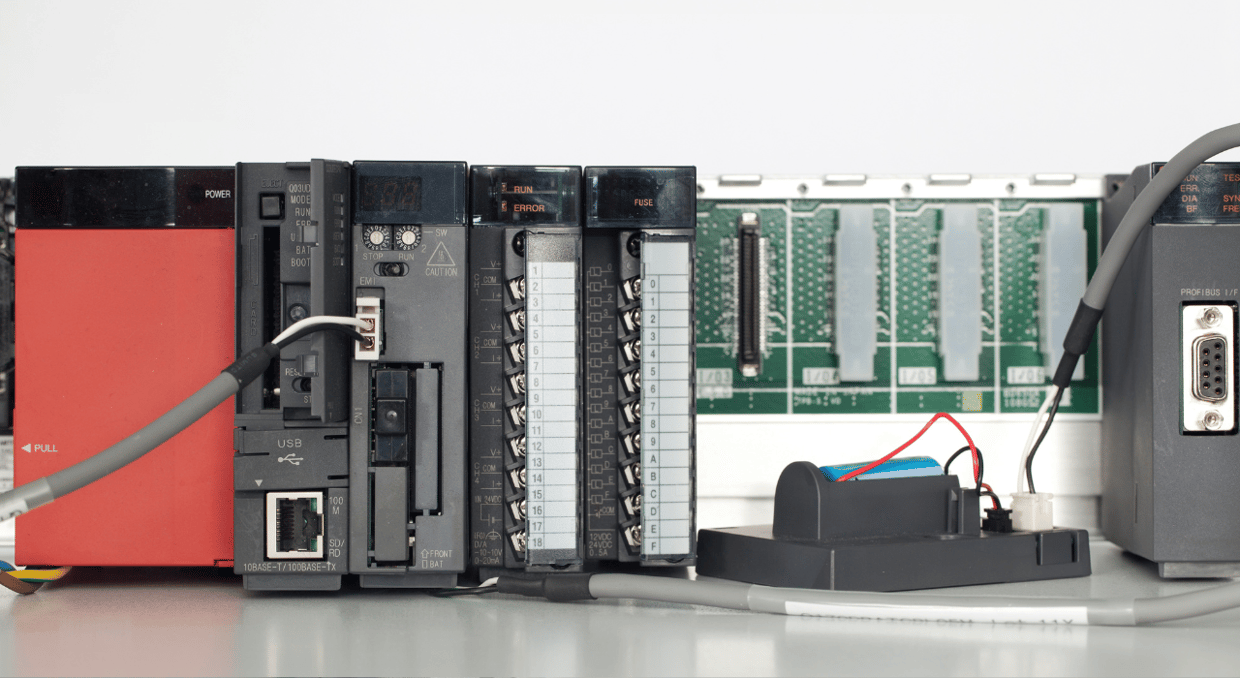

Streamlining Your Automation with Omron CPM2: A Selection Guide

Omron’s CPM2 series is a standout in the dynamic field of industrial automation. It offers various programmable logic controllers (PLCs) adaptable to industrial environments. These PLCs are specifically developed to optimize automation processes. This article is an in-depth guide to understanding the features and capabilities of the Omron CPM2 series modules. The CPM2 series enables professionals and system integrators to improve production lines and increase operational efficiency with its compact design and sophisticated programming choices. In this article, we will list down some of the modules and discuss their different features like programming capacity, operating temperature, power consumption, supply voltage, number of I/O connections, communication protocols, etc.

CPM2A-60CDR-A:

One of the components of the Omron CPM2 Series, the CPM2A-60CDR-A module, possesses several positive qualities. This product has been approved by esteemed regulatory organizations like UL, CSA, and CE, guaranteeing compliance with strict quality and safety guidelines. The RS-232C protocol facilitates its communication capabilities, making it possible for it to integrate seamlessly into a variety of industrial contexts. Interestingly, the CPM2A-60CDR-A is quite flexible, even without a display interface. It can accept up to three extension modules, which increases its usefulness and flexibility in responding to different operating demands. One inherent feature of its architecture is the battery backup capability, which emphasizes how resilient the device is to power outages and guarantees that activities continue. This PLC, which has a 2K word memory capacity, maximizes computing efficiency while handling significant programmed complexity. Its mounting choices provide versatility in deployment, encompassing both DIN rail and chassis configurations. The device’s 36 digital inputs and 24 relay outputs demonstrate its effectiveness in coordinating complex control procedures. The CPM2A-60CDR-A works best within the temperature range of 0°C-55°C. This PLC weighs only 2.3 pounds (1 kg) and operates between 100 and 240 VAC.

CPM2C-MAD11:

The CPM2C-MAD11 module from the Omron CPM2 Series is a device that focuses primarily on I/O functions. It consists of two input channels that can cater to different signals. The range input signals for voltage have been carefully designed to cover 0-5 volts, -10 -10 volts, 1-5 volts, and 0 -10 volts and guarantee efficient working with different input sources. Similarly, the input signal for current ranges covers various sensor and transducer designs, from 0-20 mA to 4-20 mA. The highest-rated input for voltage signals is ±15 V; however, the value for current signals is ±30 mA. In addition, the CPM2C-MAD11 has only one channel for output that replicates the input equivalents’ signal ranges for current and voltage. Smooth interface with external systems is possible due to output capabilities, which are precisely calibrated to accept signal ranges of 1 volts-5 volts, 0 volts -10 volts and -10 volts-10 volts for voltage signals, and 0-20 mA to 4-20 mA for other current signals. Moreover, great care is taken about the external output characteristics. To guarantee optimal performance across a range of load situations, the load resistance for voltage signals is fixed at a minimum of 1 kilo-ohm and a maximum of 600 ohms for current signals. The module consumes a power of around 3.5 watts.

CPM2A-20CDR:

One of the Omron CPM2 Series’ programmable controllers, the CPM2A-20CDR-A, is 5 x 5 x 4 inches and weighs 0.01 ounces, making it small and light enough to be easily handled and installed. It makes control procedures in industrial settings easier by providing 12 input and eight output connection points. The device may be scaled to meet different operating demands since an AC source can power it and expand to 120 I/O ports. Its ability to directly connect to serial devices and programming tools and its standard Peripheral and RS-232C interfaces streamlines configuration and maintenance processes. Removable terminals are included to improve installation and maintenance simplicity further. It also has synchronized pulse control, which makes it easier for input and control devices to coordinate for improved operational effectiveness. Its adaptability is enhanced by providing an auxiliary 24 VDC supply (for AC type only). Additionally, the device has relay or transistor outputs, guaranteeing interoperability with various output devices and offering system configuration freedom. Additionally, analog I/O extension modules offer flexibility to satisfy particular application needs.

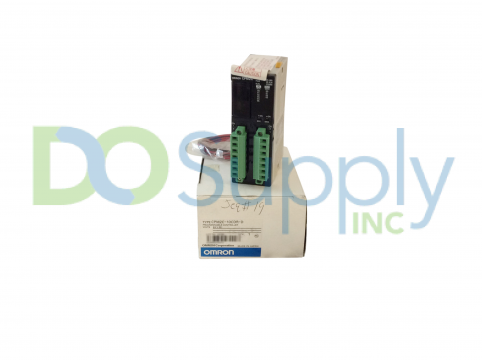

CPM2C-10CDR-D:

As a CPU Unit of the Omron CPM2 Series, the CPM2C-10CDR-D offers an extensive range of technical parameters that enable accurate and effective control procedures. It offers versatility in creating control systems with its 10 I/O ports divided into six inputs and four outputs. 24 VDC is the stated input type, which provides compatibility with widely used industrial power standards. Its input voltage runs between ±10% and ±15%, which provides robustness against the voltage changes common in industrial settings. At 4.7 kΩ, the input impedance guarantees the best possible signal integrity and dependability. Additionally, the device has a normal input current of 5 mA, which enhances system stability and energy economy. With a default value of 10 ms, the ON/OFF delay parameter allows for exact control timing based on application needs. Its range is 1 to 80 ms. Notably, the device has a power factor of (cosφ = 1) and 24 VDC (4 A/common) of average operating voltage, guaranteeing incorporation with different load types and operating situations. A stored program technique is used to carry out control, and the ladder diagram language—a programming standard for industrial automation—makes programming easier. With 14 basic programming instructions and 105 additional instructions, the unit provides an extensive collection of instructions that ensure programming flexibility for different Control activities.

CPM2A-30CDT1-D:

 The CPM2A-30CDT1-D module has 18 input points and around 12 output points—including a unique combination of 10 solid state and two pulse outputs. It allows for the accurate and efficient implementation of sophisticated control algorithms because of its 4000-word program capacity and 2000-word data memory. The pace at which logic is executed significantly varies from 0.26 µs to 0.64 µs, guaranteeing quick responses to control signals. Furthermore, the device can be expanded with up to 3 additional components, allowing flexibility to meet changing operating needs. With dimensions of 90x130x55 mm (HxWxD), this device is compact and takes up very little space in control cabinets, all while providing excellent performance. This module has a power supply ranging from 20.4 to 26.4 VDC that guarantees compatibility with most industrial power sources. The supply of control signals is made reliable and efficient via transistor (source type) technologies. Furthermore, the device has integrated features such as 1 Encoder input (20kHz) and 2 Pulse outputs (10kHz), augmenting its adaptability in various control applications. The CPM2A-30CDT1-D module works best within the temperature range of 0°C-55°C, showcasing its resistance in different climatic situations.

CPM2A-20CDT1-D:

The CPM2A-20CDT1-D module, a crucial element of the Omron CPM2 Series, has RS-232C connection capabilities. The CPM2A-20CDT1-D has a logic execution speed that varies between 0.3 µs and 0.65 µs. This allows for quick reaction times to control instructions, improving the system’s performance and efficiency. The system allows for adding up to 3 extensions, enabling it to adapt to changing operating needs and provide scalability. With dimensions of 90x130x55 mm (HxWxD), this device is compact and easily mounted on a chassis or DIN rail, making it simple to put in control cabinets. It allows easy integration with other devices and programming tools, making data interchange and system setup more efficient. The module has a programming capacity of 4000 words and a data memory capacity of 2000 words, allowing for the precise and reliable execution of sophisticated control algorithms. This module has a power supply ranging from 20.4 to 26.4 VDC, with a primary emphasis on 24 VDC, guaranteeing compatibility with conventional industrial power sources. Transistor (source type) approaches are used to assist output, ensuring reliable and efficient transmission of control signals. Moreover, the CPM2A-20CDT1-D is furnished with integrated features such as 1 Encoder input (20kHz) and 2 Pulse outputs (10kHz), which augment its adaptability in various control applications. This device has extensive control capabilities with 12 input points and eight output points, which include 2 Pulse and 6 Solid State outputs. It is a dependable solution for industrial automation requirements.

CPM2A-40CDR-A:

The CPM2A-40CDR-A module works best within the temperature range of 0°C-55°C. Featuring 24 input points and having the ability to get output from 16 points, this module has vast control functionalities. The module’s program capacity of 4k words allows for precise and efficient working on algorithms. The controller’s power supply can handle voltages between 85 and 264 VAC, guaranteeing compatibility with most industrial power sources. Output is achieved by using relay systems, which provide strong and dependable transmission of control signals. Furthermore, the CPM2A-40CDR-A has an integrated feature for 1 Encoder input (20kHz), augmenting its adaptability in various control applications. The CPM2A-40CDR-A has a logic execution speed that ranges from 0.26 µs to 0.64 µs. This allows quick reaction times to control instructions, improving system performance and throughput. The system allows for the addition of up to 3 expansions, providing the capacity to adjust and accommodate changing operating needs. With dimensions of 90x150x90 mm (HxWxD), this product is compact and may be easily installed in control cabinets.

CPM2C-PA201:

 This CPM2C-PA201 module, weighing just 0.551 lb (249.93 g), is designed to be easily handled and installed in control cabinets. The CPM2C-PA201 has a high output capacity of 24VDC, 600mA, and power consumption of 15W. This guarantees that connected devices get constant and stable power, allowing for the smooth operation of control processes in many industrial applications. The module enables the establishment of a secure attachment inside control panels. It is designed with a DIN Rail mounting type, providing stability and adaptability for various installation configurations. The CPM2C-PA201 has the potential to function well in industrial contexts with different power infrastructures because of its broad voltage range of 100 to 240 VAC. This ensures that it can adapt to various power conditions and operate flexibly and compatibly. The module’s termination design, which uses screw terminals, guarantees secure and reliable electrical connections, hence improving system dependability and safety. In addition, the CPM2C-PA201 has received clearance from regulatory authorities like CE, CSA, and UL, highlighting its adherence to rigorous quality and safety criteria.

CPM2A-60CDT1-D:

The CPM2A-60CDT1-D module is equipped with a configuration that includes 36 digital input points and 24 output points. These output points consist of 2 Pulse outputs and 22 Solid State outputs. With a programming capacity of 4000 words and an instant data storage capacity of 2000 Words, this system enables the smooth implementation of intricate control algorithms. The RS-232C interface enhances communication capabilities by smoothly integrating external devices and programming tools. This enables quick data interchange and system setup. The logic execution speed, which varies between 0.25 µs and 0.65 µs, guarantees quick reaction times to control instructions, improving system performance and throughput. The small device has dimensions of 90x195x90 mm (HxWxD), making it a space-saving option for control cabinet installations. This module has a power supply ranging from 20.4 to 26.4 VDC. Therefore, it is compatible with conventional industrial power sources. Transistor (source type) approaches are used to assist output, ensuring reliable and efficient transmission of control signals. Moreover, the CPM2A-60CDT1-D is furnished with integrated features such as 1 Encoder input (20kHz) and 2 Pulse outputs (10kHz), which augment its adaptability in various control applications. The device, weighing 2 lbs (907.2 g), is specifically engineered for portability and durability, guaranteeing effortless handling and long-lasting performance. Moreover, incorporating battery backup capability emphasizes its ability to withstand power disruptions, guaranteeing uninterrupted operations in crucial industrial settings.

Conclusion

In conclusion, the Omron CPM2 series provides a wide range of programmable logic controllers (PLCs) that are effectively produced to fulfill the varied requirements of contemporary production settings. This article examined many modules in the CPM2 series, analyzing their unique characteristics, abilities, and technical specifications. Each module, ranging from the CPM2A-60CDR-A to the CPM2A-60CDT1-D, showcases a combination of technical complexity and operational flexibility. These PLCs include strong communication protocols, such as RS-232C, which allows them to integrate into many industrial environments easily. Furthermore, their modular designs enable easy expansion and adaptability, making it possible to meet changing operating needs. The CPM2 series has exceptional computing efficiency and accuracy in terms of performance. These programmable logic controllers (PLCs) have a programming capacity ranging from 2K to 4K words and can instantly store up to 2000 words of data. This allows for the smooth execution of complex control algorithms. In addition, the range of their logic execution rates, which range from 0.25 µs to 0.65 µs, highlights their capability to provide quick answers to control commands, hence improving the overall system throughput and performance. The CPM2 modules not only possess exceptional technical skills, but they also prioritize the utmost dependability and durability in challenging industrial settings. Including battery backup capabilities and extensive working temperature ranges (0°C-55°C) highlights their durability against power interruptions and changes in climate, guaranteeing continuous operations essential for industrial efficiency.
