Common Applications for the PowerFlex 525 Across Various Industries

Efficiency and versatility are key components of industrial automation, which are incorporated into the design of the Allen-Bradley PowerFlex 525 AC Drive. The drive is equipped with features that deliver precise motor control while also conserving energy. As a result, the PowerFlex 525 drive plays a crucial role in many industrial operations by helping businesses save money and streamline their processes. In this review, we will cover the drive’s features and capabilities as well as explore its applications across various industries.

PowerFlex 525 AC Drive Overview

The Allen-Bradley PowerFlex 525 AC Drive is part of the PowerFlex 520 series from Rockwell Automation, designed for diverse industrial applications. Developed to provide advanced motor control and improved energy efficiency, the PowerFlex 525 quickly became a favorite among engineers and facility managers. Here is a quick look at just what they could do:

Safe Torque Off (STO)

The STO feature enables the drive to be safely switched off, preventing unintended operation of machinery and protecting both personnel and equipment. It meets stringent safety standards like ISO 13849-1 SIL2/PLd, making it suitable for safety-critical applications.

Programming and Parameters

The drive supports extensive programming capabilities, allowing for detailed customization and fine-tuning. Parameter groups include Basic Display, Terminal Block, Communications, Logic, Fault, and Diagnostic. This range allows for precise control tailored to specific operational needs.

Communication Options

With embedded communication options like DeviceNet, Dual-port EtherNet/IP, PROFIBUS DP-V1, and PROFINET, the PowerFlex 525 ensures seamless integration into various industrial networks. This compatibility with multiple protocols makes it adaptable for different control systems.

Performance Specifications

The PowerFlex 525 operates within a voltage tolerance range of -15% to +10% and a frequency tolerance of 47 to 63 Hz. It boasts an efficiency rating of 97.5%, multiple programmable stop modes (Ramp, Coast, DC-Brake, and Ramp to Stop), and overload capabilities (110% for 60 seconds, 150% for 3 seconds in Normal Duty, and 150% for 60 seconds, 180% for 3 seconds in Heavy Duty).

Environmental Specifications

The drive can operate at altitudes up to 4000 meters with derating, withstand temperatures from -20°C to +50°C without derating, or up to +70°C with an optional Control Module Fan kit. It handles relative humidity levels up to 95% non-condensing and complies with IEC 60068-2-27 for shock and IEC 60068-2-6:1995 for vibration.

Certifications

The PowerFlex 525 meets various international standards, including ISO 13849-1 SIL2/PLd for functional safety, ATEX and UKEX certifications for use in potentially explosive atmospheres, Lloyds Register Type Approval Certificate 12/10068(E1), and compliance with the European RoHS Directive 2011/65/EU.

Control and Motor Compatibility

The drive supports multiple control methods, such as Sinusoidal PWM, Volts/Hertz, Sensorless Vector Control, Economizer SVC motor control, and Closed-Loop Velocity Vector Control. It is compatible with various motor types, including Surface Mount, Interior Permanent Magnet Motors (with and without encoder), and Synchronous Reluctance Motors.

Motor Control Methods

The PowerFlex 525 features versatile and precise control for a wide range of motor types, ensuring optimal performance and adaptability to various operational needs:

• Sinusoidal Pulse Width Modulation (PWM): This method provides smooth and efficient motor control by varying the voltage and frequency supplied to the motor, resulting in precise speed and torque adjustments.
• Volts/Hertz (V/Hz) Control: This is a simple control method that maintains a steady ratio between voltage and frequency, suitable for applications where dynamic response is less critical.
• Sensorless Vector Control: This advanced technique optimizes motor performance by providing accurate torque control without needing feedback, making it ideal for high-precision and responsiveness applications.
• Economizer SVC Motor Control: Optimizes energy consumption by adjusting motor operation based on load conditions, promoting energy efficiency while maintaining performance.
• Closed Loop Velocity Vector Control: Uses feedback from an encoder to provide precise speed and position control, essential for applications requiring exact movement and positioning.

Compatibility with Different Motor Types

The PowerFlex 525 is compatible with various motor types, allowing it to be used in a broad range of applications:

• Surface-mount motors: These motors are commonly used in industrial applications due to their robust construction and reliability. The PowerFlex 525 provides precise control over them to enhance their performance and efficiency.
• Interior Permanent Magnet Motors (IPM): These motors offer high efficiency and power density. The PowerFlex 525 can control both encoder and non-encoder versions of IPM motors.
• Synchronous Reluctance Motors: Known for their efficiency and reliability, these motors benefit from the advanced control methods supported by the PowerFlex 525.

How It’s Used

While hearing the specs on paper is always informative, seeing how the PowerFlex 525 AC Drives are used in live applications is much more exciting.

Manufacturing

The PowerFlex 525 AC Drive plays a significant role in operating various machines and processes in the manufacturing industry. It is ideal for assembly lines, conveyor systems, and robotic arms where precise motor control is crucial.

Assembly Lines

The PowerFlex 525 controls the speed of conveyor belts on an automotive assembly line, synchronizing them with robotic welders and pick-and-place systems. This ensures parts are correctly positioned and processed, maintaining consistent product quality and improving production efficiency. The drive’s high starting torque is vital for applications requiring rapid acceleration, and variable speed control allows adjustments according to production demands, reducing energy consumption.

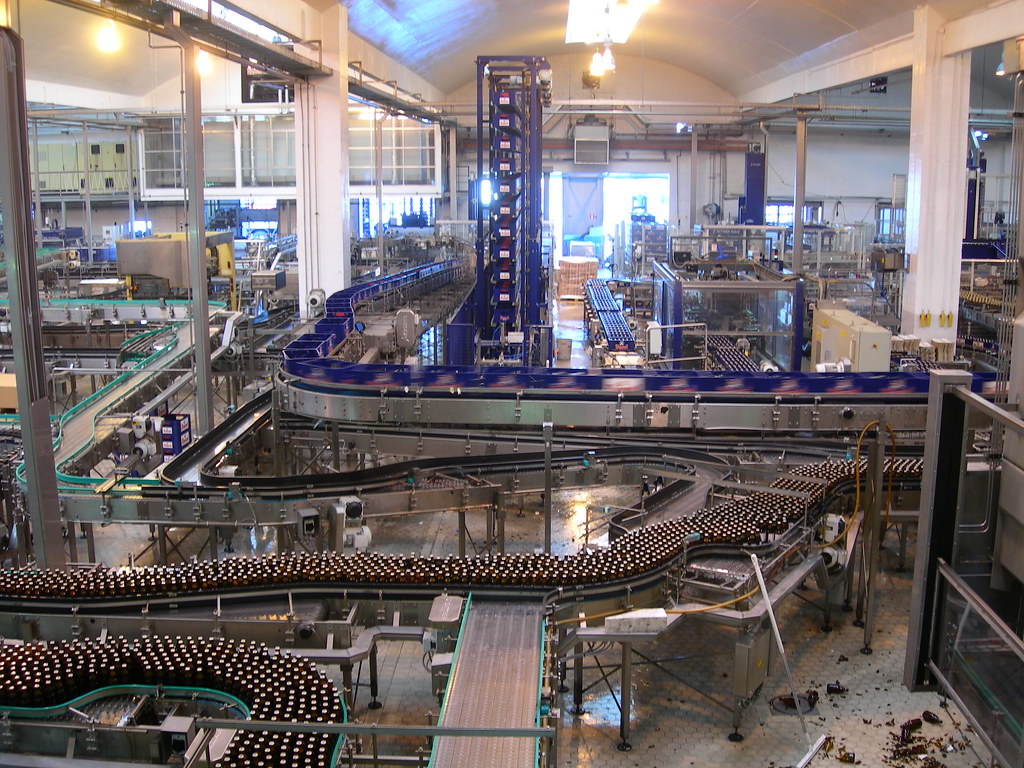

Conveyor Systems

The PowerFlex 525 is essential for conveyor systems in manufacturing plants. By setting drive parameters, operators can adjust conveyor speeds to match production stages, enhancing flexibility and responsiveness. Smooth operation reduces mechanical stress on equipment, extending machinery lifespan and minimizing downtime.

Robotic Arms

For robotic applications, the drive’s accurate torque control ensures robotic arms operate smoothly and precisely. This is crucial for tasks like welding, painting, and assembly, where precise movements are necessary to maintain high-quality standards.

Material Handling

The PowerFlex 525’s reliable motor control and energy efficiency benefit material handling systems like automated storage and retrieval systems (AS/RS).

Automated Storage and Retrieval Systems

In AS/RS, the drive controls the movement and positioning of cranes and shuttles within warehouses, ensuring precise and efficient operation vital for maintaining inventory accuracy and operational efficiency. For conveyor belts and sorting systems, integrating the PowerFlex 525 allows for faster, more accurate sorting and transportation of goods. The drive’s precise speed control ensures accurate sorting, reducing errors and increasing throughput.

High-Speed Sorting

In high-speed sorting applications, the PowerFlex 525 maintains precise speed control, ensuring accurate sorting and reducing the risk of errors. This is particularly beneficial in distribution centers where efficiency and accuracy are paramount.

Load Handling

The drive provides the necessary torque to handle heavy loads, improving the reliability and efficiency of material handling processes. This capability is crucial in environments with heavy and variable loads, such as logistics and warehousing.

Energy Savings

By optimizing motor performance, the PowerFlex 525 significantly reduces energy consumption and operational costs. Its advanced energy-saving features and efficient motor control methods make it a sustainable choice for material handling applications.

Water and Wastewater Treatment

Water and wastewater treatment processes rely heavily on precise control of pumps, aeration systems, and filtration to provide the highest water quality most energy-efficiently. The PowerFlex 525 AC Drive excels in these applications by providing stable performance under varying loads and conditions.

Pump Control

In wastewater treatment plants, the PowerFlex 525 controls the speed of pumps that move water through various treatment stages. The drive maintains optimal flow rates and pressure levels by adjusting pump speed based on real-time demand. This ensures efficient treatment processes and reduces energy consumption. For instance, during peak demand periods, the drive increases pump speed to handle higher loads, and during low demand periods, it slows the pumps to save energy.

Aeration Systems

Aeration is crucial in wastewater treatment, involving introducing oxygen to support the breakdown of organic matter by aerobic bacteria. The PowerFlex 525 regulates the speed of aeration blowers, optimizing oxygen levels for efficient biological treatment. By fine-tuning blower speeds, the drive maintains ideal oxygen concentration, which is essential for effective treatment. This precise control also minimizes energy use by adjusting the blower operation to match varying oxygen demand.

Filtration Processes

Filtration removes suspended solids and impurities in both water and wastewater treatment. The PowerFlex 525 controls the motors driving the filtration equipment, ensuring consistent and effective filtration. By regulating motor speed and torque, the drive maintains the efficiency and reliability of the filtration process, ensuring desired water quality and compliance with regulatory standards.

Energy Efficiency and Cost Savings

Energy efficiency is a significant concern in water and wastewater treatment plants. The PowerFlex 525’s energy-efficient design helps reduce operational costs by optimizing motor performance and minimizing energy use. Its advanced control algorithms ensure motors operate at their most efficient points, leading to substantial energy savings. Additionally, the drive’s ability to monitor and manage energy consumption provides operators with valuable insights for further optimization.

Operational Stability

The harsh operating conditions in water and wastewater treatment plants require equipment that can withstand varying loads and environmental factors. The PowerFlex 525’s robust construction and reliable performance ensure consistent operation even under challenging conditions. This reliability reduces downtime and maintenance costs, contributing to the overall efficiency and stability of the treatment process.

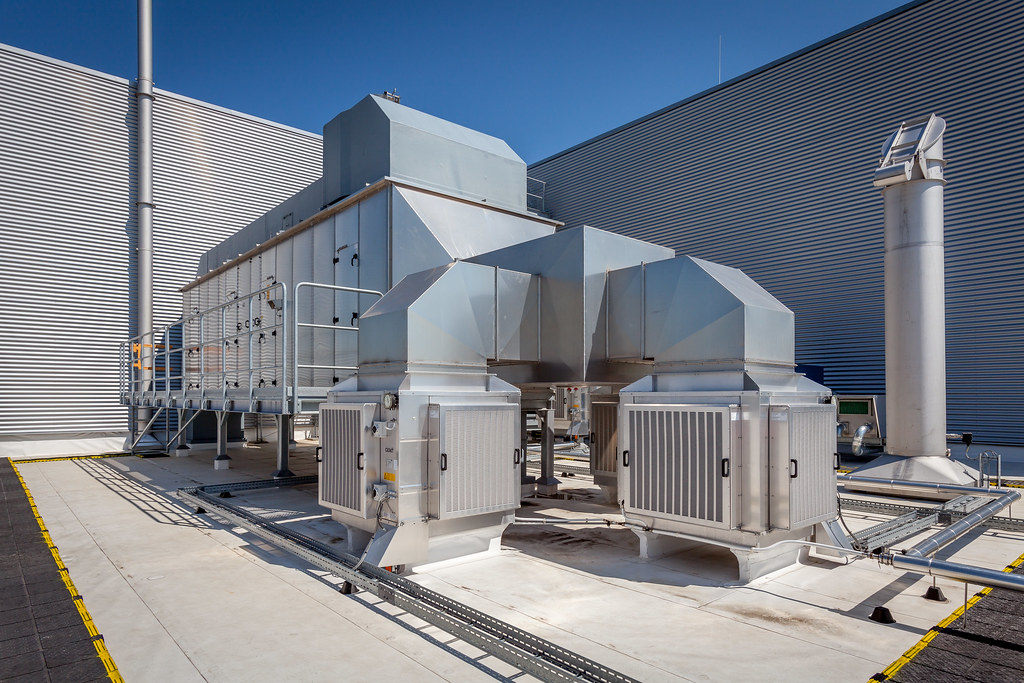

HVAC Systems

HVAC systems provide comfort and maintain energy efficiency within buildings. The PowerFlex 525 AC Drive is a critical component in HVAC systems due to its precise control of fans, compressors, and air handling units. This precision helps optimize energy use and maintain desired environmental conditions.

Fan Control

In HVAC systems, the PowerFlex 525 manages fan speeds in air-handling units, exhaust systems, and cooling towers. By adjusting fan speeds based on real-time demand, the drive ensures efficient air circulation and temperature control. For instance, during peak hours when the building is fully occupied, the system increases fan speed to enhance airflow. Conversely, during off-peak hours, it reduces fan speeds to save energy without compromising comfort.

Compressor Control

Compressors in HVAC systems cool and dehumidify air. The PowerFlex 525 carefully controls compressor motors, optimizing their operation to match cooling demand. This control is essential for maintaining consistent temperature and humidity levels while minimizing energy use. By modulating compressor speed, the drive helps avoid energy waste associated with constant-speed compressors, leading to significant cost savings.

Air Handling Units

Air handling units condition and circulate air. The PowerFlex 525 controls the motors’ driving fans and blowers within AHUs, ensuring proper air movement and temperature control. By fine-tuning motor speeds, the drive enhances indoor air quality and comfort.

Energy Optimization

Another key benefit of using the PowerFlex 525 in HVAC systems is energy optimization. The drive’s advanced energy-saving features and motor control methods help reduce overall energy consumption. For instance, the drive minimizes unnecessary energy use by adjusting motor speeds based on occupancy levels and environmental conditions. This not only lowers operational costs but also supports sustainability by reducing the building’s carbon footprint.

Operational Flexibility

The PowerFlex 525’s flexible programming and parameter settings allow HVAC systems to adapt quickly to varying demands. This flexibility is particularly useful in commercial buildings where occupancy and usage patterns change throughout the day. The drive can be programmed to respond dynamically to these changes, ensuring optimal performance and energy efficiency at all times.

Maintenance and Reliability

Regular maintenance is vital for the proper operation of HVAC systems. The PowerFlex 525’s diagnostic and monitoring features provide insights into system performance, helping operators identify potential issues before they become significant problems. This proactive maintenance approach reduces downtime and extends the lifespan of HVAC components.

Final Thoughts

Incredibly versatile and empowering, the Allen-Bradley PowerFlex 525 AC Drive adds a new level of efficiency and performance to various industrial applications. From manufacturing and material handling to water treatment and HVAC systems, it features advanced functionalities and a robust design perfect for optimizing operations and reducing costs.

In manufacturing, the PowerFlex 525 ensures precise control over assembly lines, conveyors, and robotic arms, improving productivity and product quality. In material handling, it provides reliable control of automated systems, enhancing the speed and accuracy of sorting and transporting goods. The drive’s ability to optimize pump and aeration system performance in water and wastewater treatment leads to significant energy savings and operational stability. In HVAC systems, it ensures efficient control of fans and compressors, optimizing energy use and maintaining comfortable environmental conditions.

All these features make the PowerFlex 525 versatile for programming, extensive for communication options, and energy-efficient in design across a variety of applications. This results in superb adaptability to many motor types and operational needs associated with different automation industries.

By choosing the PowerFlex 525 AC Drive, industries can achieve higher efficiency, better control, and substantial cost savings. Its robust features and reliable performance make it a smart investment for any operation to enhance its automation capabilities and overall productivity.
