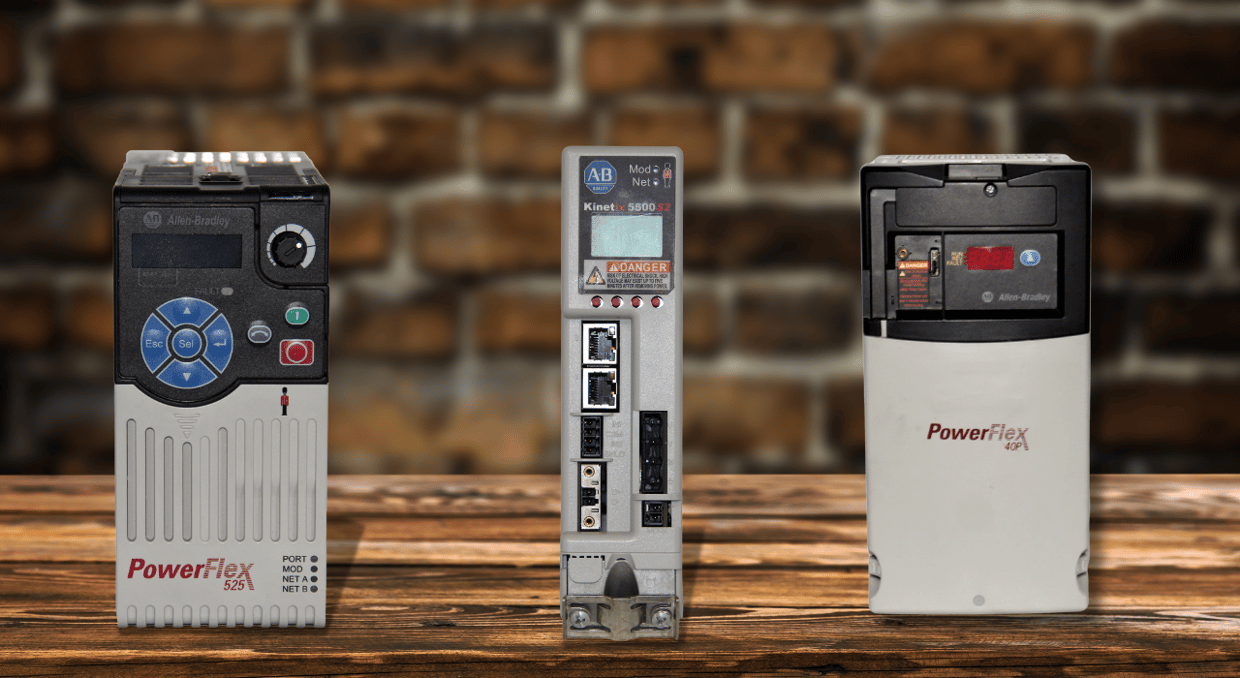

Understanding Allen-Bradley Drive Families by Power Range and Applications

Allen-Bradley, a prominent brand under Rockwell Automation, stands as a global leader in industrial automation and control technologies. Among its vast suite of offerings, variable frequency drives (VFDs) are a cornerstone product, enabling precise and efficient motor control across a multitude of industries. These drives are systematically organized into several families designed to support diverse operational requirements. Whether a facility demands basic motor control or a high-performance solution for complex applications, Allen-Bradley provides a robust selection that caters to low, medium, and high voltage needs. This article explores the full spectrum of Allen-Bradley drive systems, categorizing them by power range and application to help engineers, integrators, and plant managers choose the most suitable drive for their specific demands.

Categorizing Allen-Bradley Drives by Voltage and Application

Allen-Bradley drives are strategically grouped into three principal voltage categories to support a wide range of industrial automation needs. These include Low Voltage Drives, which range from 100 to 690 volts and are ideal for light to heavy-duty applications. Medium Voltage Drives, operating between 2.3 and 6.6 kV, serve higher power applications with moderately complex control requirements. Lastly, High Voltage Drives, which range from 2.3 to 11 kV and beyond, are designed for ultra-heavy-duty and large-scale operations. This voltage-based classification ensures that businesses across all sectors can find drive solutions that align with their energy, performance, and safety needs.

PowerFlex Low Voltage AC Drives:

The PowerFlex Low Voltage AC Drive families offer a spectrum of control options ranging from compact, cost-effective designs to high-performance, safety-integrated solutions. The PowerFlex 4-Class drives, including models such as the PowerFlex 4, 4M, 40, and 40P, are engineered for essential motor control tasks in space-constrained applications. With power ratings between 0.2 and 11 kW and voltage support from 100 to 600V, these drives are commonly used in pumps, fans, mixers, and conveyors. They are particularly favored by OEMs for their simple setup, intuitive user interface, and sensorless vector control capabilities.

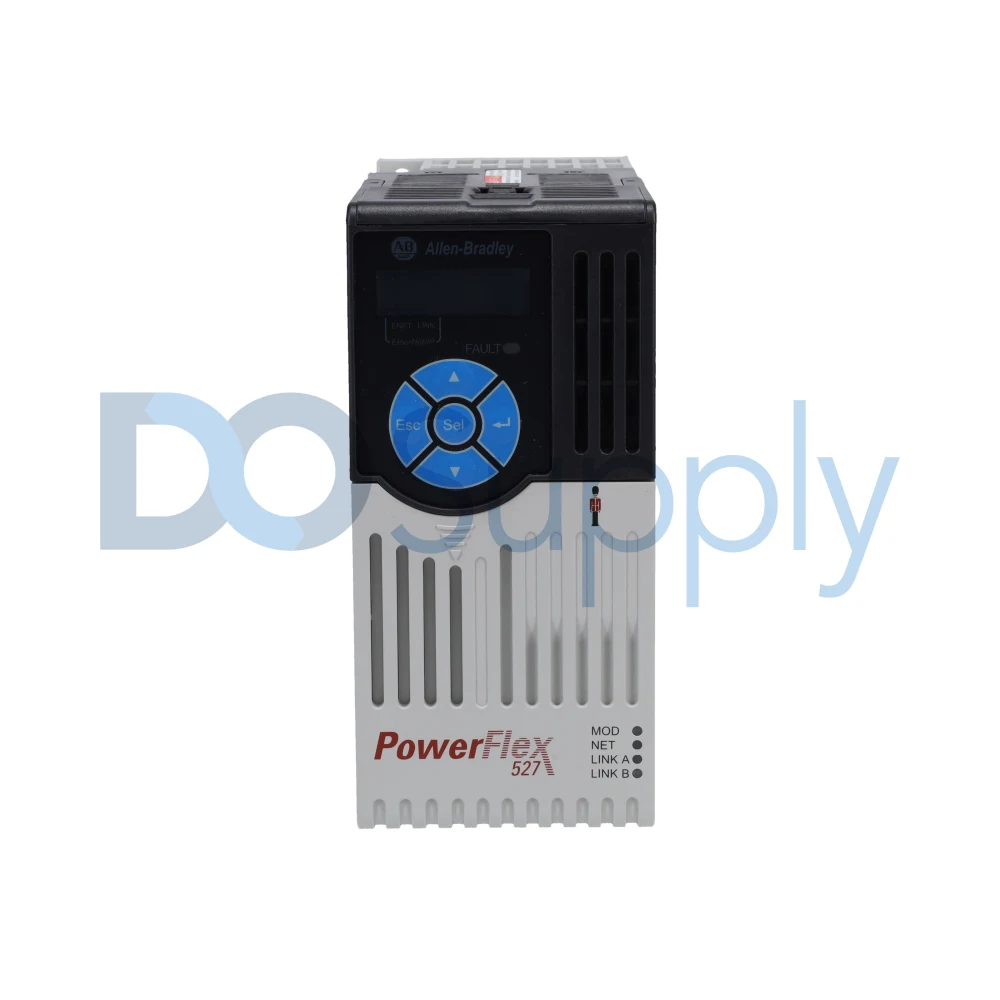

Moving up in capability, the PowerFlex 520-Series, which includes models like the 523, 525, and 527, supports power ratings from 0.4 to 22 kW. These drives are modular, flexible, and equipped with features such as built-in EtherNet/IP communication and integration with Logix controllers. The 520-Series is ideal for automotive, material handling, and HVAC industries, offering enhanced scalability and energy efficiency.

At the top end of the low voltage range is the PowerFlex 750-Series, encompassing models such as the 753, 755, 755T, and 755TS. These high-performance drives handle up to 1500 kW and are packed with features like Safe Torque-Off (STO), Safe Speed Monitoring, harmonic mitigation, regenerative braking, and TotalFORCE Technology. Designed for critical applications in oil and gas, mining, and water treatment, they offer advanced diagnostics and real-time control.

PowerFlex Medium Voltage Drives:

Medium voltage drives from Allen-Bradley provide an excellent balance between power and efficiency for facilities requiring more than low voltage drives can offer, without venturing into the complexities of high voltage systems. The PowerFlex 6000 Series is a prime example, supporting voltages from 2.3 to 11 kV and power ratings up to 10,000 horsepower. These drives are typically deployed in utility sectors and heavy industries for driving chillers, fans, blowers, and large pumps. They are known for their arc-resistant enclosures, space-saving designs, and easy integration into both new and retrofit applications.

Optimized for constant and variable torque loads, PowerFlex 6000 drives support industrial communication protocols like EtherNet/IP and PROFIBUS, facilitating ease of integration into existing control architectures. Their reliability and versatility make them favored in water treatment plants, pulp and paper facilities, and the oil and gas sector.

PowerFlex High Voltage Drives:

Allen-Bradley’s high-voltage drives are engineered for the most demanding industrial environments requiring extreme power and reliability. These drives belong to the upper tier of the PowerFlex Medium Voltage family and include the PowerFlex 6000T and PowerFlex 7000 Series. The PowerFlex 6000T operates within a voltage range of 2.3 to 11 kV and supports motor outputs up to 10,000 horsepower. It is commonly used in applications such as pumps, compressors, chillers, and conveyors in industries like mining, HVAC, and energy. Notably, the 6000T features TotalFORCE Technology for adaptive control, predictive diagnostics, and dynamic load response. It also supports permanent magnet motors up to 120 Hz, integrated secondary precharge for smoother starts, and a range of communication options, including EtherNet/IP and PROFIBUS. Additionally, CIP Security is integrated to enhance network protection.

The PowerFlex 7000 series pushes the limits further, offering support for voltage ranges between 2.4 and 6.6 kV and power ratings up to an impressive 25,400 horsepower. This series is tailor-made for extreme-duty applications such as crushers, rolling mills, and high-inertia fans in industries like marine, cement, and heavy manufacturing. The drives leverage Direct-to-Motor technology, eliminating the need for output transformers, thus simplifying system design. They also feature regenerative energy capabilities and advanced diagnostics for predictive maintenance, ensuring high uptime in mission-critical operations.

Kinetix Servo Drives: High-Speed Precision and Coordinated Motion

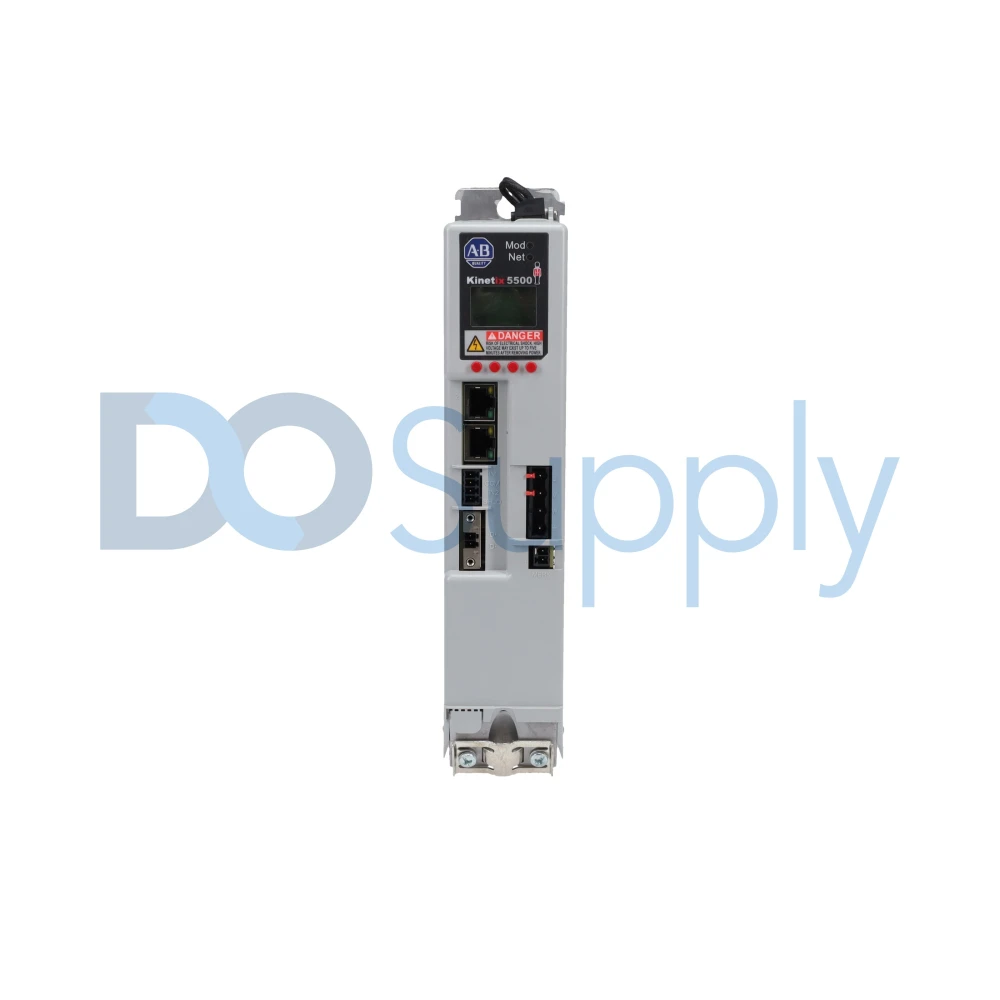

While PowerFlex drives are generally optimized for AC induction motor control, Allen-Bradley’s Kinetix Servo Drives cater to high-speed, high-precision motion control applications. The Kinetix 5500 and 5700 series are particularly prominent in sectors such as electronics, automotive, packaging, and medical devices. With power capacities reaching up to 22 kW, these servo drives are ideal for robotics, pick-and-place systems, and high-speed assembly lines.

Kinetix drives support integrated motion over EtherNet/IP, enabling synchronized control of multiple motion axes within a unified platform. They feature compact, scalable architectures and deliver exceptional dynamic performance. Their high-speed synchronization capabilities make them indispensable in applications requiring tight coordination, rapid acceleration, and deceleration with absolute positional accuracy. We also have a Kinetix 3 breakdown here.

Application-Based Drive Selection Guide

Allen-Bradley drives can be aligned with a wide array of industry applications based on performance requirements, safety needs, and power demands. For example, PowerFlex 523, 525, and 6000T are recommended for pumps and fans, offering features like PID control, energy savings, and soft start capabilities. In material handling and conveyor systems, models such as the PowerFlex 4M, 525, and 753 provide speed and torque control, along with safety features for manufacturing and logistics sectors.

The PowerFlex 755T and 7000 series are ideal for cranes and hoists due to their regenerative braking and torque-proving capabilities, making them suitable for ports and steel mills. The Kinetix 5700, with its motion synchronization and servo-specific control features, benefits high-precision motion applications most. In heavy-duty operations involving mills and crushers, the PowerFlex 7000 stands out for its rugged build and regenerative capabilities.

Safety and Compliance Built into Every Drive

Allen-Bradley integrates functional safety features across its drive portfolio to help users meet global safety standards while minimizing the need for external safety hardware. Features such as STO, Safe Speed Monitoring, and Integrated Safety over EtherNet/IP ensure that systems are compliant with standards like ISO 13849-1, IEC 61508, and IEC 62061. These safety functions enable safer machine operation, protect personnel, and reduce downtime through quicker safety state transitions and diagnostics.

The inclusion of these features not only supports regulatory compliance but also simplifies design and lowers the total cost of ownership by reducing wiring and hardware components. This makes Allen-Bradley drives particularly well-suited for industries where worker safety and operational integrity are paramount.

Energy Efficiency and Sustainability Across the Drives

Energy efficiency is a central focus of Allen-Bradley drive design. By leveraging variable speed control, regenerative braking, and harmonic mitigation, these drives significantly reduce energy consumption. Variable speed control allows motors to operate at the most efficient speed for a given load, avoiding unnecessary power usage. Regenerative braking enables the recovery and reuse of energy that would otherwise be lost as heat during deceleration, while harmonic mitigation improves power quality and reduces energy waste.

These features are especially valuable in industries seeking to lower their operational costs and meet sustainability goals. From HVAC systems to heavy industrial applications, Allen-Bradley drives help companies reduce their carbon footprint and comply with environmental regulations.

Final Thoughts

In Conclusion, Allen-Bradley drives provide a comprehensive and scalable solution for industrial motor control across low, medium, and high voltage applications. With drive families tailored for compact machines, high-speed servo systems, and ultra-high-power industrial operations, Rockwell Automation ensures that every industry can find a suitable match for its automation needs. Whether you are controlling a small conveyor or powering a big mill, Allen-Bradley drives offer the performance, reliability, and intelligence to drive industrial progress forward.
