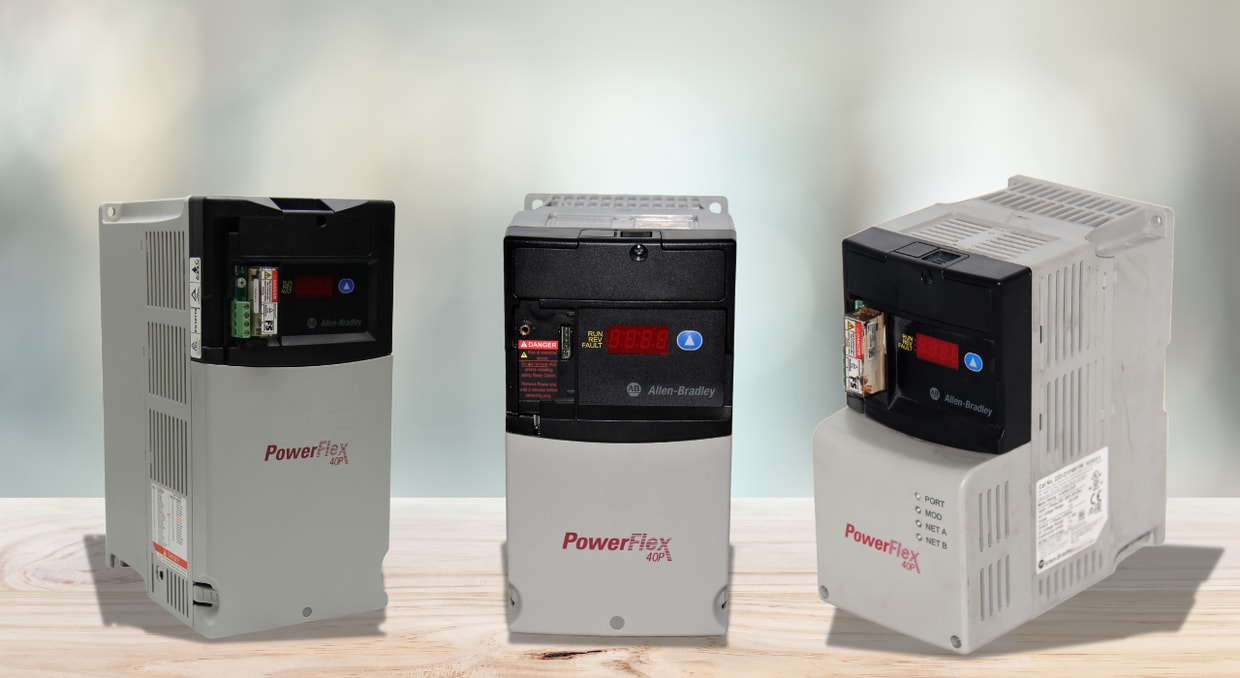

PowerFlex 40P as a Cost-Effective Drive for OEM Designs

When it comes to making a new product, a few design pillars need to be followed to make it successful. Some of which are that the product must be reliable, have a quality design, be cost-effective, and have good safety standards. So when building with already existing products, picking the right components is, obviously, essential to meet those requirements. In the case of using drives, picking one out with good headroom, small form factor, and just the right amount of features can help reduce the cost of an OEM design. This is where drives like the PowerFlex 40P series come into play. It offers competitive motion control while maintaining a small form factor and a lower price. But just what makes it good for OEM designs? Well, let’s show you.

Packaging and Mounting Options

Space is a premium in assemblies, especially for OEMs trying to fit drives into pre-designed enclosures, panel-mounted boxes, or machines with strict dimensional limits. The PowerFlex 40P addresses this head-on with a variety of flexible mounting options. Whether you’re panel-mounting with the standard IP20/NEMA Open frame, flange-mounting through a cabinet wall, or going even more compact with a plate drive, you’ve got options to trim down your enclosure footprint.

For tight builds, the 40P’s zero stacking capability is particularly useful. Drives can be mounted side-by-side with no spacing in ambient temperatures up to 40°C, allowing for significantly smaller control cabinets, meaning less material, labor, and cost. Suppose you need to bump up the environmental protection rating. NEMA 1/IP30 conduit box kits are available and easy to install, allowing the same drive to be used across different enclosures with minimal rework.

Even the DIN rail mounting support on B-frame drives adds flexibility for quick installation in compact or modular control layouts. This helps OEMs maintain consistency across products and reduces design time when adapting machines for different regions or customer specs.

Performance Without Overspending

Finding the right drive with the right features for the right price is an art form. You don’t want too little, exactly enough, or too much. This is where the 40P shines the most. It offers just enough motion capability to handle demanding applications without unnecessary complexity or the price tag of high-end servo systems.  The 40P delivers closed-loop vector control with encoder feedback, giving you ±0.3% speed regulation and responsive torque, even at low speeds. This precision level is often more than enough for tasks like indexing, controlled acceleration, or holding speed under variable loads. You get the benefits of motion control, such as smooth starts, consistent speed, and better torque response, all without needing a full motion controller or separate feedback hardware.

It also supports four independently programmable accel and decel profiles, up to 500 Hz output, and 200% overload capacity for 3 seconds. That kind of headroom means your machine can handle sudden load spikes or momentary stalls without needing a larger frame size “just in case.” Power-wise, you’re looking at 240, 480, and 600V options with HP ratings ranging from 0.5 to 15.

Finally, this drive supports sensorless vector control with autotune, which lets the drive adjust the motors’ characteristics on its own. This means tighter performance with minimal setup when you’re building batches of machines and need consistency out of the box.

I/O and Integration That Fits the Build

One of the hidden costs in OEM development is the time it takes to wire, configure, and ensure that the parts play nicely with the rest of the system. This is another place where the 40P helps to simplify things.

Out of the box, it offers a solid 5 fully programmable digital inputs, plus two semi-programmable ones for start and stop. This gives the user room to handle local control schemes, such as jogging, preset speeds, fault resets, or even logic-based step sequences using just the drive. This eliminates the need to dedicate I/O from a PLC or wire in additional relays for basic behavior.

You also get analog input support for both voltage and current and a scalable analog output, which is great for feedback to other drives or analog meters. It’s all DIP-switch configurable, including source/sink selection, making adapting the drive to different control schemes much easier. From a production standpoint, that means fewer wiring mistakes, quicker panel builds, and less rework.

When it comes to talking to other devices, the 40P covers its bases. It has built-in RS485/DSI for simple serial connections, but if you need to drop it into a networked system, you can choose from DeviceNet, EtherNet/IP, Profibus, or ControlNet modules. That modular approach lets OEMs standardize the drive across multiple product lines, regardless of the customer’s facility’s protocol.

Safety and Compliance Built Right In

OEMs are designed to pass inspection, meet standards, and protect the people working around them. That’s why built-in safety and regulatory compliance are more than just nice-to-haves; they’re critical parts of the design process. The PowerFlex 40P makes it easier to check those boxes without adding external hardware or complicating the system.

For starters, it supports Category 3 Safe-off functionality with the DriveGuard option, which can be added without reworking your main wiring layout. This allows you to meet safety standards like EN 954-1 while minimizing external contactors and hardwired interlocks. Not only does this save cost, but it also helps reduce potential points of failure in the system.

It also comes ready with global certifications baked in. The 40P is listed to UL508C and CSA and conforms to European directives, including the EMC Directive and Low Voltage Directive, making it suitable for both domestic and export machines. There are no last-minute design changes or surprises during testing.

Do you need to reduce noise or meet specific EMC requirements? External filters are available to meet EN55011 Class A and B, and there’s full support for EN61800-3. Whether you’re building for a clean industrial environment or something more demanding, the compliance support is already in place.

It all adds up to one less thing OEMs have to chase. The safety tools are there. The certifications are there. And if you ever do need to upgrade for a more rigorous application, the infrastructure is already in place to scale with minimal rework.

Final Thoughts

When designing equipment that needs to hit cost targets, fit inside a tight cabinet, and still withstand real-world industrial demands, your component choices matter more than ever. The PowerFlex 40P offers just the right balance of performance, flexibility, and price to make it a natural fit for OEMs building competitive machines.

It’s compact, easy to integrate, and capable enough to handle light positioning, responsive torque, and feedback-driven control, all without the overhead of servo drives or high-end motion platforms. With safety options, global compliance, and field-proven reliability, it checks the boxes that matter on the shop floor and in the quote.

If this drive checks all the boxes for you, feel free to check out our website, as we have many 40Ps ready to be shipped out on the same day. If you need something specific, call us; we can also help you with that. If the 40P does seem like too much drive for you, we have a comparison guide of the PowerFlex 40 vs the 40P here.
