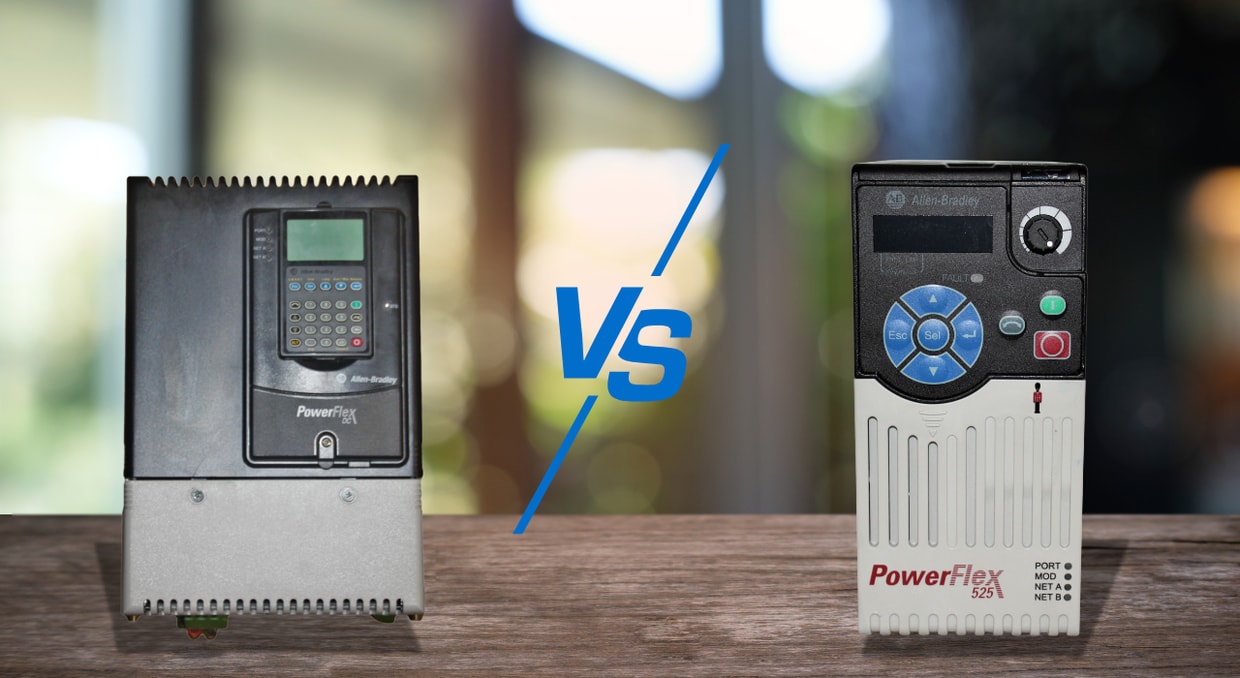

PowerFlex DC Drives vs. AC Drives: Which One Suits Your Needs

The global industry recognizes the pivotal role that electric drives, namely PowerFlex AC and DC drives, play in maximizing motor control and ensuring operational effectiveness. The need for these drives has increased significantly as new developments in industrial automation continue to emerge. PowerFlex DC and AC drives are necessary for controlling control signals, but they are not the same in a few important ways. To assist you in selecting the PowerFlex AC or DC drive that best meets your needs, this article examines the differences between the two drive types. It also covers the advantages, composition, operation, prices, and usability of each drive.

Comparison of PowerFlex AC vs DC Drives

Performance Qualities

Each PowerFlex AC and DC drive has distinct performance qualities that make them suitable for a variety of uses. With a maximum speed of 10,000 RPM and accurate 1% speed control, along with fast dynamic response, PowerFlex AC drives perform well. Because of how they are made, they also perform well in corrosive and moist environments. On the other hand, PowerFlex DC drives are 1% speed-regulated only and have a maximum speed of 2,500 RPM. Because of the risk of sparking, they are less appropriate for severe situations. On the other hand, DC drives offer superior speed adjustability and greater starting torque, making them perfect for heavy-duty applications such as conveyor and wiper systems.

Functionality

While PowerFlex DC drives run more quietly, PowerFlex AC drives usually produce more noise when operating. Batteries may be directly linked to PowerFlex DC drives, offering a straightforward power option. Conversely, the integration of certain parts and circuits is restricted with PowerFlex AC drives. Furthermore, for PowerFlex DC drives to operate correctly, the transformation voltage must be greater than 100V.

Cost Efficiency and ease of usage

PowerFlex AC drives include integrated inverter and converter components; therefore, they are usually more expensive than DC drives. AC drives offer greater longevity and reliability but require a larger initial investment. They may be employed in a wider range of applications due to their greater versatility and broader compatibility. Unlike their AC equivalents, DC drives are often less durable and have a narrower range of uses, though they are less costly.

Technological Build-Up

PowerFlex DC drives are designed to provide simple power circuit control and speed regulation, which simplifies management. PowerFlex AC drives, on the other hand, have a more intricate construction but are renowned for being durable and requiring less upkeep. Furthermore, because PowerFlex AC drives do not have commutators, they are lighter and less clunky.

Benefits of PowerFlex AC Drives

PowerFlex AC drives are a crucial part of contemporary industrial automation because they regulate motor speed by converting direct current (DC) into alternating current (AC). These drives, which include essential parts such as a rectifier unit, DC circuit, and inverter unit, have greatly increased production and stimulated innovation in a variety of sectors.

PowerFlex AC drives are specifically designed to control motor speed by adjusting the electrical supply switching frequency. This feature improves energy efficiency, lessens system stress, and streamlines process control. Pulse Width Modulation (PWM) for accurate speed control, sensorless vector control for high-torque performance, and regenerative braking for energy recovery are among the cutting-edge technologies used by PowerFlex AC drives. In addition, they include adaptive tuning algorithms that improve drive performance in real time, guaranteeing maximum adaptability and efficiency across various applications, and an in-built Ethernet/IPTM connection for smooth integration into networked systems.

 Benefits of PowerFlex DC Drives

PowerFlex DC drives serve as the primary speed-control mechanism for DC motors, making them indispensable for regulating speed. These drives deliver the required voltage and convert alternating current (AC) to direct current (DC). Because of PowerFlex DC drives’ sophisticated features, they are also used in a variety of industrial applications.

PowerFlex DC drives are well-known for their dependability, efficiency, and user-friendliness. They perform very well in harsh settings, including managing spindle drives, elevators, cranes, hoists, crushers, and paper manufacturing equipment. Field supply units, rectifier bridges, firing circuits, and speed control units are important parts of PowerFlex DC drives. Furthermore, PowerFlex DC drives incorporate state-of-the-art features such as energy recovery via regenerative braking, real-time monitoring via advanced diagnostics, optimal performance across varying load conditions via adaptive control algorithms, and improved system control and connectivity through seamless integration with Rockwell Automation’s Logix control platform.

Which PowerFlex drive to choose?

Because of its superior process control capabilities, ability to minimize mechanical stress in motor control applications, and ability to maximize equipment performance with electrical motors, PowerFlex AC drives have become incredibly popular. DC drives are still preferred in a few applications, such as spindle drives, excavators, crushers, machine tools, textile mills, elevators, and winders. The increasing inclination towards AC drives may be ascribed to their exceptional control capabilities and efficiency improvements, which enhance overall system performance and reliability across diverse industrial environments.

PowerFlex DC drives enable both regenerative and non-regenerative operations and offer sophisticated digital solutions for accurate control and regulation, comprehensive diagnostics, and simple programmability. They feature a fully integrated power module, a compact design, and a single control framework across all horsepower ranges. Improved connectivity is enabled by a common DPI interface that ensures interoperability with all PowerFlex DPI communication devices. These motors are ideal for a variety of applications, including coating, drawing, extrusion, and finishing. High inertia, high torque, shock loads, quick acceleration and deceleration, and continual regeneration are all skills they excel at. Because PowerFlex DC drives offer better performance and greater flexibility in challenging industrial environments, they are a great option for modernizing existing DC machines.

Ultimately, the demands of the equipment and operations dictate which drive is “best” for the task.

Example PowerFlex Drives

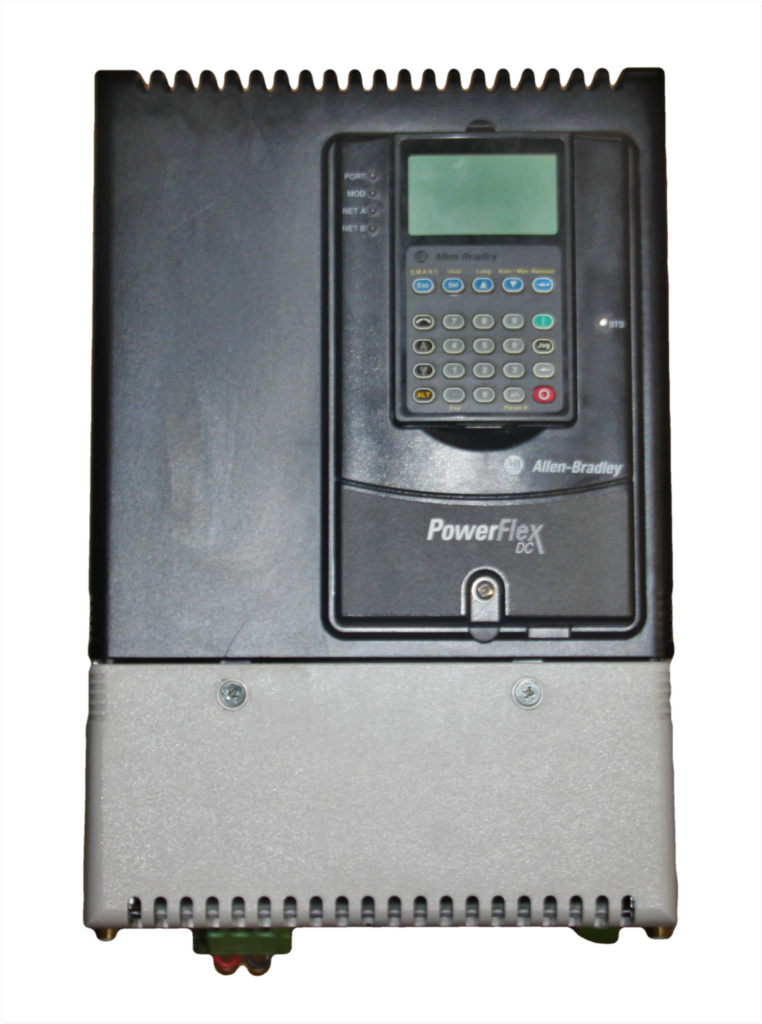

20P-RES-GEF-A0

The 20P-RES-GEF-A0 feedback module is a PowerFlex DC Drive module. Specifically engineered for digital control in DC applications, it guarantees accurate regulation of both current and speed, comprehensive diagnostics, and simple programmability. It performs exceptionally well in coating, extrusion, and finishing applications and is ideal for high-inertia, shock-load, and regenerative operations. For smooth integration with PowerFlex DPI communication devices, the module has a standard DPI interface, a unified control structure, and a compact form. Eight digital inputs, three analogue inputs, two analogue outputs, and more are included. Customizable extra inputs and outputs are also offered.

25B-A2P5N114

The PowerFlex 525 series AC drive, model number 25B-A2P5N114, runs on 240V AC single-phase input with a maximum current of 2.5A. It complies with EN61800-3, features an IP20 NEMA enclosure, and integrates an EMI filter for noise reduction. The drive is compatible with several control modes, such as permanent magnet motor control and sensorless vector control. In addition to built-in Ethernet and RS485/DSI communication connectors, it has one analogue output, seven digital inputs (six of which are programmable), and two analogue inputs. Easy DIN rail installation is a feature of the 25B-A2P5N114, and clearances are needed for appropriate temperature control and ventilation.

Final Thoughts

In conclusion, your choice between PowerFlex DC and AC drives depends on your specific operating requirements. Because of their superior energy efficiency, process control, and robustness, PowerFlex AC drives are ideal for a wide range of applications with varying speeds and environmental conditions. On the other hand, heavy-duty applications that require strong performance under challenging conditions, accurate speed control, and high torque are better suited to PowerFlex DC drives. DC motors offer higher starting torque and flexibility in specific applications, whereas AC drives offer sophisticated control capabilities and wide use. The best option ultimately comes down to the specifications of your application, taking operating demands, cost, and performance into account.

If you are still a bit undecided about whether DC is the answer, we have an article here explaining which use cases it excels at compared to AC drives. We also have a team of specialists on standby, willing to help with any questions you may have. Feel free to stop by our site, send an email, or call us to see which drive best fits your automation solution.
