Micro PLC comparison from Allen Bradley, Mitsubishi, Omron

A PROGRAMMABLE LOGIC CONTROLLER(PLC) is an industrial computer control system that continuously monitors the state of input devices and makes decisions based on a custom program to control the state of output devices. This control system can significantly enhance almost any production line, machine function, or process. However, the biggest benefit of using a PLC is changing and replicating the operation or process while collecting and communicating vital information. A PLC, or programmable logic controller, is essentially a computer that only runs one program and will continuously run that same program repeatedly, like an infinite loop. On the other hand, a micro PLC is similar to a full-size PLC but usually has a smaller memory capacity and embedded inputs and outputs (I/O).

As there are several manufacturers of Micro PLCs, we will talk about the top three producers, Allen Bradley, Mitsubishi, and Omron, while considering their most common variants. This article will discuss their Origin and features, specifications, construction, and applications.

Features and Connectivity

The Allen-Bradley’s Micro800 Series is a great option for stand-alone industrial machines because of its affordability and adaptability. These controllers are incredibly flexible due to their diverse features designed for different applications. The compact design ensures Effective use of space, particularly in the Nano-sized footprint of the Micro820 models. The Micro820 models of these controllers can support up to 36 I/O points, making them well-suited for small-scale automation. One notable aspect is the presence of embedded smart capabilities, which include smart relay function blocks and allow for highly customizable applications. Intuitive programming and monitoring are made possible by the optional LCD and keypad interface, which improve the user experience. The Micro800 Series excels in communication options, featuring a USB programming port for seamless program download (adapter required) and an embedded Ethernet port, ensuring connectivity in networked environments. This adaptability extends to expansion capabilities, supporting plug-in modules for customization and scalability. Furthermore, adding a MicroSD slot improves overall functionality by facilitating data logging, recipe management, and program transfer. Performance-wise, the Micro800 Series offers high-speed counters and Pulse Train Outputs (PTO) for precise control. It is perfect for applications needing advanced control features because analog input/output options improve automation capabilities. Its robust design guarantees reliable performance even in the most demanding industrial environments, and its broad operating temperature range increases its suitability for various applications.

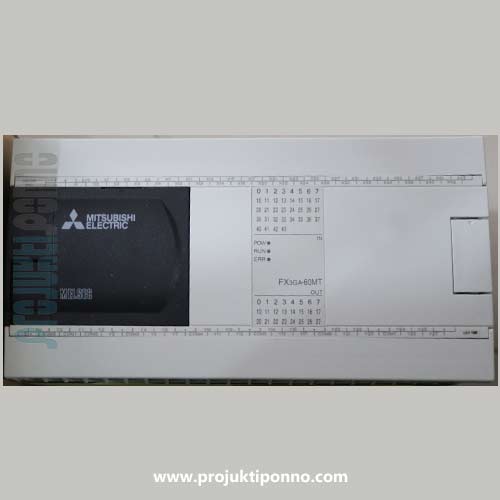

Mitsubishi’s FX Series PLCs stand out because of high efficiency and flexibility. This is primarily made possible by its dual system-bus architecture. This architecture improves overall performance by guaranteeing effective networking, communication, analog, and positioning system control. It proves to be a flexible option for various industrial needs, offering configurations tailored to suit different applications. Automation solutions can be fully automated when analog control, motion, and communication are integrated seamlessly. It is perfect for modular applications where maximizing available space is crucial due to its compact design. Connector-type I/O guarantees hassle-free setup and significantly reduces installation time, enabling quick and error-free wiring. Built-in features, such as integrated analog input/output options, enable precision control in various applications. Moreover, Ethernet connectivity enhances adaptability in networked industrial environments by facilitating smooth networking and communication. The FX Series PLC provides fast and effective performance in terms of processing speed. With quick instruction times for both fundamental and applied instructions, it achieves high-speed processing and guarantees prompt command execution. Thanks to these features, the Mitsubishi’s FX Series PLC is a dependable and effective option for industrial automation needs.

The Omron CP Series PLCs provide many features designed for intricate industrial automation applications. They can easily handle complex automation processes thanks to their ample program capacity, spanning 2K to 10K steps. The PLCs offer flexible I/O options with pre-programmed options and expansion units that enable customization for up to 160 I/O points. They can be used in various industrial applications due to their adaptability and seamless integration with various devices and sensors. High-speed counter functions enable efficient pulse handling and precise position control. Support for up to six input interrupts with quick response times ensures real-time event handling, increasing reliability in dynamic industrial environments. Pulse control capabilities enable outputs with trapezoidal or S-curve acceleration/deceleration, which are useful for motion control applications that demand smooth and accurate movement profiles. Adding two analog input channels with a 1/1000 resolution improves sensor integration and data precision. Serial communication option boards guarantee flexible protocol support and built-in Ethernet ports enable smooth communication. The PLCs prioritize data integrity by storing programs and parameters in flash memory and securing vital data with a battery backup during power outages. Additionally, these PLCs support 128 function block definitions with up to 256 instances, enabling modular and efficient programming for a wide range of automation tasks. These features collectively establish the Omron CP Series PLCs as reliable and versatile solutions for industrial automation needs.

PLC Design and Construction

The Allen-Bradley’s Micro800 Series PLCs exhibit a resilient and industrially optimized construction that aligns perfectly with the demands of automation. Their Compact and Durable architecture, characterized by a nano-sized footprint, ensures space-efficient integration within industrial environments. Remarkably, these compact PLCs are fortified with robust structural integrity, enabling them to endure the rigors of challenging industrial settings effectively.

Concurrently, the Micro800 Series PLCs provide an impeccably user-friendly Interface for seamless operation. These controllers feature optional LCD and keypad interfaces that facilitate effortless monitoring and configuration processes, ensuring user convenience. Furthermore, the PLCs provide an easily navigable programming environment that facilitates the development of efficient logic, further reinforcing their reputation for delivering dependable and user-friendly performance in industrial automation.

The Mitsubishi’s FX Series PLCs are renowned for their novel design and sturdy build, intended to perform exceptionally well in industrial environments. They represent the concept of All-in-One Design, in which small PLCs are equipped with integrated power supply, CPU, and I/O modules. Their clever design greatly minimizes the space needed for installation and makes them useful for applications with a shortage of room. The FX Series PLCs’ robustness is also highlighted in their design, ensuring consistent and dependable performance even in challenging industrial conditions. These PLCs have connector-type I/O for wiring and connectivity, simplifying wiring and reducing installation errors. The integrated Ethernet ports and additional communication interfaces enhance networking capabilities, facilitating seamless communication between PLCs and other interconnected devices within industrial automation setups.

Omron’s CP Series PLCs have been meticulously engineered to withstand the harshest industrial conditions. These PLCs have durable housing made of high-quality materials that effectively protect internal components from the dangers of dust, moisture, and mechanical stresses. Integrated cooling systems adeptly regulate operating temperatures, ensuring consistent and stable functionality. Because of their small size, these PLCs are easy to install into machinery and control panels, making them dependable options for industrial automation in complex settings.

Input Output and Memory Specifications

The Allen-Bradley’s Micro800 Series PLCs have many features to meet industrial automation needs. The Micro820 model offers a range of automation scales with its 36 I/O points, compared to the Micro810 model’s 12 I/O points. A notable feature of the Micro820’s analog I/O capabilities is its inclusion of a 1-channel analog output and a 4-channel non-isolated analog input that guarantees accuracy in applications that need analog signals, and these capabilities range from 0 to 10V. Industrial networks can be easily connected and integrated thanks to communication ports, which include Ethernet, USB, and serial (RS-232/RS-485) ports. The PLCs also support microSD cards, which improves data management and storage flexibility even more.

Conversely, Mitsubishi’s FX Series PLCs have many internal program memory that can be expanded with memory cassettes to accommodate more complex programming needs. Their I/O Control capabilities range from managing small-scale setups with 30 I/O points to handling larger configurations of up to 384 points using remote I/O configurations. Supporting various I/O modules, including digital, analog, and temperature inputs, these PLCs offer flexibility in accommodating diverse sensors and devices. Exceptional performance is highlighted by the rapid execution of basic and applied instructions, ensuring efficient program execution and precise control of complex operations.

Omron’s CP Series PLCs showcase a robust control method operating on the stored program principle, supporting ladder diagram and structured text (ST) languages for intuitive logic development. Their construction emphasizes durability and reliability, meeting stringent quality standards for consistent performance in challenging industrial environments. Extensive input capabilities, including 40 built-in input terminals expandable to 160 points, enhance data acquisition and processing efficiency. Pulse Control, featuring two adjustable pulse outputs, enables precise control of pulse signals in industrial processes. Additionally, including two analog input channels with a 0-10 V range allows seamless integration of analog sensors, ensuring accurate data for critical operations. Advanced communication options, including Ethernet, USB, and support for serial communication boards, facilitate seamless integration into industrial networks, enhancing data exchange efficiency. Ample Memory Capacity ranging from 2K to 10K steps, coupled with support for data registers, index registers, and trace memory, enhances storage and processing capabilities, showcasing the CP Series PLCs’ high-performance automation solutions for diverse industrial applications.

Applications

The Allen-Bradley’s Micro800 Series PLCs demonstrate extensive utility in industrial contexts. Specifically, they are pivotal in machine control, providing intricate precision for standalone machines. Their prowess extends to automation systems, particularly in small to medium-sized setups, offering cost-effective flexibility in industrial automation. These PLCs are instrumental in process control, meticulously monitoring parameters like temperature, pressure, and flow in diverse industrial processes. In material handling applications, they optimize conveyor systems, robotic arms, and sorting mechanisms, enhancing overall efficiency. Additionally, they contribute significantly to HVAC systems, ensuring optimal energy usage and environmental conditions. In the pump and motor control domain, these PLCs manage fluid management systems with precision. Moreover, they play a crucial role in intelligent lighting applications, promoting energy conservation practices within industrial environments.

The Mitsubishi’s FX Series PLCs serve as versatile solutions across industrial sectors. In manufacturing automation, they manage vital elements such as conveyor systems and robotic arms, ensuring high-quality production standards. Their precision shines in industrial process control, regulating variables like temperature and pressure and enhancing safety in chemical processes. In motion control, these PLCs oversee motors in CNC machines and packaging systems, ensuring accuracy and repeatability, and building automation benefits from their capabilities in controlling HVAC systems and lighting, enhancing energy efficiency in commercial spaces. In utilities and energy management, the PLCs efficiently monitor energy distribution and integrate renewable sources, contributing to sustainable energy practices. Moreover, in home automation, the power smart home applications integrate seamlessly with IoT devices for intelligent and automated household management.

Omron’s CP Series PLCs offer versatile applications in industrial automation. In manufacturing automation, they excel in controlling conveyors, robotic arms, and assembly lines, ensuring seamless and efficient production. Their precision is critical in motion control applications, offering accurate motor control in CNC machines, servos, and positioning systems. These PLCs manage complex industrial processes in process control, including temperature, pressure, and flow control, ensuring optimal operational parameters. They play a crucial role in material handling powering warehouse automation systems for sorting, packaging, and palletizing operations. In building automation, the CP Series PLCs integrate seamlessly into HVAC, lighting, and access control systems, enabling intelligent and energy-efficient building management. Their capabilities extend to Industrial IoT, enabling data collection, analysis, and remote monitoring for predictive maintenance and operational optimization. Additionally, they ensure energy efficiency through monitoring and controlling energy usage in industrial facilities, optimizing consumption for sustainability. These PLCs also contribute significantly to safety systems, ensuring emergency shutdowns, machine guarding, and compliance with safety standards, enhancing workplace safety. The Omron CP Series PLCs are preferred for industrial applications due to their versatility, reliability, and advanced functionalities, ensuring enhanced productivity and automation efficiency across diverse sectors.

In conclusion, comparing Allen-Bradley, Mitsubishi, and Omron’s Micro PLC offerings demonstrates cutting-edge developments and numerous applications in industrial automation. Modern manufacturing and industrial processes’ precision, efficiency, and dependability are ensured by these small yet powerful programmable logic controllers, which form their foundation. The exceptional efficiency and adaptability of the Allen-Bradley Micro800 Series PLCs set them apart. They are perfect for standalone industrial machines because of their small size, embedded intelligence, and user-friendly interface. These PLCs perform superbly in various applications, including HVAC and machine control, greatly enhancing energy efficiency and intelligent lighting options.

The Mitsubishi FX Series PLCs stand out due to their high efficiency and flexibility, driven by a dual system-bus architecture. This innovative design facilitates seamless integration of communication, analog control, and motion capabilities, providing comprehensive automation solutions. Their rapid processing speeds and precise control capabilities ensure they are reliable choices for applications ranging from manufacturing automation to home automation.

The Omron CP Series PLCs offer comprehensive features tailored for complex industrial automation tasks. Their generous program capacity, versatile I/O options, and advanced communication capabilities enable seamless integration into various devices and sensors. With a focus on precision, energy efficiency, and safety, these PLCs are indispensable in applications ranging from material handling and process control to building automation and Industrial IoT implementations.

Micro PLCs empower industries by improving production lines, streamlining processes, and guaranteeing safe and efficient operations. The ongoing innovation demonstrated by Allen-Bradley, Mitsubishi, and Omron in their Micro PLC solutions underscores their dedication to shaping the future of industrial automation. With technology advancing rapidly, these Micro PLCs are poised to remain central to the fourth industrial revolution, revolutionizing the global landscape of manufacturing and industrial processes. Their continuous evolution signifies a commitment to enhancing efficiency, precision, and safety in industrial operations, ensuring a future where automation is smarter, more adaptable, and seamlessly integrated into various industries worldwide.
