Evaluating Panasonic and Mitsubishi Safety PLC Solutions

Industrial machine safety is very important to machine builders and affects their day-to-day operations. There are many different types of hazardous areas in the industrial manufacturing sector. Machine safety is a must because it saves human lives and resources. An extensive examination of the features, dependability, and efficiency of safety programmable logic controller (PLC) solutions from Panasonic and Mitsubishi are made here to assess their suitability for guaranteeing industrial safety. Panasonic and Mitsubishi, well-known producers in the automation sector, each provide distinctive safety PLC solutions suited to various industrial requirements.

Panasonic Safety PLC Solutions

Panasonic aims for complete safety solutions, offering safety light curtains, muting sensors, safety switches, and safety PLC units. The individual components are compatible with each other and, therefore, easy to connect and configure. Whenever machinery or products are in motion, there is danger for people working in the area. With a huge and diversified product range of safety products, Panasonic supports customers to find their individual safety solutions to prevent accidents.

Panasonic SF4B- Advancing Industrial Safety with Precision and Versatility

The SF4B safety PLC redefines industrial automation with exceptional features and unmatched adaptability. It streamlines safety distance calculations by featuring a rapid and consistent 14ms response time regardless of beam channels, pitches, or units in series. Compliant with EN 61496-1/-2 standards and achieving Performance Level PLe per EN ISO 13849, it ensures uncompromised safety. Available in 10mm, 20mm, and 40mm beam pitches and various sensing heights, it eliminates dead zones, optimizing safety. Intelligent functions like switchable OSSD1 and OSSD2 outputs, integrated muting control, and fixed/floating blanking enhance adaptability in complex setups. The self-diagnostic system with status indicators allows real-time monitoring and proactive maintenance. Its extraneous light check avoidance (ELCA) function ensures interference-free operation, ideal for challenging environments like welding robots. Intuitive LED displays simplify setup, while accessories like connection cables, external safety control units, and specialized mounting brackets enhance flexibility. A cost-effective corner mirror option reduces wiring and mounting efforts, making it economically viable. In essence, the SF4B safety PLC embodies cutting-edge technology, compliance, and user-friendliness, making it an ideal choice for diverse industrial automation applications.

SF4B safety light curtains technology represents a significant leap in industrial intrusion detection technology. Featuring a reduced safety distance of 122 mm (4.803 in) and a 20 mm (0.787 in) beam pitch for hand protection setups, SF4B eliminates dead zones, ensuring enhanced workplace safety. With a 10 mm (0.394 in) beam pitch, the finger protection type introduces a revolutionary “ZERO” dead zone, enhancing precision in critical areas such as arm/foot protection. SF4B PLC integrates a fixed blanking function, enabling intelligent differentiation between persistent obstacles and human presence. Through muting control for each beam axis, it ensures smooth operation across diverse industrial applications. The PLC’s adaptability extends to its connectivity options, supporting up to three sets connected in series, with protective heights ranging from 230 to 1,910 mm (9.055 to 75.197 in) and an optional cable for series connection (up to 192 beam channels). SF4B reduces wiring needs, minimizing costs and interference potential. The series incorporates advanced features like the fixed blanking function, muting control, and a self-diagnostic system with a digital error indicator, ensuring uninterrupted operation and simplified troubleshooting. SF4B also includes an extraneous light check & avoid (ELCA) function, significantly reducing mutual interference and minimizing malfunctions due to extraneous light. SF4B simplifies setup through beam-axis alignment indicators and stability indicators. Its PNP/NPN polarity indicator ensures global compatibility. SF4B safety light curtains offer a clear, reliable, and user-friendly solution for industrial intrusion detection, making them indispensable in modern industrial automation setups.

Panasonic SF-C21 Safety Control Unit- Revolutionizing Industrial Safety Protocols

The SF-C21 Safety Control Unit from Panasonic Industry is a game-changing solution for industrial safety applications, consolidating the functions of four safety relay units into a compact design. Its dimensions of 97 mm in height and 45 mm in width, it fits easily into narrow spaces, addressing spatial constraints common in industrial setups. Notably, it simplifies complex wiring systems, reducing installation challenges. Its user-friendly interface allows effortless selection from eight preset logics, eliminating the need for advanced programming skills. Real-time monitoring is enabled through four auxiliary semiconductor outputs (PNP) and RS-485 communications (MODBUS RTU), facilitating integration with PLCs and HMIs. Furthermore, the SF-C21 integrates with the Configurator SF-C software, offering an intuitive platform for customizing safety parameters. This comprehensive approach ensures precise safety protocols, making the SF-C21 Safety Control Unit an indispensable tool in industrial automation, enhancing operational efficiency while guaranteeing optimal safety measures. Panasonic Industry’s SF-C Safety Control Unit is integral to diverse industrial sectors, enhancing safety and automation processes. In semiconductor production, it ensures precision and safety for personnel and equipment. Industrial setups with robots and safety fences benefit from its expertise in maintaining secure environments. The SF-C Safety Control Unit guarantees worker safety and process integrity in the regulated food packaging industry. Its adaptability, reliability, and efficient performance make it indispensable, providing advanced solutions where safety and precision are paramount.

Panasonic SF4D PLC – Innovative Excellence

The Compact & Robust Safety SF4D PLC by Panasonic represents a significant leap forward in industrial safety technology. Designed with precision and durability in mind, this safety light curtain offers a slew of advanced features tailored for diverse applications. The unit’s slim and robust body resists twisting, warping, and impact, ensuring longevity even in demanding environments. Internally, a meticulous redesign has resulted in a unit size reduction of over 40% compared to its predecessors while achieving superior performance. Mounting brackets have been innovatively crafted for rigidity and ease of handling, simplifying installation procedures. With increased emitter element power, a high-power optical system guarantees stable operation even over long distances while minimizing deviations among elements for enhanced accuracy. The redesigned emitter element layout and structure optimize light energy utilization, improving efficiency. Moreover, this safety light curtain boasts impressive liquid and dust resistance, complying with IP67, IP65 (IEC), and NEMA Type 13 standards. A digital indicator with a numeric display simplifies beam axis adjustment and preventive maintenance tasks, enhancing overall work efficiency. With a rapid response time of 10 ms or less for control outputs, the SF4D series contributes significantly to equipment size reduction. Its dead zone-less design simplifies safe distance calculations, making it ideal for complex layouts. The front access cable feature allows easy attachment and detachment, ensuring quick replacements. Additionally, users can select synchronization methods and cables tailored to specific applications, offering unmatched flexibility and customization options. Overall, the Compact & Robust Safety SF4D PLC stands as a testament to innovation, providing a cutting-edge solution for industrial safety needs.

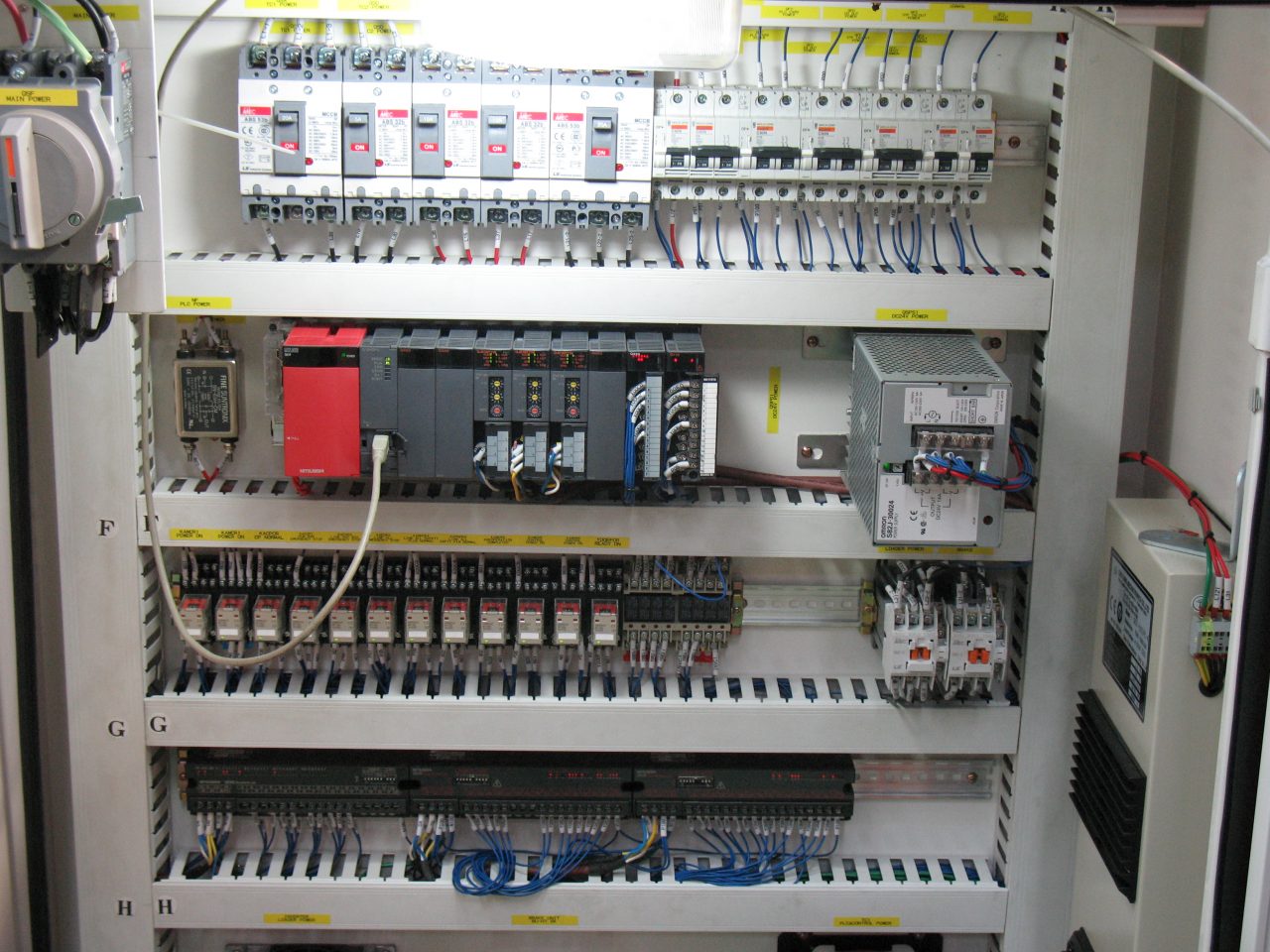

Mitsubishi’s Safety PLC Solutions

Mitsubishi’s MELSEC-WS Series is a pinnacle of precision and reliability in safety PLC solutions. Mitsubishi’s offering ensures unmatched safety performance in industrial environments. With an innovative fast shut-off function enabling a rapid 8 ms response time, the MELSEC-WS Series delivers quick and precise safety actions, making it indispensable for time-sensitive applications.

Mitsubishi MELSEC-WS Series Safety Controller

The MELSEC-WS Series Safety Controller, developed and manufactured by Mitsubishi, is a compact and advanced safety solution that adheres to rigorous standards such as EN ISO 13849-1 Category 4/PL e and IEC 61508 SIL 3, ensuring top-tier safety performance. Tailored for small- to medium-scale safety control systems, it offers impressive expandability with the capability to extend safety I/O points to 144 per CPU module. At the same time, a dedicated Setting and Monitoring Tool simplifies system configuration. The innovative fast shut-off function guarantees a rapid 8 ms response time, enhancing safety precision. It provides unparalleled flexibility with support for up to 12 safety input and I/O modules, four safety relay output modules, and two network modules. Its cost-effective safety communication networks, including Flexi Line and Flexi Link, streamline coordination among controllers, and connectivity with existing programmable controllers (CC-Link/Ethernet) simplifies setup and monitoring, ensuring quick identification of safety issues. Mitsubishi’s safety controller system’s Logic Editor provides an extensive feature set to improve productivity and simplify the management of safety procedures. Using intuitive labels and function blocks, logic creation is made significantly simpler by automatically labeling elements connected to the I/O terminal. The system enables careful tracking of internal module statuses and error histories, facilitating prompt error diagnosis and correction. The wiring diagrams for I/O modules are automatically created by the I/O matrix feature, making it easier to generate error diagnosis reports that can be printed or saved as PDF files. The system also offers a thorough matrix illustrating the connection between inputs and outputs. The ability to store the ON/OFF statuses of safety input and output signals that the safety controller processes is a useful feature of the Data Recorder function. The Setting and Monitoring Tool provides access to this data, which can help with analysis and troubleshooting. Connection settings and application logic can be easily stored and retrieved thanks to the system’s support for the smooth import and export of logic. This flexibility increases the system’s adaptability and makes it a strong option for sectors requiring accuracy and effectiveness in safety control procedures.

In the high-demanding environment of press machines, safety and precision are paramount. Mitsubishi’s MELSEC-WS Series stands as a stalwart guardian, ensuring the utmost safety of standalone devices like press machines. These small controllers are carefully designed with efficiency and safety in mind. Its adaptability, with readily extendable I/Os suited to the particular requirements of press machines, is one of its most notable qualities. Additionally, the MELSEC-WS Series improves coordination and response times by enabling smooth safety communication between CPUs. Its capacity to interface with a general programmable controller ensures a unified and integrated workflow by streamlining overall operations. Incorporating a fast shut-off function further exemplifies its dedication to rapid response, guaranteeing quick and precise actions in critical situations. In press machines, where precision and safety are non-negotiable, Mitsubishi’s MELSEC-WS Series is the ideal choice, delivering reliability and peace of mind to operators and manufacturers alike.

Mitsubishi MELSEC IQ-F Series- Safety Reinvented

The MELSEC iQ-F Series Safety PLC module redefines safety control for small-sized equipment, offering a sublime and compliant solution to meet international safety standards. With certifications such as EN ISO 13849-1 Category 4 PL e and IEC 61508 SIL 3, this module ensures top-tier safety performance. What sets it apart is its unparalleled simplicity. Unlike traditional systems, complex programming is no longer a barrier. Setting up safety control is remarkably straightforward –connecting the module to the CPU. This streamlined process enables the integration of both general and safety control within a single system, eliminating the need for intricate programming and making safety control more accessible than ever before.  There has never been an easier way to configure a safety control system. Choosing the appropriate program is as simple as flipping a rotary switch using the MELSEC iQ-F Series Safety PLC module. There is no need to create intricate control programs because each safety extension module is pre-configured with nine distinct programs. The safety control system is operational with minimal setup time and complexity by selecting the desired program using the rotary switch and activating the settings. Furthermore, the module’s design optimizes space and reduces wiring complexities. By connecting the Safety PLC modules with the CPU module, traditional wirings for safety control monitoring and logic between safety relays become obsolete. This innovative approach not only slashes wiring costs but also minimizes spatial requirements. The result is a safety control system that meets the highest international standards, efficiently saves resources, and enhances the overall safety landscape for small-sized equipment. The module offers real-time equipment status visualization by ensuring connectivity with external devices. Information can be distributed throughout the factory floor using a GOT (HMI) and built-in features of the FX5U/FX5UC/FX5UJ CPU modules. In addition to improving communication, this networked system enables thorough monitoring, which includes data collection and error tracking. Furthermore, through network connectivity, the safety status of the equipment can be remotely monitored from an office or other remote locations, guaranteeing unmatched convenience and control. Redefining efficiency in safety control systems, the MELSEC iQ-F Series Safety PLC module boasts advanced interconnectivity and intuitive configuration.

In the domain of packaging machinery, prioritizing both safety and efficiency is paramount. Integrating a Safety PLC module enhances the entire process’s safety protocols significantly. Picture a packaging machine equipped with this cutting-edge technology: a simple press of a safety emergency stop switch immediately halts all safety contactors, ensuring rapid emergency response. Precision sets this system apart; a strategically placed safety light curtain diligently monitors the area. Only the safety contactors linked to the affected processing part stop when a person is detected. This intelligent response ensures personnel safety and maintains the smooth functioning of the packaging operation. Actively monitoring the packaging process, the Safety PLC module integrates safety precautions into it easily. Its swift response and pinpoint accuracy signify the future of safety technology in packaging applications, guaranteeing operator security and uninterrupted production flow.

Conclusion

Conclusively, evaluating safety PLC solutions from industry leaders Panasonic and Mitsubishi highlights their crucial roles in enhancing industrial safety and efficiency. Panasonic’s offerings, such as the SF4B and SF-C21 series, exemplify precision and adaptability. With features like rapid response times, intelligent muting control, and simplified installation processes, Panasonic’s solutions are tailored for diverse industrial applications, ensuring heightened safety and streamlined operations. Similarly, Mitsubishi’s MELSEC-WS and MELSEC iQ-F Series showcase innovation and reliability in safety control. Mitsubishi’s solutions redefine safety protocols, providing rapid shut-off functions, intuitive configuration, and effortless integration capabilities, proving invaluable for time-sensitive applications. Whether safeguarding press machines, intricate packaging setups, or various industrial environments, these safety PLC solutions prioritize personnel safety and optimize production processes. As technology advances, these state-of-the-art solutions pave the way for a future where industrial safety is efficiently incorporated into modern manufacturing landscapes.
