The Future of Motor Starting: Insights into SMC Dialog Plus Technology

A motor is an electromechanical device designed to transform electrical energy into mechanical energy. Motors are widely used across various domains to serve diverse purposes, from energizing compact devices like electric razors and toys to propelling extensive industrial apparatus.

Motor Startup

There are several technological options for kicking off motor operation, such as soft starters like the Smart Motor Controller (SMC), variable frequency drives (VFDs), and contactors. Designed for different applications, each option has unique cost and performance characteristics. Conventional contactor methods include simple on/off operations and more complex designs like autotransformer starters, multi-speed starters, wye-delta starters, and similar setups. The traditional Direct On Line (DOL) method starts with a contactor and either a basic or an advanced overload relay. In contrast, VFD technology has undergone significant advancements over the past two decades, emerging as the preferred starting solution for applications requiring torque control or precise linear speed regulation. VFDs utilize sophisticated methodologies to regulate voltage and frequency, ensuring meticulous control throughout the motor’s startup, operation, and shutdown phases.

In this article, we will explore an insight into the SMC dialog Plus technology and how this advanced technology revolutionized motor starting.

SMC Dialog Plus Technology

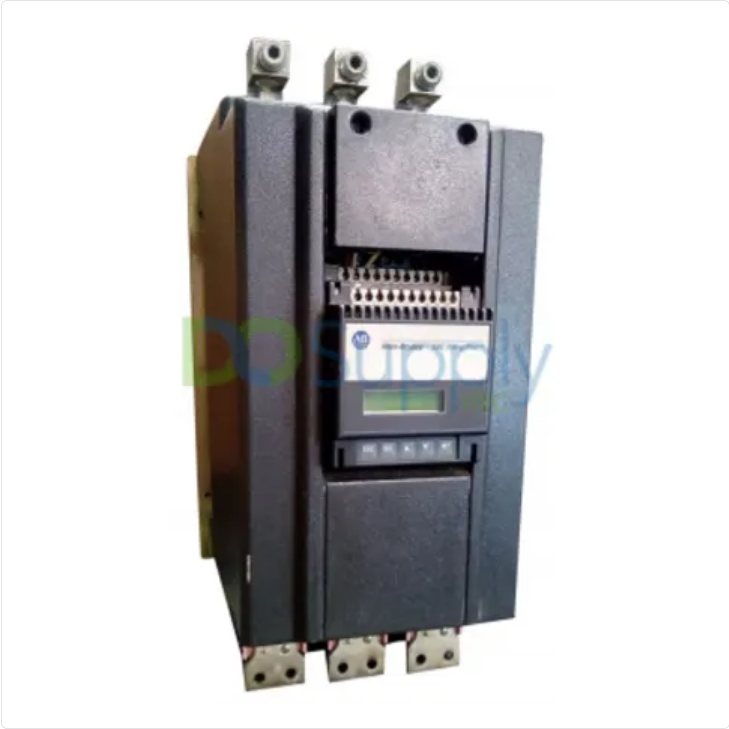

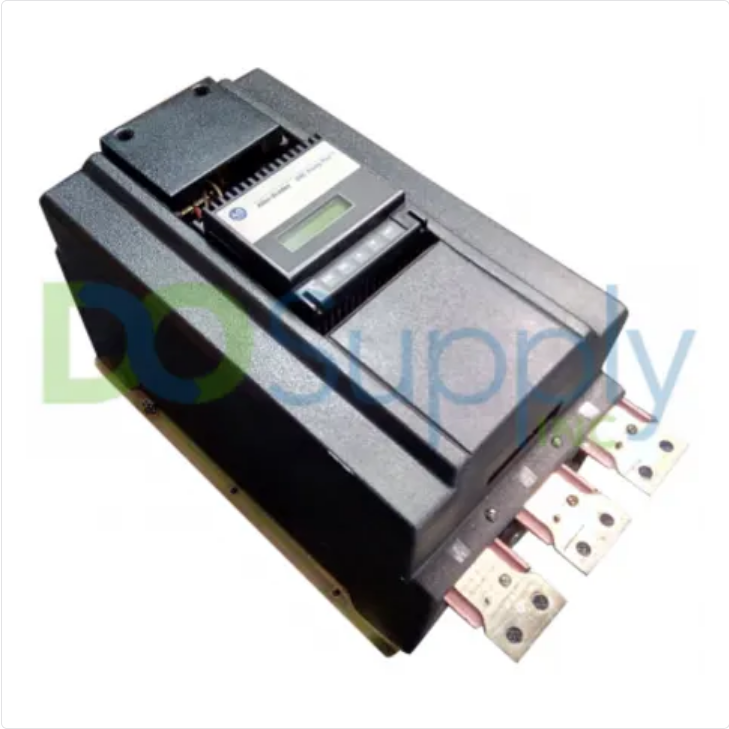

SMC Dialog Plus, Developed by Rockwell Automation, is a smart motor controller that revolutionizes how electric motors are started. Unlike conventional methods that use abrupt on/off switches, SMC Dialog Plus employs a sophisticated approach. It provides a soft start, gradually ramping up the motor’s speed, minimizing stress on the motor, and extending its lifespan.

Linear Acceleration Control in SMC Dialog Plus Technology

SMC Dialogue Plus technology includes a feature called linear acceleration control, which offers consistency and simplicity to motor starting procedures, revolutionizing them. This technique, which eliminates the need for an external tachometer, guarantees smooth and consistent acceleration and deceleration regardless of the kind or condition of the load because of a linear speed ramp. It’s easy to adjust the settings; the two main ones are to change the start mode from the default Soft Start to Linear Speed and to alter the ramp duration beyond the normal 10 seconds if needed. After the motor achieves its maximum speed, the linear acceleration control stops working until a stop instruction is given.

SMC Dialogue Plus technology’s unique algorithm optimizes energy consumption for both starting and stopping, independent of load circumstances. This is particularly advantageous for applications with varying load conditions, such as conveyor systems with fluctuating loads. SMC Dialog Plus technology streamlines motor starting procedures by implementing Linear Acceleration control. This eliminates the requirement for Dual Ramp mode and the associated complexities of adjusting settings for varying load conditions. The Linear Acceleration algorithm integrates with the current limit feature, enabling precise control over maximum current levels during both starting and stopping sequences. This approach simplifies the configuration process, rendering Linear Acceleration the most efficient and user-friendly starting method within the SMC Dialog Plus platform. Consequently, incorporating Linear Acceleration control results in optimal motor performance, enhanced energy efficiency, and remarkable versatility across a diverse range of applications.

Optimizing Energy Consumption with the Right Starting Approach

Analyzing energy consumption becomes very important when it comes to motor operation, especially in industrial setups. The Soft Start technique provided by SMC Dialogue Plus technology significantly decreases the total energy required to start loads. However, this method often results in residual torque due to natural motor characteristics. By incorporating the Pump Control option, SMC Dialog Plus technology enhances control, leading to further energy savings during startup. Moreover, the advanced Torque Control algorithm ensures precise control, facilitating smooth starts with minimal energy consumption. The technology lets the users choose between manual optimization or letting the controller take over, using its expertise. Users can significantly reduce energy consumption and align the start/stop profile with the load by selecting the appropriate starting method, maximizing savings.

Electronic Motor Overload Protection

In SMC Dialogue Plus technology, the Electronic Motor Overload Protection maintains motor safety while operating and is essential for motor starting procedures. During motor starting, particularly in high-demand applications or when dealing with heavy loads, there is a risk of excessive current flow that can lead to motor overheating and damage. By employing an advanced  algorithm, the technology actively monitors current levels and reacts swiftly to prevent overload conditions, thus safeguarding the motor from potential damage during startup. In addition, users may choose the class of trip for overload protection, which varies from class 10 to 30, according to the demands of the motor and the purpose for which it is designed. This ensures that the motor is adequately protected during normal operation and during the critical startup phase when current surges are most likely to occur. The technology can precisely replicate the motor’s operating temperature with thermal memory, offering an in-depth analysis of the thermal conditions. This information allows more precise management of motor heating, particularly during prolonged or repeated starting cycles. Electronic Motor Overload Protection within SMC Dialog Plus technology ensures that motor starting processes are not only efficient but also safe and reliable, ultimately enhancing the overall performance and longevity of the motor system.

Phase rebalance

Phase rebalance is a standard feature of the SMC Dialog Plus technology, enabling dynamic adjustment to compensate for voltage imbalances in the system. During motor starting, voltage imbalances across the three phases of the system can lead to uneven torque delivery and instability. Phase rebalance dynamically adjusts to compensate for these imbalances, ensuring that the motor receives a stable and balanced voltage supply. This promotes smoother motor starting, reducing the risk of voltage fluctuations that could affect motor performance. By achieving phase rebalance, the technology not only extends the motor lifespan but also ensures uninterrupted production operations. Complex setup procedures are not required for this feature because it is integrated into the controller.

Stall Protection and Jam Detection

The main features of SMC Dialogue Plus technology are Stall Protection and Jam Detection, which act as proactive safety measures during motor starting. In scenarios where stalling or jamming poses risks, particularly in high-torque applications or heavy load conditions, these functionalities offer enhanced protection to both the motor and connected systems. Stall Protection allows users to set a maximum delay time, ranging from 0 to 10 seconds, to safeguard against stalling. This delay starts after the set start time finishes. The controller will shut down after the delay time elapses in the event that the motor stalls during startup. According to the motor’s full load current rating, users can specify the degree of motor jam detection using the Jam Detection feature. To prevent unnecessary tripping, users can program a delay time, ranging from 0.0 to 10.0 seconds, before the controller responds to a motor jam condition. Crucially, jam detection becomes active only after the motor reaches full speed, ensuring efficient operation without false alarms. These functionalities work to prevent potential damage by promptly detecting stalls or jams, allowing corrective action to be taken during motor starting.

Underload and Undervoltage Protection

During motor starting, the system may experience variations in current and voltage levels, which can impact the motor’s performance and reliability. Underload Protection, offered by the SMC Dialog Plus technology, ensures that motor operation is halted upon detecting a decrease in current. This feature safeguards the motor from potential damage or inefficiencies that may arise due to insufficient load conditions. Users can program a trip delay time of 0 to 99 seconds and an adjustable underload trip setting, which spans from 0 to 99% of the motor’s full load current rating. Similar to this, Undervoltage Protection stops a motor from operating both during startup and regular operation if it detects a drop in the incoming line voltage. Users can reduce the possibility of false triggers and guarantee that the motor is not exposed to unstable voltage conditions during startup by setting the under-voltage trip delay time, which can be set between 0 and 99 seconds, and adjusting the under-voltage trip level as a percentage of the programmed line voltage, ranging from 0 to 99%.

SMB Smart Motor Braking

SMC Dialogue Plus technology offers improved motor control capabilities with the SMB Smart Motor Braking option. This feature is effectively incorporated into the compact design of the SMC Dialogue Plus controller to satisfy the needs of applications that demand quick motor deceleration. Eliminating the need for extra hardware like braking contactors, resistors, timers, and speed sensors, integrated braking control, and automatic zero-speed shut-off simplify installation and reduce equipment complexity. The SMB Smart Motor Braking feature applies an adjustable braking current to standard squirrel cage induction motors, allowing for precise braking through a microprocessor-based system. In order to achieve the best possible braking performance for a given application, users can adjust the braking intensity within a programmable range of 150% to 400% of full load current.

Overvoltage and Voltage Unbalance Protection

Overvoltage protection is a standout feature of SMC Dialog Plus technology, which is crucial during motor starting. It suspends motor operation if there’s a spike in incoming voltage. Users can freely set the overvoltage trip level from 0% to 99% as a percentage of the programmed line voltage. A configurable overvoltage trip delay time of 0 to 99 seconds can be set to reduce false activations. The line voltage must continuously exceed the overvoltage trip level during this predetermined delay period. Additionally, the technology includes Voltage Unbalance Protection, which keeps track of the three-phase supply voltage levels and how they relate to one another in rotation. When the user-defined trip level is reached by the calculated voltage unbalance, the motor stops operating. Effective mitigation of voltage variations can be ensured by programming the voltage unbalance trip level from 0 to 25% unbalance.

Advanced Control and Metering

With the help of SMC Dialogue Plus technology, users can set their own limits on the maximum number of starts that are allowed each hour, up to 99 starts. This capability serves to mitigate motor strain induced by frequent starting in a short period of time. The technology also provides comprehensive metering functionalities, including power monitoring parameters such as 3-phase current, power factor, 3-phase voltage, motor thermal capacity usage, power in kilowatts (kW), elapsed time, and power usage in kilowatt-hours (kWh). This comprehensive suite of metrics enables users to monitor and optimize motor performance with precision and accuracy.

Benefits

The SMC Dialog Plus provides many advantages that benefit real-world systems.

Reduced Wear and Tear

Soft starting significantly reduces the mechanical stress placed on the motor during startup, leading to less wear and tear on bearings, belts, and other components. This translates to lower maintenance costs and increased motor longevity. Let us consider a manufacturing facility where conveyor belts are powered by motors using traditional starting methods. Each time the motors start, there’s a surge of current that puts strain on the belts, bearings, and other components, leading to frequent maintenance and replacements. By implementing SMC Dialog Plus technology with soft starting capabilities, the mechanical stress during startup is significantly reduced. This results in less wear and tear on the equipment, leading to lower maintenance costs and increased longevity of the motors and associated components.

Improved Efficiency

By eliminating the surge of current that occurs with traditional starting methods, SMC Dialog Plus optimizes energy consumption. This not only benefits the environment but also reduces electricity bills. Consider a commercial building where HVAC systems are powered by motors using conventional starting methods. These systems typically consume a high amount of energy during startup due to the surge of current. By upgrading to SMC Dialog Plus technology, which eliminates this current surge through soft starting, energy consumption is optimized. This not only benefits the environment by reducing carbon emissions but also translates to substantial savings on electricity bills for the building owner.

Enhanced Protection

The technology offers a comprehensive suite of built-in protection features, including electronic overload protection, stall detection, and phase imbalance compensation. This safeguards the motor from damage caused by excessive current, overheating, or uneven power distribution. Imagine a water treatment plant where pumps are essential for delivering water to various locations. During operation, these pumps are susceptible to issues such as overload, stalls, and phase imbalances, which can lead to motor damage and system downtime. By integrating SMC Dialog Plus controllers with their comprehensive built-in protection features, including electronic overload protection, stall detection, and phase imbalance compensation, the motors powering the pumps are safeguarded against such issues. This ensures uninterrupted operation of the water treatment plant and extends the lifespan of the equipment.

Simplified Operation

SMC Dialog Plus boasts a user-friendly interface with programmable settings. This allows for easy customization of starting profiles and motor protection parameters to suit specific applications. Let us consider a food processing facility where conveyor belts are used to transport products along the production line. The operators need to customize the starting profiles of the motors powering these conveyor belts to accommodate different types of products and production requirements. With SMC Dialog Plus technology’s user-friendly interface and programmable settings, operators can easily customize the starting profiles and motor protection parameters as needed. This simplifies operation and ensures optimal performance of the conveyor belts throughout the production process.

Conclusion

In conclusion, the advent of SMC Dialog Plus technology marks a significant milestone in motor starting. This technology offers unparalleled efficiency, reliability, and ease of operation by incorporating advanced features such as soft starting, linear acceleration control, and comprehensive protection mechanisms. The ability to customize starting profiles, optimize energy consumption, and ensure robust protection against overload, stall, and phase imbalances makes SMC Dialog Plus an indispensable tool across various industries and applications. From manufacturing facilities to commercial buildings, from water treatment plants to food processing facilities, the impact of SMC Dialog Plus technology is profound, enhancing motor performance, longevity, and overall system efficiency. SMC Dialog Plus technology is a game-changer in pursuing energy efficiency, reliability, and operational simplicity. Its intuitive interface, customizable settings, and robust protection features empower users to optimize motor-driven systems while reducing maintenance costs and downtime. As we look to the future of motor starting, SMC Dialog Plus technology stands at the forefront, offering a glimpse into a world where efficiency, reliability, and sustainability converge to drive innovation and progress
