Troubleshooting the Kinetix 6200: Expert Tips for Maximizing Uptime

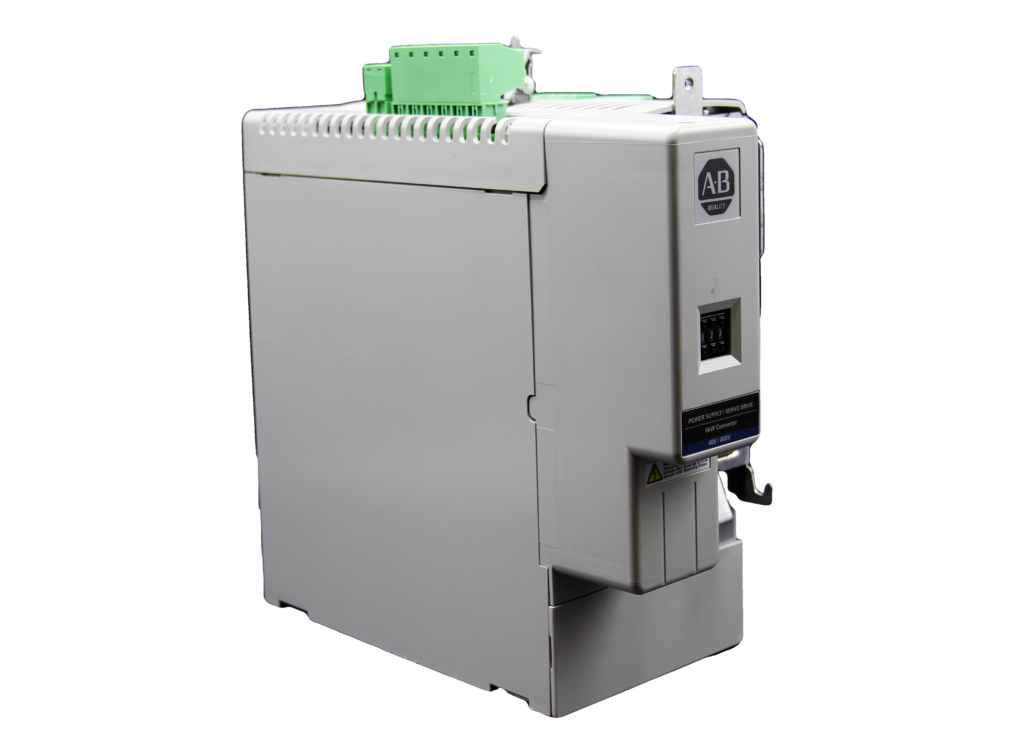

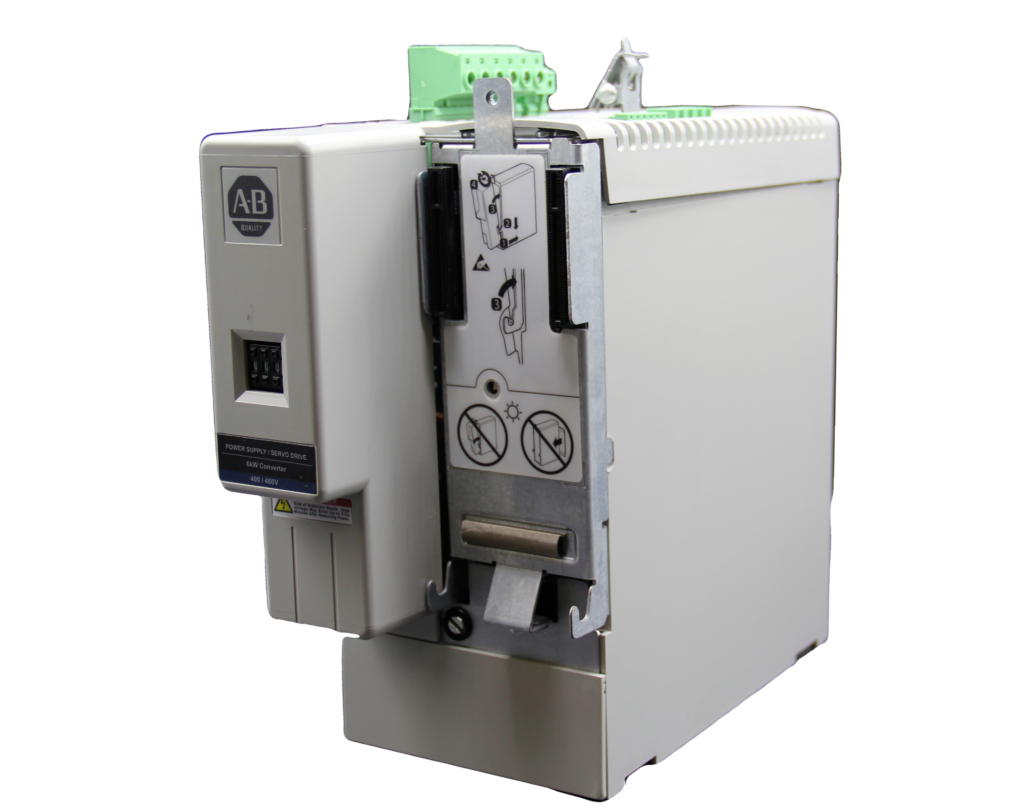

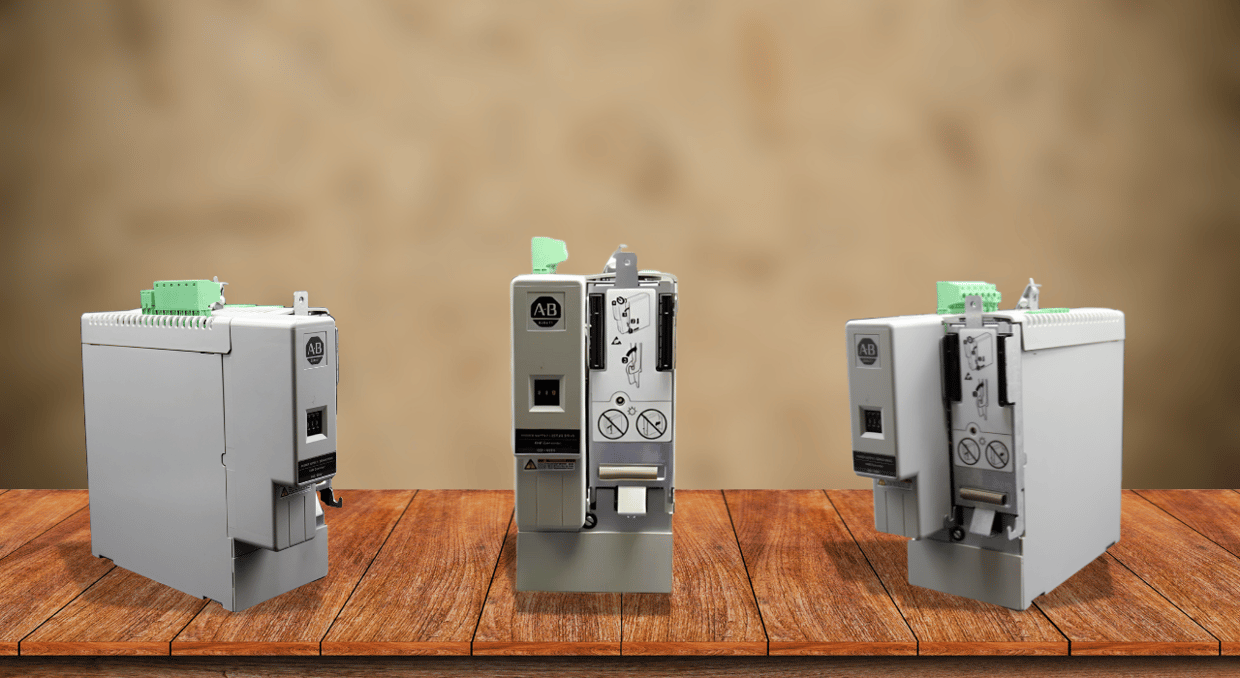

The Kinetix 6200 (Bulletin 2094) servo drive series from Rockwell Automation is a modular, multi-axis, high-performance motion control solution designed for complex automation applications. This drive series features integrated safety technologies, advanced diagnostics, scalability capabilities, and support for EtherNet/IP & SERCOS industrial communication protocols, which facilitates seamless connectivity with other Allen-Bradley motion control products.

Essentially, the Kinetix 6200 drive series provides precise and reliable servo control with real-time feedback, allowing for more efficient operations in high-speed, high-precision industrial automation applications, such as robotics, material handling, machine tools, and packaging. However, like any advanced motion control technology, Kinetix 6200 servo drives are prone to developing operational faults that require regular troubleshooting to avoid unscheduled downtime and sustain productivity. This guide offers expert insights on diagnosing and fixing common issues in these servo drives.

Common Kinetix 6200 Drive Problems

• Power-related faults are one of the most common causes of Kinetix 6200 drive failures. Unstable power supply, loose electrical connections, blown fuses, or defective power modules can all cause power-related faults such as electrical surges, brownouts, and voltage fluctuations. These faults can significantly impact Kinetix 6200 drive systems, potentially causing powering up issues, improper operation, damage to the connected equipment, and even complete drive failure. To mitigate power-related issues, one should check the incoming power levels to ensure they’re as recommended, inspect and tighten any loose electrical connections, and look for damaged components within the drives’ power modules and replace them accordingly.
• Overheating is another common issue with Kinetix 6200 servo drive systems, which is often a result of insufficient ventilation, high ambient temperatures, or continuous high-load operation. Blocked airflow from dust accumulation in cooling fans and heat sinks can cause thermal shutdowns, resulting in sporadic or complete drive failures. You can use a thermal camera to identify hot zones within the drive cabinet and ensure suitable cooling mechanisms are in place to avoid overheating-related drive failures.
• Mechanical problems might result in erratic motion or total drive inoperability. Misaligned couplings, worn-out/damaged bearings, or excessive backlash in the drivetrain can cause vibrations, increased motor stress, and drive/motor performance degradation. If neglected, mechanical issues may cause excessive current draws, resulting in various drive faults or overheating in connected motors. Regular inspection and precise alignment of mechanical components within Kinetix 6200 drives are critical in ensuring operational efficiency and system reliability.
• Electrical interference/noise is a common issue in high-frequency industrial automation applications, and it can compromise the reliability of Kinetix 6200 servo drive operations. Poor grounding, electromagnetic interference (EMI) from adjacent equipment, or inadequate shielding of motor feedback cables can cause signal disruptions, resulting in feedback errors, erratic servo behavior, or abrupt shutdowns. Proper cable routing, use of shielded motor feedback cables, and implementation of proper grounding techniques all help to reduce electrical noise-related interruptions in Kinetix 6200 drive systems.

Tools Required for Troubleshooting the Kinetix 6200

• To effectively troubleshoot a Kinetix 6200 servo drive, appropriate tools should be used. A multimeter,for example,is a basic diagnostic tool that can be used to check voltage levels, resistance, and continuity in the drive’s power and control circuits (i.e., checking for any open connections or short circuits). Using a multimeter to inspect for voltage imbalances, loose connections, or blown fuses, technicians can detect power-related faults that may impair the proper functioning of a Kinetix 6200 servo drive. In essence, continuity testing is very useful in confirming that the wiring between Kinetix 6200 drive modules, motors, feedback devices, and other drive components is faultless.
• An oscilloscope is an extremely useful diagnostic tool for evaluating electrical signals and identifying electrical noise, timing, or signal integrity issues in Kinetix 6200 servo drive systems. Intermittent errors produced by electrical interference are difficult to identify with conventional electrical testing equipment, but an oscilloscope allows engineers to visualize waveform distortions, voltage spikes, or anomalies in communication signals that may indicate grounding or shielding concerns.
• A thermal imaging camera can be used to detect overheating in a Kinetix 6200 servo drive system. High operating temperatures might be caused by restricted ventilation, excessive motor loads, or failed power components. Engineers can prevent unplanned downtime by obtaining thermal images of the drive’s enclosure, cooling fans, and power modules, and acting accordingly.

Steps for Troubleshooting the Kinetix 6200 Drive Series

1. Visual Assessment: Before proceeding with any electrical testing or software diagnostics, conduct a thorough visual assessment of the Kinetix 6200 servo drive system. Check for any evident physical damage, loose connections, or burnt drive components. Also, check the drive’s LED status indicators and ensure that they correspond to standard functioning patterns as specified by the manufacturer in the provided user manuals. Inspect for any dust, oil, or moisture contamination, which could cause drive malfunctioning or overheating. Ensure that all connectors are properly seated and the power and feedback cables are not frayed or broken.
2. Check the Status and Fault Codes: Reviewing the drive’s fault codes is one of the primary ways of diagnosing and troubleshooting Kinetix 6200 drive issues. Kinetix 6200 control modules display fault and status messages in four-character alphanumeric codes on the display panel, and users can scroll through the panel to display long text strings. Reference the displayed fault codes to the provided Rockwell Automation’s Kinetix 6200 documentation to determine their root causes as well as what corrective actions should be taken.

Clear persistent drive faults and monitor whether they reappear under the same operating conditions. Also, pay special attention to issues like overvoltage, overcurrent, encoder feedback loss, and temperature warnings, as these convey specific defects in the drive’s power components, motor connections, or thermal management.

Examples of Kinetix 6200 Fault Codes:

• FLT Sxx and FLT Mxx: These represent standard runtime anomalies
• INIT FLT Sxx & INIT FLT Mxx: Anomalies that disrupt normal drive functioning and occur during the initialization procedure
• NODE FLTxx: Abnormalities that prevent all Kinetix 6200 drives on the Bulletin 2094 power rail from operating normally
• NODE ALARM xx: Anomalies that impair the regular operation of all drives on the Bulletin 2094 power rail, but do not call for any action beyond reporting the alarm to the connected Allen-Bradley controller
• INHIBIT Sxx and INHIBIT Mxx: These fault codes represent conditions that inhibit regular drive operation and indicate that a specific drive module has been disabled
• ALARM Sxx & Mxx: These arebasically warnings of situations that may impact the regular operation of a Kinetix 6200 drive, but they do not necessitate any action beyond sending an alarm to the connected Allen-Bradley controller

Note: When a drive fault is identified, the Kinetix 6200 four-character status indicator will repeatedly scroll the display message until the fault code is cleared.

• Power Supply Verification: Using a digital multimeter, check the input power to the Kinetix 6200 drive. Check that the voltage at the power terminals matches the drive’s specified input rating (195 to 265 Volts AC or 324 to 528 Volts AC, depending on the model configuration). If the voltage is not within the permissible range, check the upstream circuit breakers, fuses, and wiring, and act accordingly. If you’re using a DC bus configuration, ensure that you have adequate grounding and DC link connections.
• Motor Power & Feedback Cable Inspection: Check the motor power cables and feedback (encoder or resolver) cables for evidence of wear or poor shielding. Use a continuity tester to check for cable breaks. If position feedback faults emerge, ensure that the encoder or resolver wiring has the correct pin configuration and that noise interference is reduced through adequate grounding. Also, check for appropriate cable termination on both the drive and motor ends.
• Load and Mechanical System Verification: If the electrical components look good, check the mechanical load applied to the motor being controlled by your Kinetix 6200 drive. Excessive torque demand, incorrect alignment of mechanical components, or mechanical binding can all result in overcurrent or stall faults. If such faults occur, disconnect the motor from the load and run it in unloaded mode to figure out if the problem is with the motor or the drive’s mechanical system.
• Drive Output Testing: Measure the output voltages and currents at your drive’s three-phase output connections using an oscilloscope or digital multimeter. Compare the measured readings to the expected sinusoidal waveforms. If the output voltages of your Kinetix 6200 drive are incorrect or imbalanced, it could indicate a problem with the power-stage IGBTs (Insulated Gate Bipolar Transistors), necessitating drive replacement or repair.
• Thermal and Environmental Checks: Use thermographic equipment, if available, to monitor the drive and cabinet temperatures. Ensure that the ambient temperature remains within the manufacturer’s recommended range. If your Kinetix 6200 drive is overheating, inspect the fan operation and airflow. Clean the filters and heat sinks to ensure appropriate cooling efficiency. If the drive is situated in a humid environment, consider installing enclosure dehumidifiers or upgrading cabinet sealing.
• Final Test and Verification: After making all the necessary repairs or adjustments, test your Kinetix 6200 drive under controlled conditions to ensure everything is working okay. Also, before applying a full load, perform a low-speed test run to ensure that the connected motor is operational.

Preventive Measures to Maximize Uptime

To ensure uninterrupted and optimal functioning of your Kinetix 6200 servo drives, it is absolutely critical to carry out routine preventive maintenance practices that minimize operational disruptions and increase the service life of drive components. These practices include:

• Regular Inspection and Cleaning: Dust and debris accumulation can reduce the efficiency of your drive’s cooling system, leading to overheating issues and sometimes complete drive failure. Regular cleaning of fans, heat sinks, and ventilation holes provides proper airflow and prevents thermal shutdowns.
• Scheduled Firmware and Software Updates: Periodic updating of drive firmware and software ensures compatibility with the latest automation technologies, and it also helps address potential vulnerabilities. Regularly check for and install firmware/software updates via recommended Rockwell Automation tools to increase the reliability of your Kinetix 6200 drive system.
• Secure and well-routed Cabling: Loose or damaged wiring in a Kinetix 6200 drive system can result in intermittent malfunctions and even drive failure. Regularly evaluate your cable integrity, ensure correct cable shielding, and route your motor feedback cables away from high-frequency electrical noise sources to help reduce electrical interference in the drive system.
• Motor and Load Condition Monitoring: Excessive motor loads, misalignment of mechanical components, or bearing wear can decrease drive efficiency and lead to premature component/drive failures. Carrying out regular vibration analysis, checking for excessive backlash, and ensuring sufficient bearing lubrication can guarantee enhanced system performance.
• Data Logging and Trend Analysis: Continuous logging and monitoring of the Kinetix 6200 drives’ operating parameters enables predictive maintenance, which helps reduce unplanned system downtime. In addition, identifying patterns in temperature changes, current draw, or vibration levels can help in detecting warning signs of probable failures, allowing for proactive actions before breakdowns occur.

Safety Considerations

It is important to consider the following safety precautions before you begin troubleshooting your Kinetix 6200 drive.

• After disconnecting the input power, capacitors on the DC bus may still retain hazardous voltages. As such, before working on your Kinetix 6200 drive, measure the DC bus voltage to ensure it is at a safe level, or allow the full-time interval specified in the warning on the front of the drive. Failure to follow this precaution could lead to severe personal injury or death.
• Do not attempt to override or defeat the drive fault circuits. To work safely on your Kinetix 6200 drive system, you must first identify the cause and resolve all indicated faults. Failure to do so can result in uncontrolled drive operation, which can, in turn, cause bodily injury and equipment damage.
• Provide an earth ground for troubleshooting your Kinetix 6200 drive using diagnostic tools like oscilloscopes. Failure to ground the test equipment may cause personal injury.
