How SMC Plus Soft Starters Reduce Wear and Tear on High-Load Motors

High-load motors often experience excessive mechanical and electrical stress during startup, leading to premature wear and tear. The Allen-Bradley SMC Dialog Plus soft starters provide advanced control methods to minimize these stresses, ensuring a longer lifespan and improved efficiency for your equipment. In this article, we will discuss different options and features to reduce wear and tear on high-load motors.

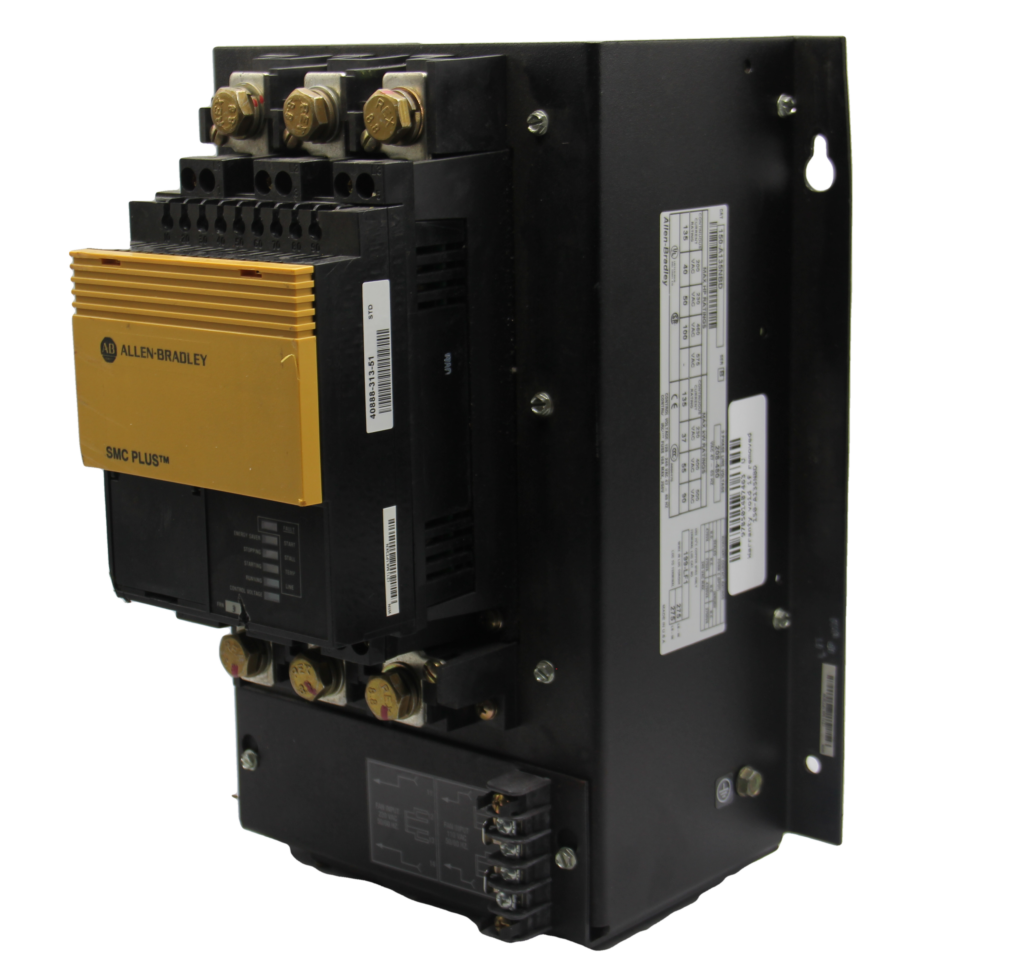

SMC Plus’ Start Options to Protect High-Load Motors

Soft Start

The Soft Start method gradually increases motor voltage over a programmable time of 0 to 0.5 minutes, ensuring a smooth and controlled acceleration. This eliminates sudden torque spikes that can cause excessive mechanical stress on bearings, couplings, and drive components. By reducing inrush currents, Soft Start minimizes heat buildup and electrical strain, enhancing motor efficiency. This feature is ideal for applications requiring gradual power-up, ultimately extending motor lifespan, improving reliability, and reducing maintenance costs in high-load systems.

Dual Ramp Start

For motors operating under varying load conditions, the Dual Ramp Start mode allows two different Soft Start profiles to be programmed, each with customizable ramp times (0 to 0.5 minutes) and torque settings (0 to 90% of blocked rotor torque). This flexibility ensures optimal startup conditions, reducing mechanical shock and thermal stress on critical components. By adjusting to different loads, SMC Plus soft starters help minimize wear, enhance reliability, and extend the service life of high-load motors.

Current Limit Start

The Current Limit Start mode in SMC Plus soft starters restricts inrush current between 50% and 600% of full load current, preventing excessive electrical and mechanical stress during motor startup. By capping the current, this method reduces overheating, minimizes wear on windings, and prevents sudden torque surges that can strain couplings and bearings. This controlled acceleration is ideal for high-load applications requiring a gradual startup, helping to extend motor life, lower maintenance costs, and enhance overall efficiency.

Full Voltage Start

The Full Voltage Start mode is designed for applications where immediate full torque is required, and starting stress is not a concern. Unlike soft start methods, this mode delivers full voltage to the motor almost instantly, with a ramp time of approximately 0.25 seconds.

Soft Start with Kickstart

For applications requiring an extra torque boost at startup, Soft Start with Kickstart provides a brief current surge of approximately 550% of full load current for 0.0 to 2.0 seconds. This short burst helps overcome initial inertia without exposing the motor to prolonged high-torque stress. Ideal for heavy-load applications like conveyors and compressors, this feature ensures a faster yet controlled start, reducing mechanical strain, preventing overheating, and optimizing overall motor performance.

SMC Plus’ Stop Options to Protect High-Load Motors

Soft Stop

The Soft Stop feature in SMC Plus soft starters gradually decreases motor voltage over a programmable period of up to 1 minute, ensuring a smooth and controlled deceleration. This prevents abrupt stopping, reducing mechanical shock on gears, belts, and couplings. It is particularly useful in frictional load applications, where sudden stops can cause excessive wear and misalignment. By allowing a gentle slowdown, Soft Stop extends the lifespan of motor components, enhances safety, and minimizes system downtime.

Pump Control

Designed specifically for centrifugal pump applications, the Pump Control feature regulates acceleration and deceleration to prevent pressure surges and water hammer. With adjustable start times (0 to 0.5 minutes) and stop times (0 to 2 minutes), it ensures smooth flow transitions, protecting pipes, valves, and seals from excessive stress. By reducing hydraulic shock, SMC Plus soft starters extend pump lifespan, lower maintenance costs, and improve system efficiency, making them ideal for fluid-handling applications.

Smart Motor Braking (SMB)

The Smart Motor Braking (SMB) function rapidly stops motors without requiring external braking resistors or contactors. By adjusting the braking current between 150% and 400% of the full load current, SMB provides a fast yet controlled stop, reducing mechanical wear on braking systems. Its zero-speed shutoff feature enhances precision and safety in high-load applications. By eliminating the need for additional braking hardware, SMC Plus soft starters help reduce maintenance requirements, improve stopping efficiency, and extend the durability of motor-driven systems.

Accu-Stop: Precision Stopping to Reduce Mechanical Stress

The Accu-Stop feature in SMC Plus soft starters enables position-based stopping by decelerating the motor to a controlled low speed between 7% and 15% of its rated speed before a stop command is issued. With adjustable braking current up to 400% of full load current, it provides smooth deceleration, reducing mechanical shock on gears, couplings, and positioning systems. This precise stopping method enhances control in high-load applications, minimizing wear, extending motor life, and improving overall operational accuracy and efficiency.

Protection Related Features

 Apart from choices for beginning and halting, the SMC Dialog Plus provides safeguards against typical dangers.  Phase rebalancing, jam detection, overload prevention, and stall protection are some of these characteristics.

Overload and Underload Protection

The SMC Plus soft starter includes advanced overload and underload protection to safeguard motors from excessive stress and potential failure. Using a built-in I²t algorithm, it continuously monitors motor current, preventing overheating by adjusting overload trip levels to 10, 15, 20, or 30. Additionally, underload protection detects significant current drops, automatically stopping the motor when necessary. With adjustable trip settings between 0% and 99% of full load current and customizable delay times, this feature prevents damage, reduces downtime, and extends motor lifespan.

Protection Against Stalling and Motor Jamming

The SMC Plus soft starter prevents blocked rotor currents and excessive torque, which can damage motor windings. With programmable stall (0–10 seconds) and jam detection delays (0.0–10.0 seconds), it protects against overheating, reduces mechanical wear, and prevents costly motor failures.

Energy Saver

The Energy Saver reduces power consumption during low-load or idle periods, preventing unnecessary stress on motor components. Optimizing energy use lowers heat buildup, reduces mechanical fatigue, and extends motor lifespan, making high-load operations more efficient and cost-effective.

Phase Rebalance

Uneven voltage distribution can cause excessive motor wear and inefficiencies. The Phase Rebalance feature dynamically adjusts voltage, ensuring balanced three-phase currents. This prevents overheating, minimizes electrical strain, and enhances the reliability and longevity of high-load motors in demanding applications.

Advanced Monitoring and Communication Features helping in preventing Motor Failure

Metering and Power Monitoring

The SMC Plus soft starter offers real-time monitoring of key motor parameters, including 3-phase currents, voltage, power usage, power factor, and thermal capacity. By analyzing these metrics, operators can detect potential faults early, schedule preventative maintenance, and prevent overloading or overheating, ultimately reducing mechanical wear and extending motor life.

Built-in SCANport Communication

With SCANport communication, the SMC Plus soft starter integrates with remote monitoring systems, enabling continuous oversight of motor performance. This feature allows for timely adjustments and early interventions, reducing operational disruptions. By preventing excessive stress and addressing issues before failure, SCANport minimizes wear, enhances reliability, and extends the service life of high-load motors.

Final Thoughts

In conclusion, the SMC Plus soft starter is a powerful solution for protecting high-load motors from excessive wear and tear. Offering advanced start and stop methods, minimizes mechanical and electrical stress, ensuring smooth acceleration and deceleration while preventing damage to motor components. With built-in protection features like overload prevention, jam detection, and phase rebalancing, it enhances reliability and extends motor life. Additionally, real-time monitoring and SCANport communication enable proactive maintenance, reducing downtime and maintenance costs. Overall, the SMC Plus soft starter improves efficiency, enhances safety, and maximizes the lifespan of industrial motors in demanding applications.

At DO Supply, we offer a variety of SMC starters, including the Plus, 2, and Dialog Plus models, among others. We invite you to visit our website to explore options that can enhance your automation solutions. If you’re unsure about what you need, don’t hesitate to give us a call. Our experts are available to help you find exactly what you’re looking for. We also put the SMC 2 and Plus head to head in this article here.
