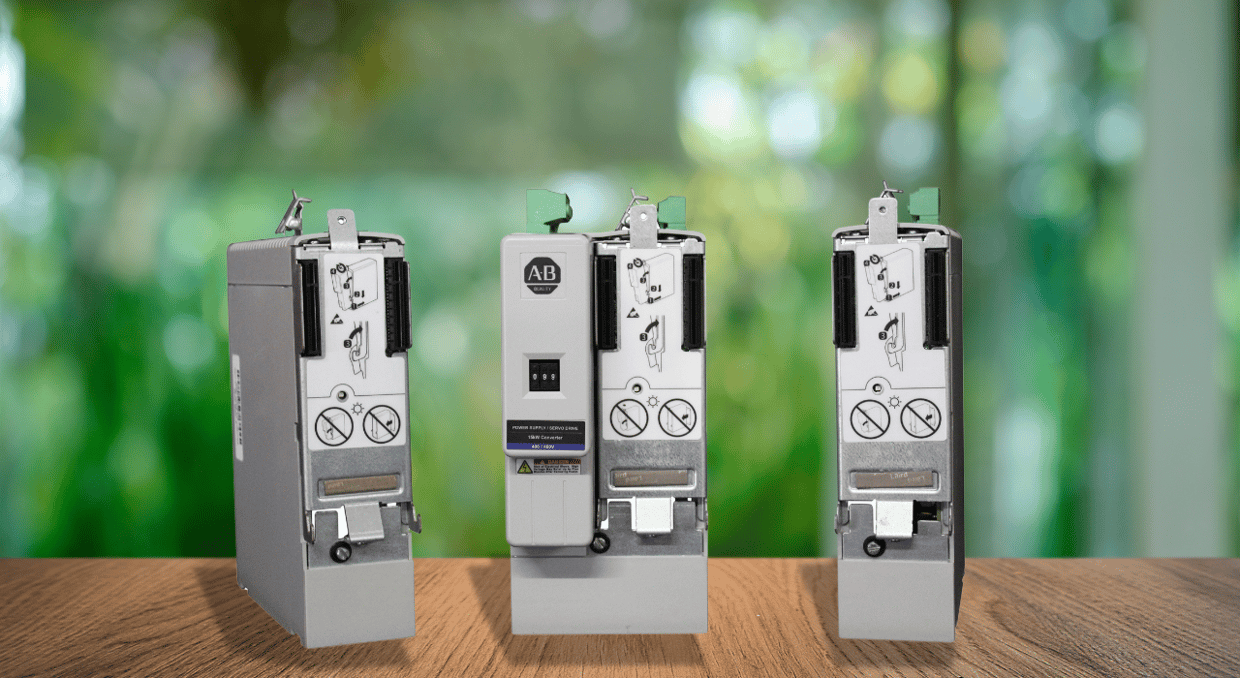

Kinetix 6200: The High-Performance Servo Drive for Demanding Applications

The Kinetix 6200 servo drive is an advanced motion control solution designed for high-precision industrial applications that demand accuracy, flexibility, and reliability. With its modular architecture, the system seamlessly integrates motion control, communication, and networked safety, ensuring superior performance across various industries, including robotics, packaging, and automotive manufacturing. Featuring a high-speed SERCOS interface, integrated safety functions, and a broad power range, the Kinetix 6200 enhances productivity while maintaining strict safety standards. Its compatibility with Allen-Bradley controllers and scalable design make it a future-proof choice for mission-critical automation systems, delivering exceptional efficiency, precision, and long-term operational reliability in demanding environments. In this article, we will discuss some of its features, then its applications, and lastly, we will look into some example modules.

Features that Facilitate the Performance of Demanding Applications

Advanced Modular Motion Control Architecture

The Kinetix 6200’s advanced modular architecture is designed for high-precision applications that demand accuracy and reliability. Offering exceptional system design flexibility, it integrates motion control, communication, and networked safety into a seamless solution. Its compatibility with 400V-class Integrated Axis Modules (IAM) and Axis Modules (AM) ensures scalable power options, while the high-speed SERCOS interface enables smooth, precise motion control. The Integrated Motion feature optimizes performance in material handling, robotics, and packaging by enabling coordinated, high-efficiency operations. With its modular design, the Kinetix 6200 enables easy integration and future scalability, making it an ideal choice for mission-critical manufacturing systems.

Power and Performance for Demanding Applications

The Kinetix 6200 servo drive offers a wide power and voltage range, making it a versatile choice for high-performance industrial applications. Supporting 324 to 528V AC input and delivering continuous output power from 1.8 to 22.0 kW, it ensures reliable and precise motion control. Designed for demanding environments such as robotics, metal forming, and packaging, its flexible power capabilities provide consistent performance across complex manufacturing systems. With its robust design and scalability, the Kinetix 6200 is the ideal solution for industries that require precision, efficiency, and long-term operational reliability.

Safety Features

The Kinetix 6200 servo drive is equipped with advanced safety features, ensuring exceptional protection and reliability in demanding industrial environments. Its Safe Torque-Off (STO) and Safe Speed Monitoring (SSM) functions are TÜV Rheinland-certified to PLe, Category 4, and SIL CL3 standards, safeguarding operators without compromising system performance. These safety capabilities make it an ideal solution for precision-driven industries such as robotics, material handling, and automotive manufacturing. By minimizing downtime during maintenance and system adjustments, the integrated safety features enhance productivity while maintaining compliance with stringent industry safety regulations. The Kinetix 6200 delivers both high-performance motion control and the highest level of operational safety, making it a trusted choice for mission-critical applications.

Efficiency with Integrated Motion Control

The Kinetix 6200 servo drive delivers high-performance integrated motion control, ensuring seamless operation with Allen-Bradley CompactLogix, SoftLogix, and ControlLogix controllers. Designed for demanding applications, it enhances productivity by simplifying programming and enabling precise coordination of complex motion tasks. Its advanced control capabilities provide exceptional accuracy, speed, and reliability, making it ideal for industries such as packaging, electronics, and material handling. By reducing downtime and optimizing system performance, the Kinetix 6200 supports high-efficiency manufacturing processes.

Precision with High-Resolution Feedback Support

The Kinetix 6200 servo drive delivers outstanding precision through its high-resolution feedback support, making it ideal for demanding applications. With auxiliary axis feedback and compatibility with both single-turn and multi-turn absolute encoders, it ensures accurate positioning and motion control. This advanced feedback capability enhances performance in industries such as robotics, printing, and precision machining, where even the smallest deviations can impact quality. By providing consistent and reliable feedback, the Kinetix 6200 enables superior output, thereby reducing errors and optimizing production efficiency.

Current Ratings

The Kinetix 6200 servo drive offers a wide range of current ratings to meet the demands of high-performance applications. It delivers a continuous output current of 2.8 to 34.6 A (rms) or 4.0 to 49.0 A (0-pk) for inverter ratings, ensuring precise and efficient motion control. Additionally, its converter ratings provide up to 68.0 A (ADC) continuous current output to the bus, supporting demanding industrial operations. Designed for applications requiring consistent power and reliability, such as robotics, packaging, and material handling, the Kinetix 6200 ensures superior performance, scalability, and efficiency in complex manufacturing environments.

High-Speed SERCOS Communication

The Kinetix 6200 servo drive supports SERCOS (Serial Real-Time Communications System) protocol, an IEC 61491-approved high-speed network designed for precise motion control. Using standardized closed-loop data transfer over fibre-optic cables, SERCOS ensures real-time communication with high noise immunity, making it ideal for demanding industrial applications.

Kinetix 6200 integrates seamlessly with Allen-Bradley Logix 5000 SERCOS interface motion modules, including:

1756-MxxSE Modules – Provide a SERCOS communication link between Logix 5000 ControlLogix controllers and Kinetix 6200.

1768-M04SE Module – A 4-axis motion interface module connecting CompactLogix controllers to Kinetix 6200 via SERCOS fibre-optic cables.

1784-PM16SE PCI Card – A 16-axis SERCOS interface PCI card for SoftLogix controllers.

This robust communication capability ensures high-performance, synchronized motion control across complex automation systems.

Applications of Kinetix 6200

Optimizing Automotive Manufacturing

The Kinetix 6200 servo drive is a powerful motion control solution for the automotive industry, ensuring accuracy, safety, and reliability in demanding applications such as robotic welding, paint systems, and assembly lines. Its wide power range supports heavy-duty operations, while adaptive motion profiles enable smooth transitions under varying workloads. Inertia compensation enhances precision when handling large components, and integrated thermal monitoring prevents overheating during continuous operation. With advanced connectivity to IoT-enabled systems, the Kinetix 6200 enhances production efficiency and enables predictive maintenance, making it a vital solution for high-performance automotive manufacturing environments.

Motion Control for Renewable Energy Systems

The Kinetix 6200 servo drive is an ideal solution for renewable energy applications, providing precise and efficient motion control for wind turbine systems and solar panel positioning. Its advanced motion algorithms optimize energy capture by accurately tracking the sun’s and wind’s movements, while its broad power range supports diverse energy scales. Integrated safety features, such as Safe Speed Monitoring, enhance operational reliability. With multi-turn absolute encoder feedback, regenerative power management, and real-time adaptive motion control, the Kinetix 6200 ensures stable, efficient performance in dynamic renewable energy environments, contributing to sustainable and optimized energy production.

Example Modules

2094-BC01-M01-M

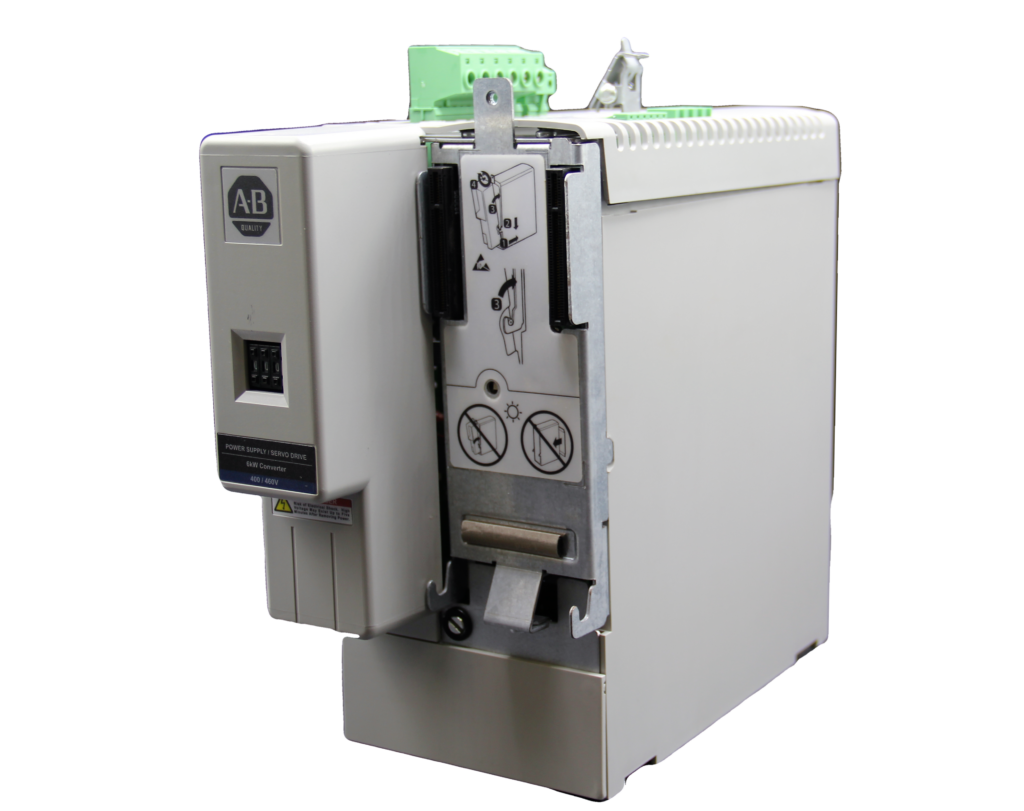

The Allen-Bradley 2094-BC01-M01-M Integrated Axis servo drive (IAM) is part of the Kinetix 6200 series, featuring a 460V AC input, a 6kW converter, and a 9 A inverter, providing powerful motion control. It features a Safe Speed Monitor, Safe Torque Off, and multiple safety functions, thereby reducing downtime and eliminating the need for external safety components. Supporting SERCOS and Ethernet/IP, it ensures seamless integration and migration. Its modular design simplifies wiring, lowers maintenance costs, and extends motor life, while real-time diagnostics improve efficiency. With advanced safety and adaptability, it’s a vital component for high-performance automation systems.

2094-BM02-M

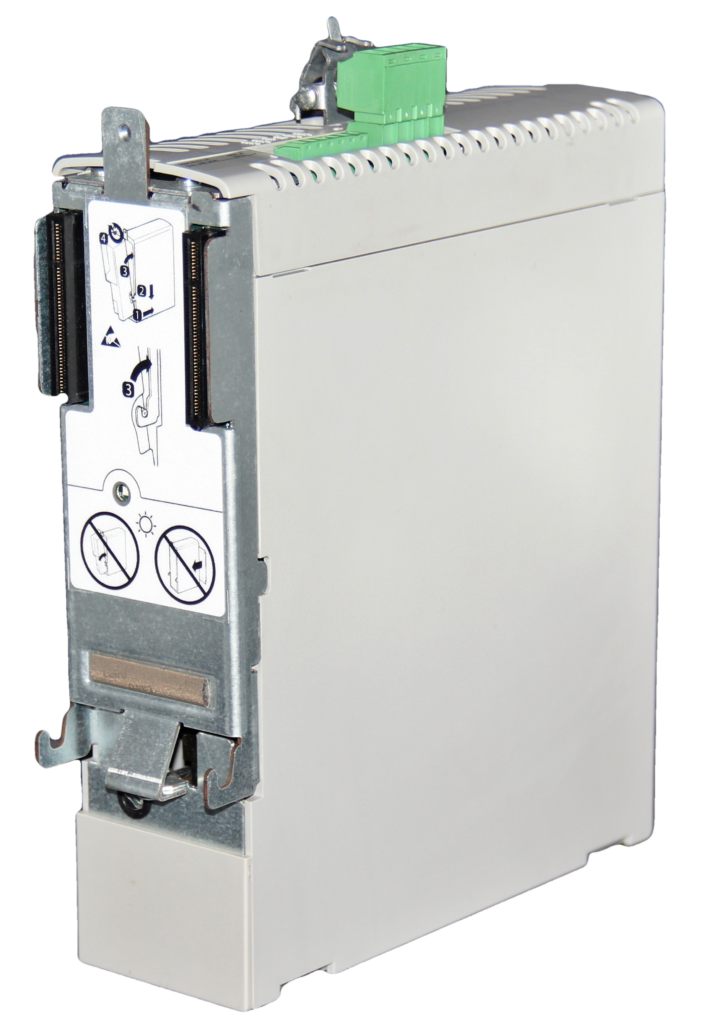

The Allen-Bradley 2094-BM02-M is a modular Axis servo drive (AM) for the Kinetix 6200, offering 460V three-phase input power and a 15A inverter for high-performance motion control. It seamlessly transitions between Safe Torque Off and Safe Speed Monitor, supporting both SERCOS and Ethernet/IP for flexible integration. Embedded safety features eliminate the need for external monitors, while advanced diagnostics display real-time fault messages. Its modular design simplifies wiring, reduces downtime, and enhances efficiency, making it ideal for demanding automation environments. Safety functions like Safe Maximum Speed, Safe Direction Monitoring, and Zero Speed Monitoring ensure operator protection and system reliability.

2094-BC01-MP5-M

The Allen-Bradley 2094-BC01-MP5-M is a Kinetix 6200 Integrated Axis Module (IAM) featuring a 460V AC input, a 6 kW converter, and a 5 A inverter, providing high-performance motion control. Supporting Safe Torque Off and Safe Speed Monitor, it ensures seamless transitions and SERCOS to EtherNet/IP connectivity for flexible integration. Its embedded safety features eliminate the need for external components, reducing wiring and panel space. Advanced diagnostics enhance efficiency, while a modular design improves maintenance and scalability. Safety features such as Safe Maximum Speed, Safe Direction Monitoring, and Zero Speed Monitoring protect personnel, reduce downtime, and extend motor life, making them ideal for demanding automation environments.

Final Thoughts

In conclusion, the Kinetix 6200 servo drive is a high-performance motion control solution that combines precision, flexibility, and safety for demanding industrial applications. Its modular architecture enables seamless integration and scalability, while its broad power range ensures consistent performance across various industries, including robotics, packaging, and automotive manufacturing. Advanced safety features, including Safe Torque-Off and Safe Speed Monitoring, enhance operator protection and system reliability. With high-speed SERCOS communication and high-resolution feedback support, it delivers precise, efficient motion control. We also discussed some applications for the Kinetix 6200 and provided examples of modules that demonstrate its various features.

If you’d like to order a Kinetix 6200 for yourself, visit us at DOSupply.com! We carry a wide range of 6200 series drives, as well as any components that complement them. We also have an expert team on standby to answer any questions you may have. So give us a call or shoot us an email today!
