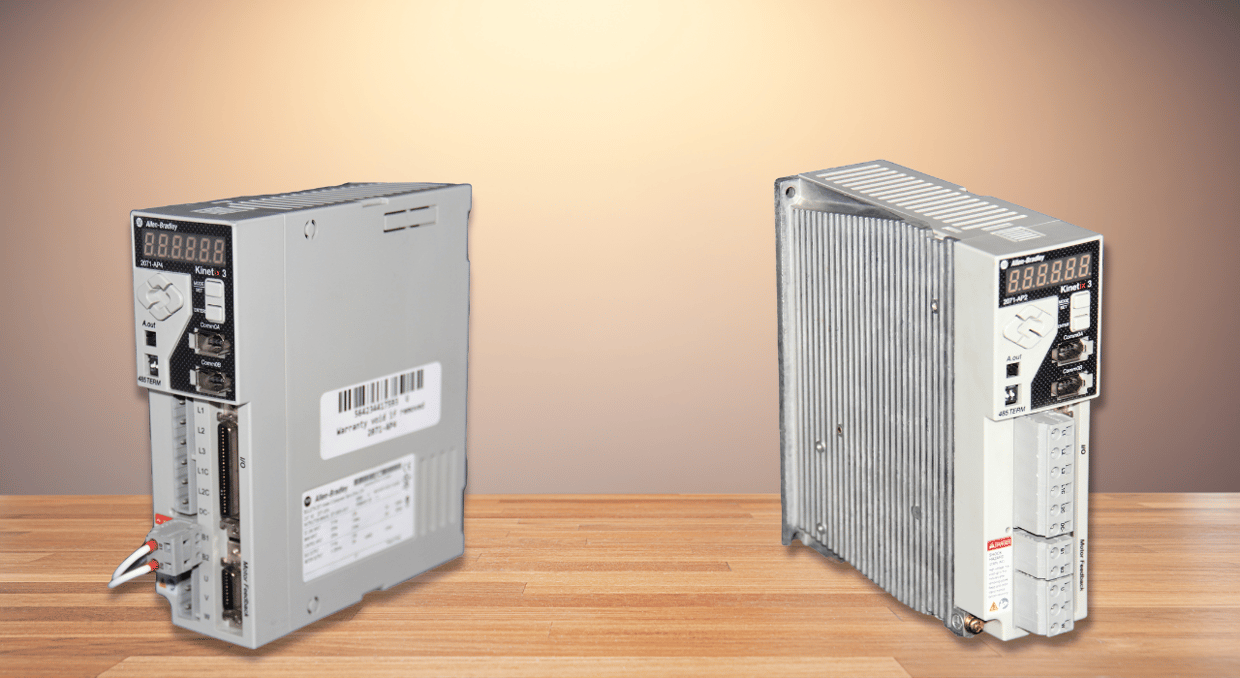

Why the Kinetix 3 is a Good Entry-Level Solution for Servo Motion

Automated processes and motion control come in all different shapes and sizes. Ranging from a Pepsi bottling plant pushing out thousands of bottles per minute to tracking solar panel direction on a roof. Sure, the latter isn’t as exciting as watching bottles whiz across a factory on predetermined routes to be palletized by yet another automatic machine. Still, it doesn’t make it any less important. Small-scale, entry-level automation systems are needed everywhere, from electronics assembly to laboratory automation equipment. This is where drives, like the Kinetix 3, shine the brightest. This article highlights the factors that go into choosing a Kinetix 3 rather than its technical specifications. If you want to read about that specifically, we have an article for you here.

Affordability

The number one most important consideration for any move is cost. Budgets are a law of life, and the Kinetix 3 aims to offer a small package packed with necessary features at a price that won’t bring tears to your eyes. In fact, that is one of Allen-Bradley’s main selling points for the Kinetix 3: “ The right functionality at the right cost.” This idea stems from the vision of making a no-frills drive to power multiple axes motion system, so you don’t pay for the extra features you won’t use anyway. Energy efficiency also plays a large role in reducing the operating costs of the Kinetix 3, which boasts around 90% efficiency. While I would like to list prices here in the article, the truth of the matter is that they fluctuate and differ depending on condition and bundled accessories, so it’s always a good bet to call us for a direct quote if one catches your eye.

Ease of Use

One of the coolest features of the Kinetix 3 is its automatic motor recognition. Let’s paint a bigger picture of why this could be helpful. Say you are tasked with helping a small manufacturer automate a basic pick-and-place workstation for assembling electronics. There are tight space constraints, a limited budget, and a team that isn’t exactly experienced with servo drives. The goal is to have something that works reliably without any added frustration. Their system in place uses a TL-series rotary servo motor mounted to a vertical slide to pick parts up and drop them into their designated space on a PCB. Sounds simple, right? It absolutely is with the Kinetix 3.

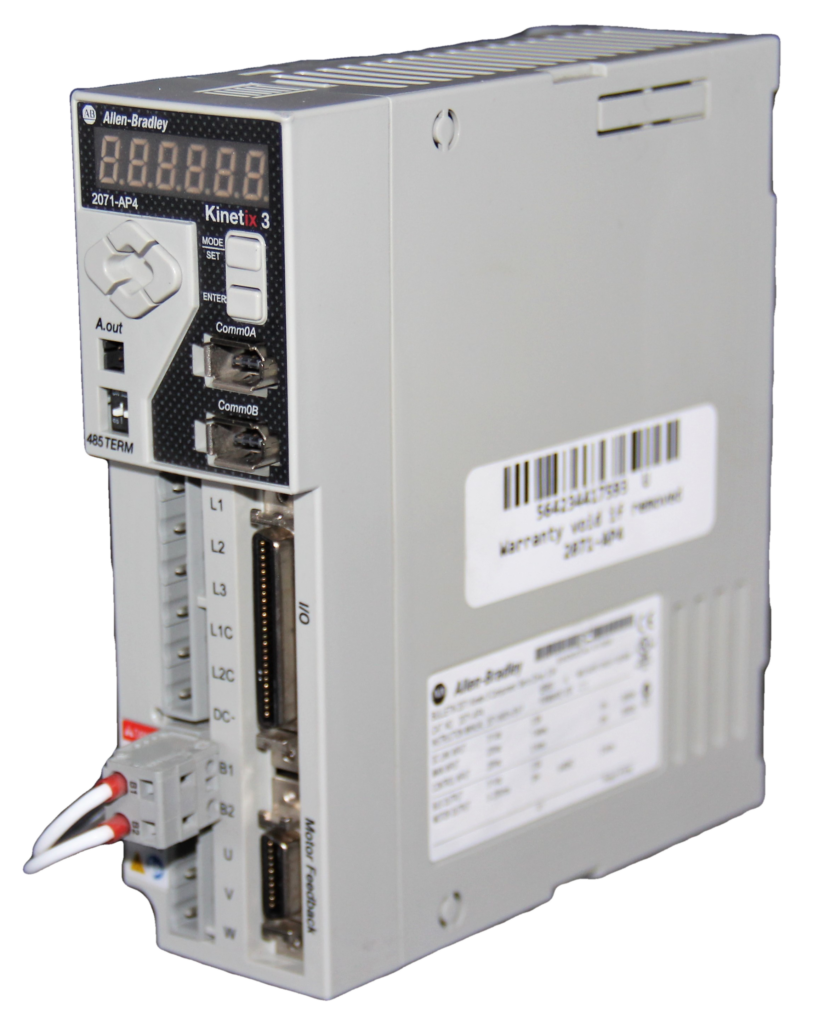

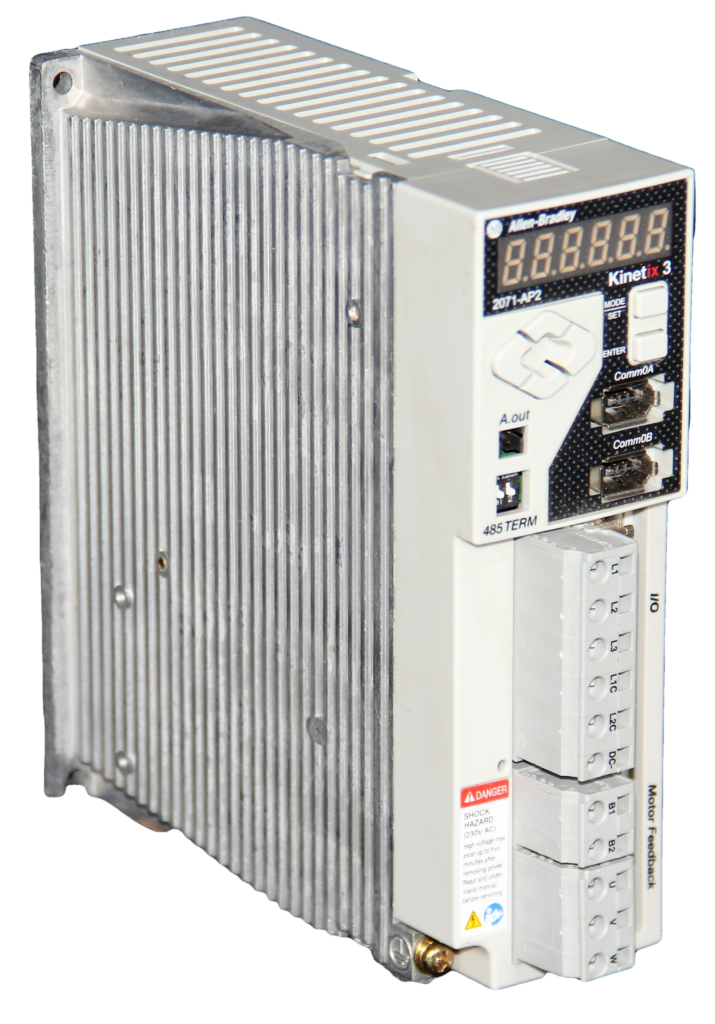

Enthusiastically, you can install this compact drive into the control cabinet without any issue, as fancy mounting rails or massive ventilation clearance aren’t required. The wiring is even straightforward when using the I/O breakout board: just basic control wiring from the sensors and a start button. The magic begins when you plug the TL-Series motor in using a standard 2090-series feedback cable, power up the drive, and see that it automatically recognizes the motor. There’s no guesswork or digging through data sheets; it just works. The Kinetix 3 will auto-load the motor’s feedback resolution, current limits, torque curves, and even basic gain presets.

Now you are ready to define motion and with no programming headaches either. The drive can index up to 64 points through Modbus or through its digital inputs. However, for a pick-and-place system, you only really need a handful, such as home position, pick position, place position, and maybe even a test or reject bin. This entails assigning each position to an input pin and wiring up some limit switches or sensors, and then you’re in business. There is also software that you can use to do just that if you prefer.

And that’s not all! The Kinetix 3 will also automatically suppress vibration and resonance with its two adaptive notch filters. Now, you can rejoice as the Kinetix does its thing. There is a seven-segment display for quick fault codes if any arise, but for the most part, the thing is pretty much plug-and-play. The motor recognition also works for TL-Series linear actuators as well as LDL and LDC series linear motors.

Flexibility for Small Applications

Not every automation task needs to be a multi-axis monster with dozens of communication protocols. In fact, many tasks in entry-level setups rely on a drive that can move a motor precisely, respond to basic signals, and be easy to operate. The Kinetix 3 covers this ground by offering a variety of control modes, such as analog current, analog velocity, pulse train, and internal position control through indexing. That means whether you’re trying to wind film onto a spool at a fixed speed or index a part forward on a conveyor with each sensor trip, the Kinetix 3 can do it without cornering you into a single way of working.

Other examples of where the Kinetix 3 shines are electronics assembly, medical manufacturing, solar tracking systems, and even intermittent form-fill-seal machines. Basically, if your application needs somewhere under 1.5kW of power and a clean, straightforward control setup, the Kinetix 3 will more than likely fill that role nicely.

Diagnostics and Reliability

Any machine builder or technician understands that the real test of a drive isn’t during its installation, but when something goes sideways mid-shift, you need to figure out why. Given the current track record of this drive so far, it wouldn’t be hard to guess that the Kinetix 3 also makes this easy. First, there’s the onboard 7-segment display to give real-time, readable, reliable, real-time fault information. You can reference the owner’s manual to see what could cause your woes instead of trying to guess if the troubles are coming from your wires, motor, or anything in between.

Regarding reliability, the Kinetix 3 has built-in solid-state short-circuit protection, and several models include internal shunt resistors to safely dissipate regenerative energy. Take a vertical load coming down that starts to spin the motor, causing energy to be pushed into the drive and damaging it.

Let’s not forget those adaptive notch filters we touched on earlier. These filters actively suppress vibration and resonance without you having to manually fine-tune PID gains. It’s like having a built-in motion therapist, detecting the jitters in your mechanical system and calming them down in real-time.

However, unpredictable damage can occur with anything, and repair/replacement is required. That’s why we at DO Supply pride ourselves for being a trusted drive repair option, so much so that we add a two year warranty for every drive we fix.

Scalability and Future-Proofing

While the Kinetix 3 was made for entry-level systems, it doesn’t box you into that ecosystem forever. The basic structure and terminology of the Kinetix 3 translate well when you begin to think about transitioning to something like a Kinetix 5500 or 5700. It will feel more like a step up rather than starting over. The general layout is there already for you to work on. Even the Modbus-RTU we reviewed will allow you to chain multiple Kinetix 3s together or link them into a larger system when using devices like the MicroLogix 1400. Expanding applications from one to three axes is also easy since you can keep the same motors, cables, software, and, in many cases, the same logic.

In addition, you’re not locked into using a PLC or complicated Ethernet setup if you don’t need it yet. But if you decide to take that route, the foundation is there, and the Rockwell family of equipment will play nice with your Kinetix 3. At that point, you can always give us a call, and we can help you find the stepping stones to take in terms of upgrades and compatibility.

Final Thoughts

The Kinetix 3 is a fantastic drive for small-scale applications. When we say “entry-level,” we aren’t downplaying these smaller applications. We know just how much effort and time go into building these systems, and the end result can be a matter of saving lives or taking a small company to the next level. That’s why we at DO Supply are here to help. Whether it is providing articles like these or having a team ready to give expert advice for your automation project, we also pride ourselves on being a reliable source of equipment repairs, so much so that we add a two-year warranty to every drive we fix, so you have the confidence it will run just like new. Give us a call or shoot us an email today, and we will help you take your automation process to the next level!
