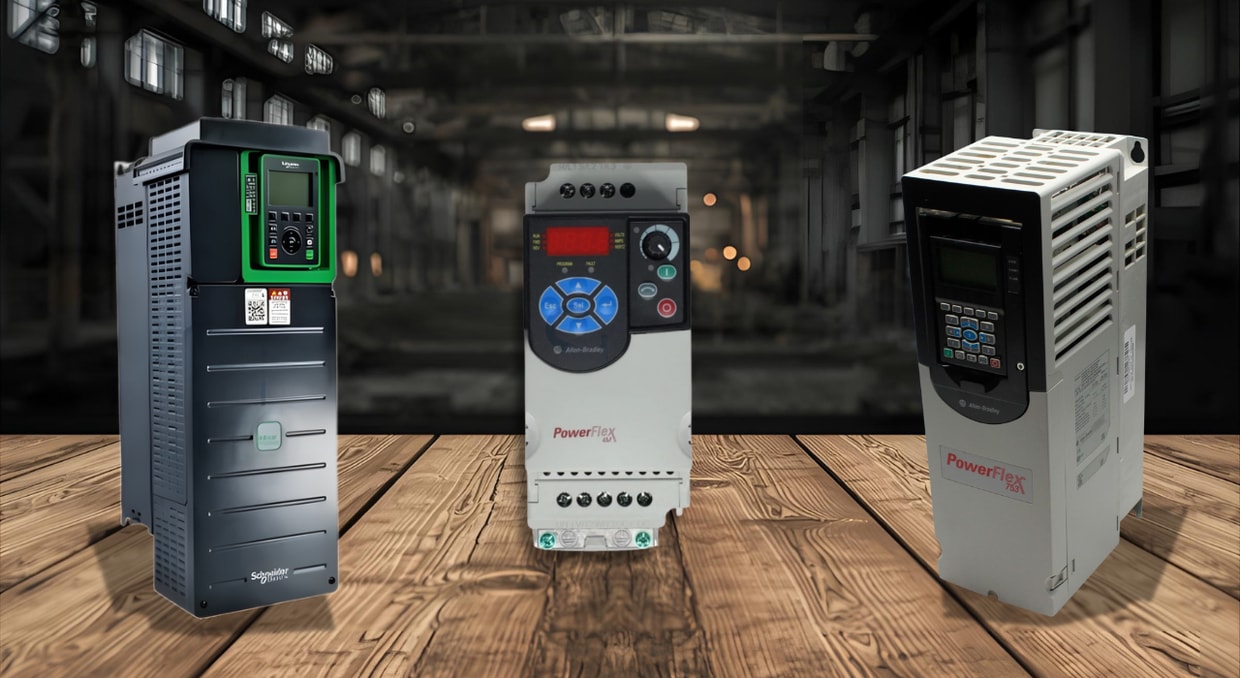

AC Drives in Harsh Environments: What You Need to Know About IP Ratings and Cooling

AC drives, often referred to as variable frequency drives or VFDs, are essential for regulating motor speed, increasing energy economy, and facilitating better process control in industrial environments. Their lifespan may be shortened or they may fail when utilized in severe situations, such as outdoor spaces, humid industrial facilities, or dusty plants. When installing AC drives in these situations, cooling systems and Ingress Protection (IP) ratings are two important considerations.

Understanding Harsh Environments

Any industrial setting where environmental factors have the potential to harm or interfere with electronic equipment is considered a hostile environment. Examples include caustic chemical facilities, humid food industries, dusty cement plants, and outdoor sites subjected to severe weather conditions. Drive dependability might even be impacted by vibrations from heavy machinery, like mining. Drives must be safeguarded in these circumstances to prevent problems and expensive downtime.

What Are IP Ratings?

Ingress Protection (IP) ratings, defined under the IEC 60529 standard, classify how well an electrical enclosure prevents the entry of solids and liquids. The rating uses two digits: the first indicates protection against solid particles (like dust), and the second shows resistance to water. For example, an IP20-rated drive offers minimal protection—suitable only for clean indoor areas, while an IP66 or IP69K drive is designed to handle high-pressure water and total dust exposure.

Why IP Ratings Matter?

Using a drive with an unsuitable IP rating can lead to dust or water entering the enclosure, resulting in short circuits or corrosion. This causes increased maintenance, unexpected failures, and production losses. Selecting the right IP rating for the environment ensures long-term performance and reliability, especially in dirty, wet, or outdoor settings.

Cooling Methods for AC Drives

Drives generate heat during operation, particularly under heavy loads or in continuous use. Effective cooling is necessary to prevent overheating, which can damage internal components and reduce lifespan. There are several cooling strategies depending on the environment and drive design.

Air Cooling is the most common and can be passive (natural convection) or active (using fans). While cost-effective, fan cooling is not ideal in dusty areas, as fans can clog or fail. Clean air is essential for this method to work reliably.

Enclosure Cooling is used in sealed, high-IP-rated drives. Heat is expelled through external heat sinks or the enclosure itself. This is ideal for dusty or wet areas, but cooling capacity is limited, and performance may drop in hot environments unless derated.

Liquid Cooling is suitable for high-power or temperature-sensitive applications. A coolant circulates through the drive to absorb and remove heat. This method is highly efficient and compact but adds complexity and requires regular maintenance.

External Heat Exchangers, such as air-to-air or air-to-water systems, can be used to isolate the drive from the environment while allowing proper thermal management.

Best Practices for Harsh Installations

To ensure your drive lasts in tough conditions, follow these tips:

• Choose the right IP rating: For indoor use, IP20 or IP21 may be enough. For dusty or wet conditions, aim for IP54 or higher. In washdown zones or outdoors, use IP65, IP66, or IP69K.
• Account for temperature: Verify that the ambient temperature falls within the drive’s rated limits. In hot climates, consider derating, installing sunshades, or using climate-controlled enclosures.
• Protect against corrosion: Use drives with coated circuit boards and stainless steel housings in corrosive environments. Climate-controlled cabinets may be necessary in extreme cases.
• Plan for maintenance: Choose drives with removable filters and accessible panels. Monitor fans and use remote diagnostics to detect issues early.
• Use remote mounting: Install the drive in a protected location and use remote keypads or panels for easy control and access.

AC Drive Examples

Now let’s look at some of the AC drive examples from the same perspective:

ABB ACS880 Series:

The ABB ACS880 series is built for demanding industrial environments. It offers IP55 and IP66 protection, making it suitable for dusty, wet, and corrosive settings. With direct torque control (DTC), it provides precise motor control and energy efficiency. The drive supports wall-mounted and cabinet installations and features coated circuit boards for added durability. It’s ideal for applications in mining, marine, and oil & gas industries. Integrated safety features and connectivity options make it a reliable choice for harsh conditions.

Danfoss VLT AutomationDrive FC 302:

The VLT FC 302 from Danfoss is a robust drive designed for versatile industrial use. It features IP55 and IP66 enclosures, back-channel cooling, and coated electronics for protection against dust and moisture. The drive supports advanced motor control, integrated safety, and multiple fieldbus protocols. It’s commonly used in food processing, HVAC, and water treatment. With modular design and energy-saving features, the FC 302 ensures long-term reliability and reduced operational costs in harsh environments.

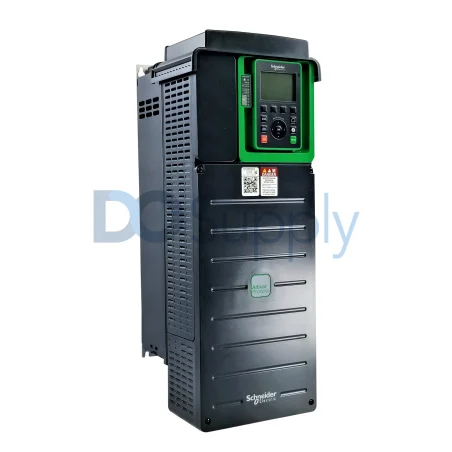

Schneider Electric Altivar Process ATV600:

The Altivar Process ATV600 is engineered for process industries requiring high reliability. It offers IP55 and IP66 enclosures, built-in EMC filters, and advanced cooling systems. The drive supports predictive maintenance, energy monitoring, and remote diagnostics. It’s commonly used in oil and gas, water treatment, and mining sectors. With modular design and digital integration, the ATV600 enhances operational efficiency and reduces downtime in challenging conditions.

Yaskawa GA800 Series:

Yaskawa’s GA800 series is a versatile AC drive with IP55-rated enclosures and conformal-coated boards for protection in dusty and humid environments. It supports a wide range of motors and includes built-in safety features, harmonic mitigation, and flexible communication options. The GA800 is designed for easy setup and maintenance, making it suitable for manufacturing, agriculture, and heavy industry. Its robust design ensures reliable performance in challenging conditions.

Siemens SINAMICS G120X:

The SINAMICS G120X from Siemens is optimized for infrastructure applications like water and wastewater, HVAC, and irrigation. It features IP55-rated enclosures and coated PCBs for protection against moisture and dust. The drive includes integrated safety features and energy-saving functions, and it supports cloud connectivity via Siemens’ digital platforms. With wide voltage ranges and robust thermal management, the G120X is ideal for outdoor and industrial environments.

PowerFlex 525:

The PowerFlex 525 is a compact AC drive with IP20/IP66 enclosures and a modular design for flexible mounting. It includes built-in Ethernet/IP, safety features, and sensorless vector control. Suitable for light industrial applications, it’s used in packaging, HVAC, and small machinery. The drive’s robust design and easy configuration make it a reliable choice for moderately harsh environments.

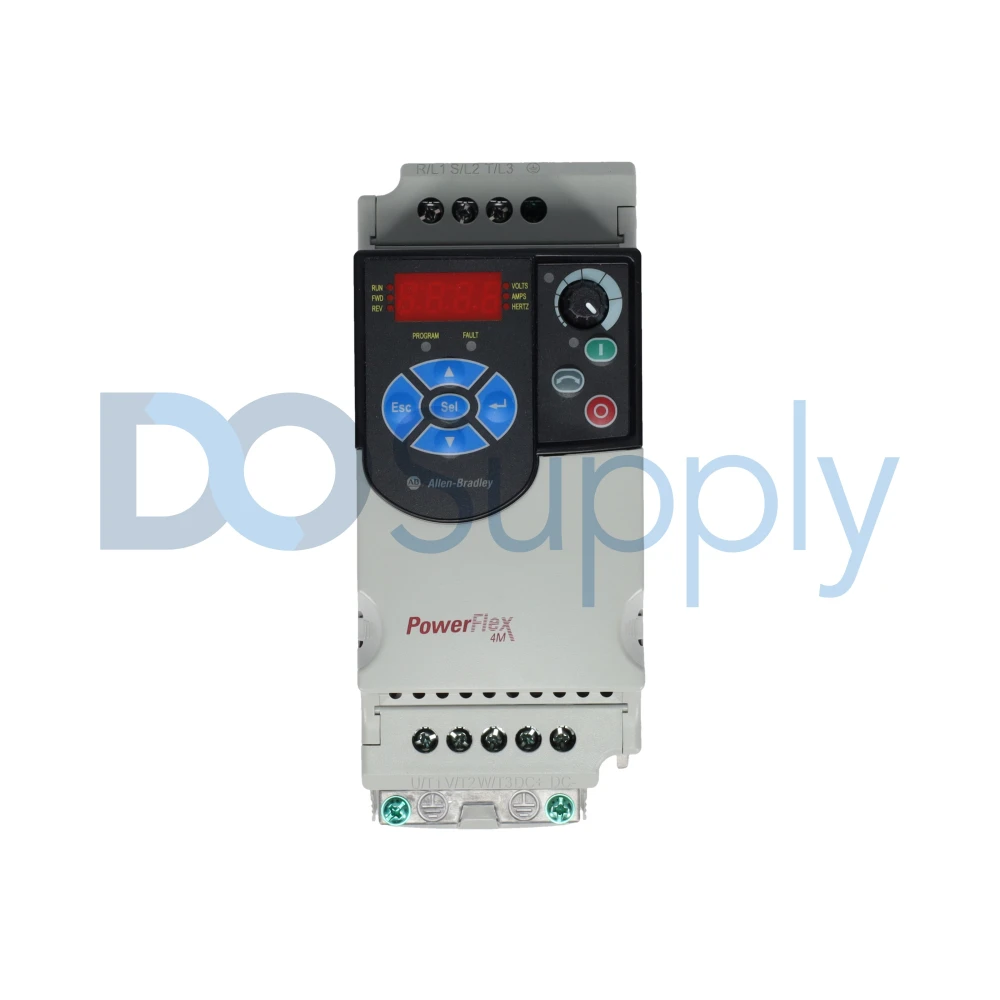

PowerFlex 4M:

The PowerFlex 4M is a cost-effective drive for basic motor control in compact spaces. It supports IP20/IP66 enclosures and features feed-through wiring and easy programming. While not suited for extreme conditions, it performs well in moderately harsh environments like small workshops or enclosed machinery. It’s commonly used in fans, pumps, and conveyors.

Kinetix 6500:

The Kinetix 6500 combines high-performance servo control with integrated safety over EtherNet/IP. It supports IP-rated enclosures and is designed for use with ControlLogix systems. Ideal for complex motion applications in harsh environments, it offers modularity, scalability, and advanced diagnostics. The drive supports Safe Torque Off and Safe Stop functions, making it suitable for industries like packaging, converting, and material handling.

PowerFlex 755:

The PowerFlex 755 offers high-performance motor control with advanced diagnostics and flexible configuration options. Designed for harsh industrial environments, it supports IP54/IP55 enclosures and features predictive diagnostics to reduce downtime. The drive includes embedded Ethernet/IP and supports Device Level Ring for network resilience. It’s ideal for applications requiring precise speed and torque control, such as material handling, mining, and heavy machinery.

Final Thoughts

In conclusion, AC drives play a vital role in modern industrial automation, but deploying them in harsh environments requires thoughtful planning. Selecting the right IP rating ensures protection against dust, water, and corrosive agents, while effective cooling—whether air, liquid, or enclosure-based—prevents overheating and extends drive life. Drive models like ABB ACS880, Danfoss FC 302, and PowerFlex 755 offer reliable performance tailored for challenging conditions. If you are interested in the 755 line, we have a blog here for you going over its performance. By understanding environmental demands and matching them with proper drive features, engineers can ensure long-term efficiency, safety, and uptime. Investing in the right drive upfront means fewer failures, lower maintenance costs, and improved operational continuity in the long run.
