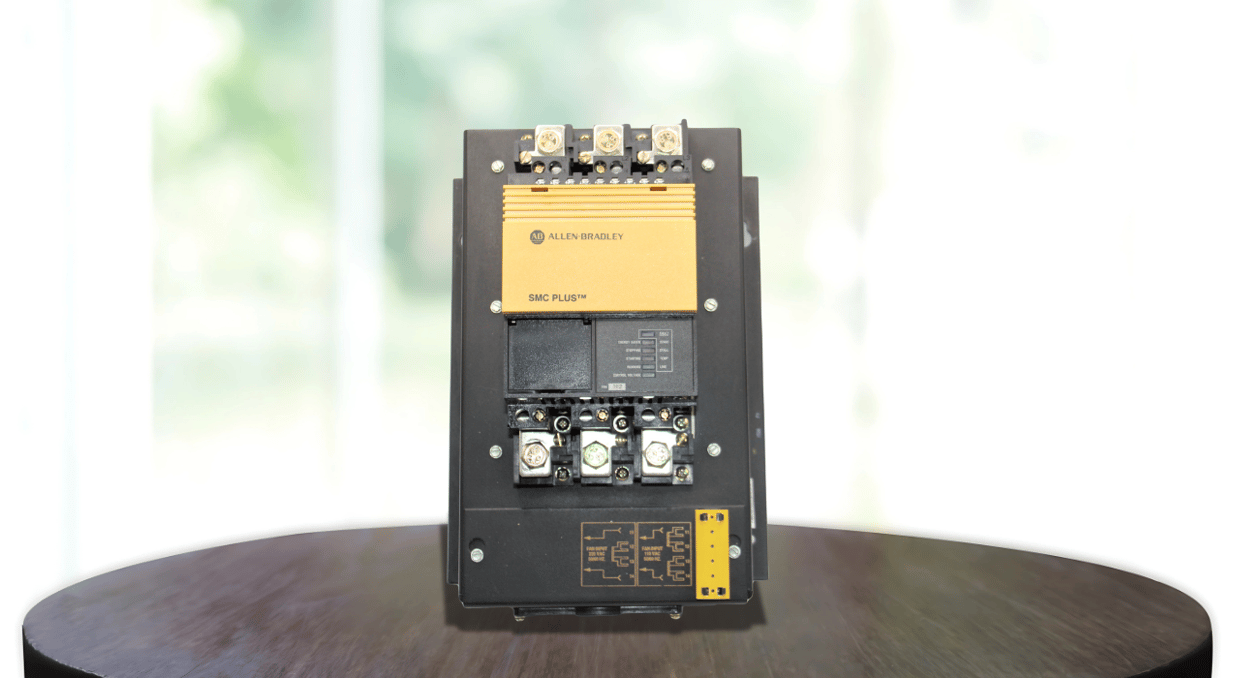

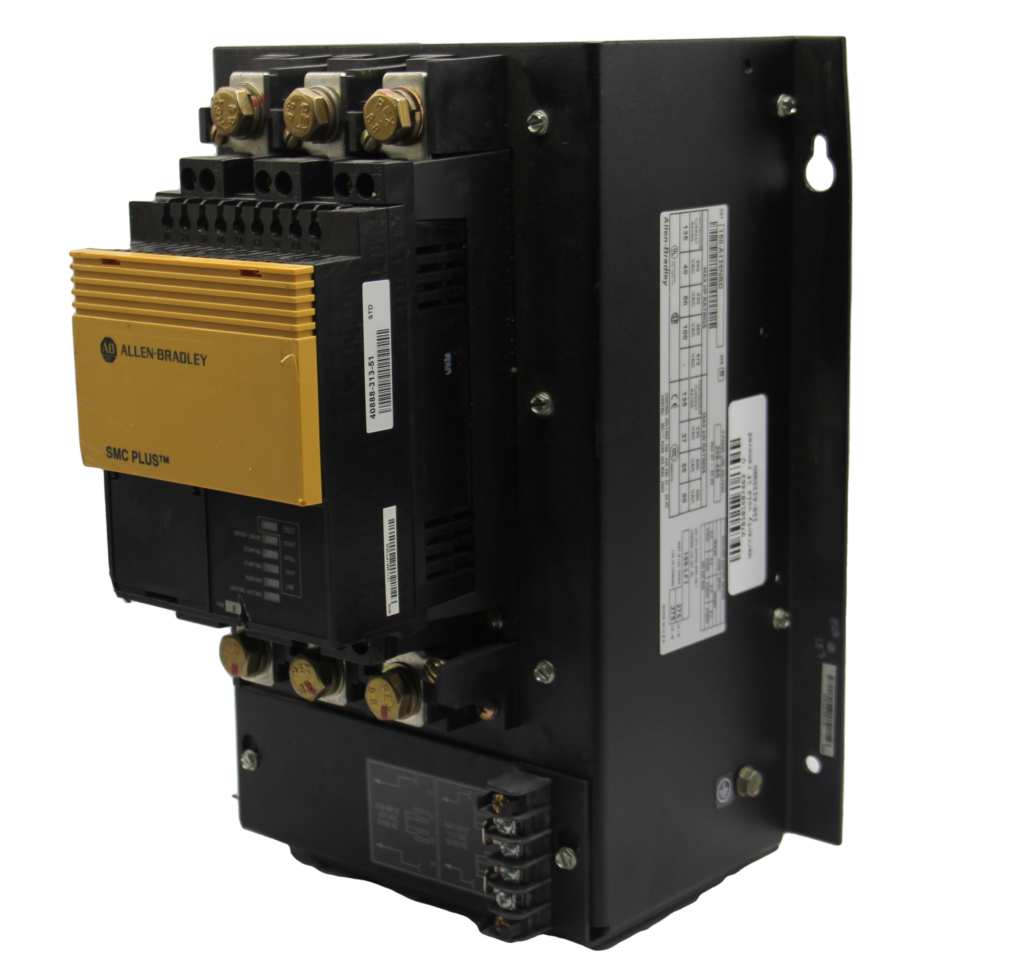

Understanding the SMC Plus: Features, Benefits, and Applications

The SMC Plus motor controllers offer advanced features that ensure reliable, energy-efficient, and safe operation across various industrial applications. Designed to meet the demanding requirements of sectors such as mining, petrochemical, food processing, and machine tools, the SMC Plus provides optimal performance in various environmental conditions. With a focus on flexibility, these controllers support multiple starting modes, including Full Voltage, Current Limit, and Soft Start, allowing users to select the best solution for their specific needs. The SMC Plus also incorporates energy-saving capabilities and robust motor protection features to enhance operational efficiency and prolong equipment life. Additionally, its versatile control options, including Soft Stop, Smart Motor Braking, and Pump Control, ensure precise speed management and reliable braking for automation systems. Whether it’s handling high loads, preventing motor damage, or reducing energy consumption, the SMC Plus stands as a versatile and dependable solution for industries worldwide. In this article, we will discuss the features, benefits, and applications of SMC Plus in detail.

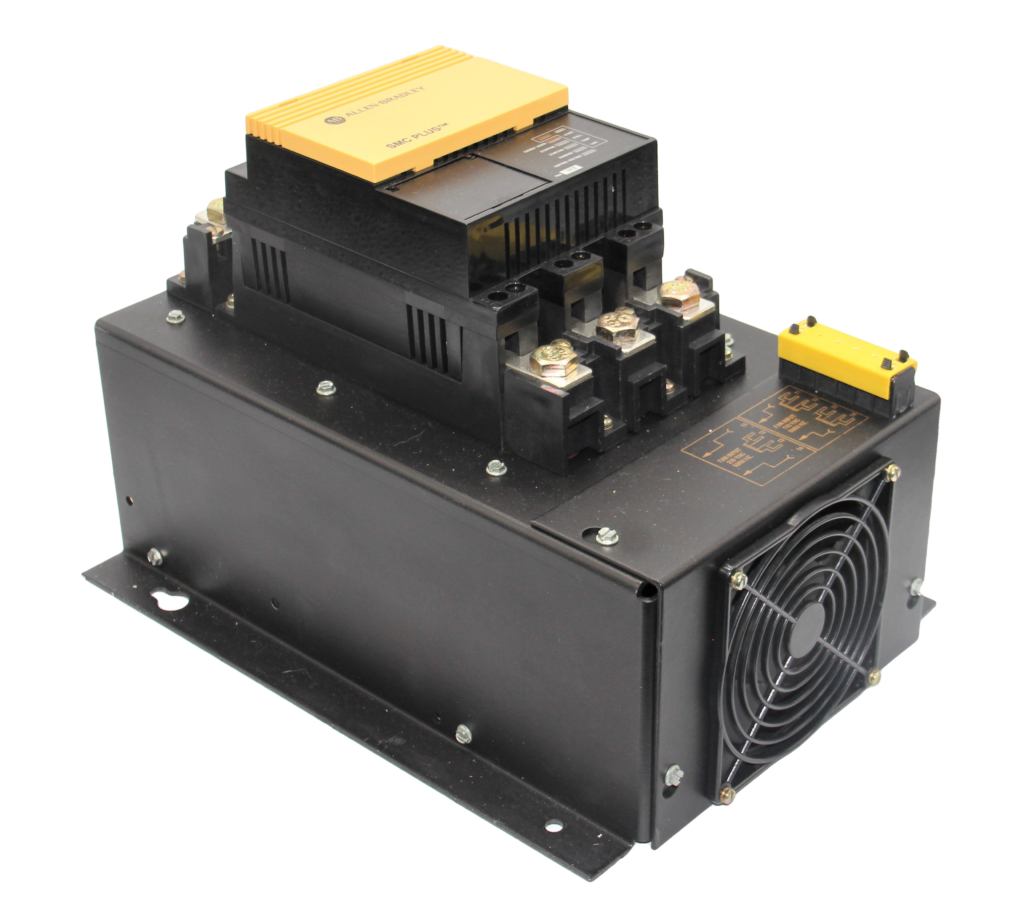

Features of SMC Plus

Environmental Specifications

The SMC Plus is designed to function dependably in a variety of environmental circumstances. It can perform in a range of climates since it functions between 32°F and 122°F (0°C and +50°C). It is appropriate for both dry and humid conditions since it can withstand relative humidity levels ranging from 5% to 95% (non-condensing). The device can withstand temperatures ranging from -40°F to 185°F (-40°C to +85°C) when stored. The SMC Plus is made to last; it can tolerate vibrations of 2.5 G for 60 minutes and shocks of up to 30 G for 11 milliseconds. Its sturdy construction guarantees dependable operation without derating at elevations of up to 6560 feet (2000 meters). Because of these environmental qualities, the SMC Plus is a reliable and adaptable option for demanding applications.

Voltage Ratings

Flexible voltage choices are built into the SMC Plus to accommodate a range of power needs. With a tolerance of +10% or -15%, its Power Module Input Voltage can handle three-phase systems with voltages between 200 and 480V AC and 200 and 600V AC. It is appropriate for worldwide applications because of its adaptability, which guarantees compatibility with common industrial power supplies at different voltage levels. With particular ranges of 110 to 120V AC and 220 to 240V AC, the Control Module Input Voltage offers strong support for single-phase systems running at 100 to 240V AC (+10% or -15%). Because of its versatility, the SMC Plus is perfect for establishments with different power supply configurations, guaranteeing steady performance in single-phase installations. The SMC Plus boasts a high Repetitive Peak Inverse Voltage (PIV) Rating to ensure operating safety and dependability. Line voltages between 200 and 480V AC are rated at 1400V AC; line voltages between 200 and 600V AC are rated at 1600V AC. These ratings show how well the controller can withstand brief voltage spikes, increasing its robustness and safeguarding linked systems. Because of its high PIV rating and wide voltage compatibility, the SMC Plus provides reliable operation in a variety of electrical situations.

Operating Frequency and Current Ratings

With its dependable voltage and current handling capabilities, the SMC Plus ensures peak performance across a range of applications. Its power and control modules comply with international power standards, as it functions smoothly with an input AC frequency of either 50 or 60 Hz. Nominal current ratings for the SMC Plus vary widely, from 24 to 1000 Amps. Because of its adaptability, it can handle a range of load requirements, making it appropriate for both high-current and low-current industrial applications. The SMC Plus offers reliable and effective performance in a variety of operating settings because of its flexible frequency range and strong current handling capabilities.

Functional Design Specifications of SMC Plus

Motor Protection and Energy Efficiency

The SMC Plus motor controllers feature advanced pre-start and run protection against shorted SCRs and phase loss, ensuring enhanced motor safety. Stall protection provides added security during motor starting and running conditions. The built-in Energy Saver optimizes power usage in low-load conditions by monitoring motor load and reducing output voltage via SCRs to minimize losses. However, the Energy Saver cannot be enabled when using an IEC/NEMA bypass contactor.

Control Wiring and Additional Features

SMC Plus controllers support both 3-wire and 2-wire control circuits, making them versatile for various automation applications. They include auxiliary contacts (1 N.O. and 1 N.C.) for configurable operations and rotary switches for wiring adjustments. Diagnostic LEDs provide real-time status, such as starting mode, faults, and energy-saving status.

Benefits of SMC Plus

Adaptable Beginning Techniques

SMC Plus provides various beginning modes, such as Soft Start, Current Limit Beginning, and Full Voltage Starting, so customers may choose the one that best suits their particular automation requirements. These choices provide dependable performance in various applications by minimizing torque spikes, reducing motor stress, and ensuring smooth motor acceleration.

Efficiency in Energy Use

The Energy Saver function aids in power optimization by modifying output voltage to reduce motor power losses under low-load circumstances. This energy-efficient operation enhances system performance and lowers operating costs in automated activities.

Improved Stopping & Braking

SMC Plus offers longer coast-to-rest times and quick braking with features including Soft Stop and Smart Motor Braking (SMB). In a variety of industrial applications, these characteristics assist in reducing load shifting and guarantee safe, controlled motor stopping.

Accurate Speed Management

Users may adjust motor speeds for exact alignment, placement, and controlled braking using the Preset Slow Speed and Slow Speed with Braking choices. This guarantees precise performance in applications that call for particular motor speed modifications.

Dependable Pump Management

A Pump Control option in SMC Plus regulates motor acceleration and deceleration to lessen fluid surges in centrifugal pump systems. By lowering the possibility of harmful fluid surges during pump starts and pauses, this feature improves system stability.

Applications of SMC Plus

Mining and Industrial Processes

For demanding industrial applications, the SMC Plus motor controllers are adaptable solutions. They are excellent in the mining and metals sector, powering machinery including rock crushers, grinders, rollers, and hammer mills. Their effectiveness extends to process equipment such as centrifugal pumps, shredders, slicers, and tumble machines, as well as material handling systems like belts and roller conveyors. Furthermore, SMC Plus controllers provide dependable and energy-efficient operation of HVAC and utility systems, such as dust collectors, chillers, fans, and compressors.

Transport Systems and Machine Tools

The SMC Plus motor controllers are designed for a wide variety of industrial applications and provide dependable performance in machine tools and transport systems. They provide smooth operations and are perfect for material handling conveyors, palletizers, and trolleys. The SMC Plus is also excellent at powering presses, grinders, rotary tables, ball and roller mills, and other equipment, which makes it appropriate for precision machining. Additionally, it supports compressors, fans, and centrifugal pumps, guaranteeing effective performance in fluid management and HVAC systems.

Food and Beverage Applications

Applications involving food processing may be made more automated and efficient with the help of SMC Plus motor controllers. They provide accurate operation and process uniformity by powering necessary devices such as centrifuges, agitators, mixers, and centrifugal pumps. They also assist fans, compressors, dryers, and separators for optimum system operation. SMC Plus controllers are utilized with bottle washers, palletizers, slicers, and hammer mills, and they are perfect for high-demand jobs. They provide energy efficiency and dependability in a variety of food production operations.

Petrochemical Industries

The SMC Plus motor controllers are built to withstand the demanding requirements of the petrochemical sector, guaranteeing dependable and effective operation. They are perfect for supplying electricity to vital devices, including centrifugal pumps, mixers, agitators, and centrifuges. They also provide steady and reliable performance for heavy-duty applications, including extruders, screw conveyors, and ball mills. Because of their capacity to manage fans and compressors, SMC Plus controllers offer reliable solutions for fluid management, material handling, and processing in petrochemical settings.

Final Thoughts

In conclusion, the SMC Plus motor controllers offer a robust and versatile solution for a wide range of industrial applications. With features such as adaptable starting methods, energy-efficient operation, and advanced motor protection, they ensure reliable performance across diverse sectors like mining, petrochemical, food processing, and machine tools. The controllers’ flexible voltage and current ratings, along with their ability to withstand various environmental conditions, make them suitable for both low and high-demand applications. The built-in energy-saving features and precise speed management enhance operational efficiency and reduce energy consumption, reducing operational costs. Furthermore, with control options like Soft Stop, Smart Motor Braking, and Pump Control, the SMC Plus provides enhanced motor protection, smooth acceleration, and controlled braking for a range of automation systems. Overall, the SMC Plus motor controllers stand as a dependable, energy-efficient, and adaptable solution for industrial applications, ensuring optimal performance, safety, and longevity in a variety of demanding environments.
