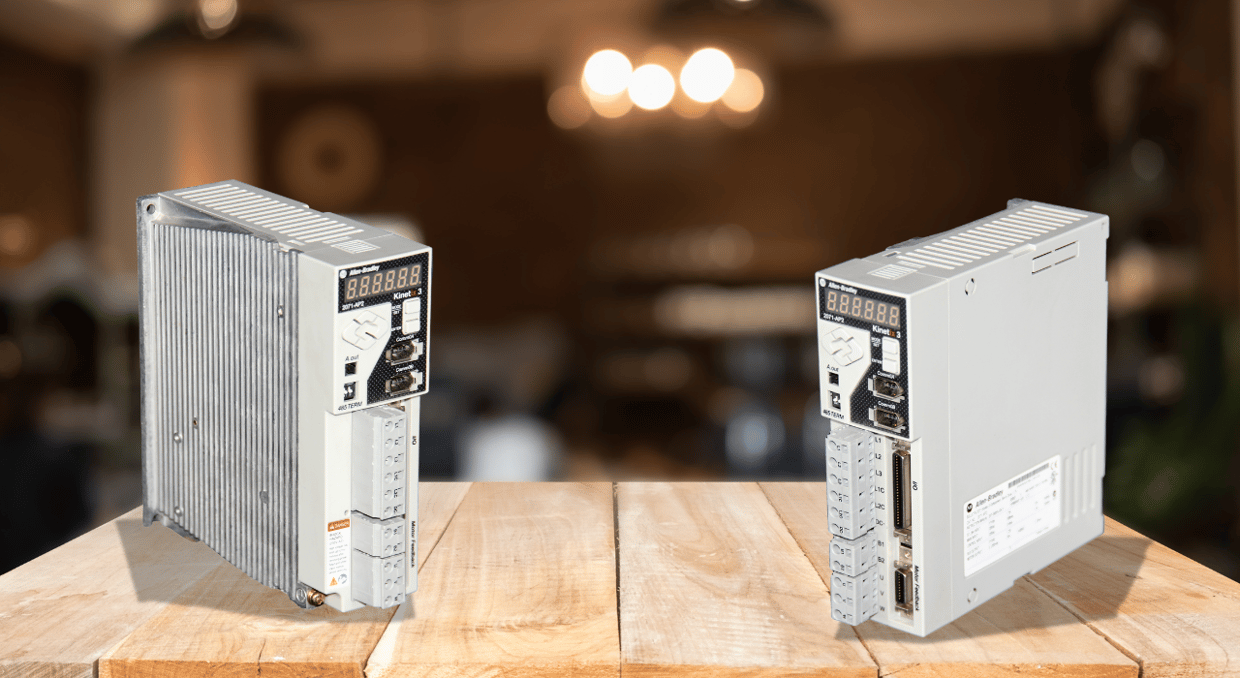

Compact and Capable: What You Can (And Can’t) Do With a Kinetix 3 Servo Drive

The Rockwell Automation Kinetix 3 servo drive is a small, affordable motion control solution for small-scale automation. Nonetheless, its applications and weaknesses are determined largely by the motor system with which it is integrated. Hence, one must acquaint themselves with its scope of operation before installing it.

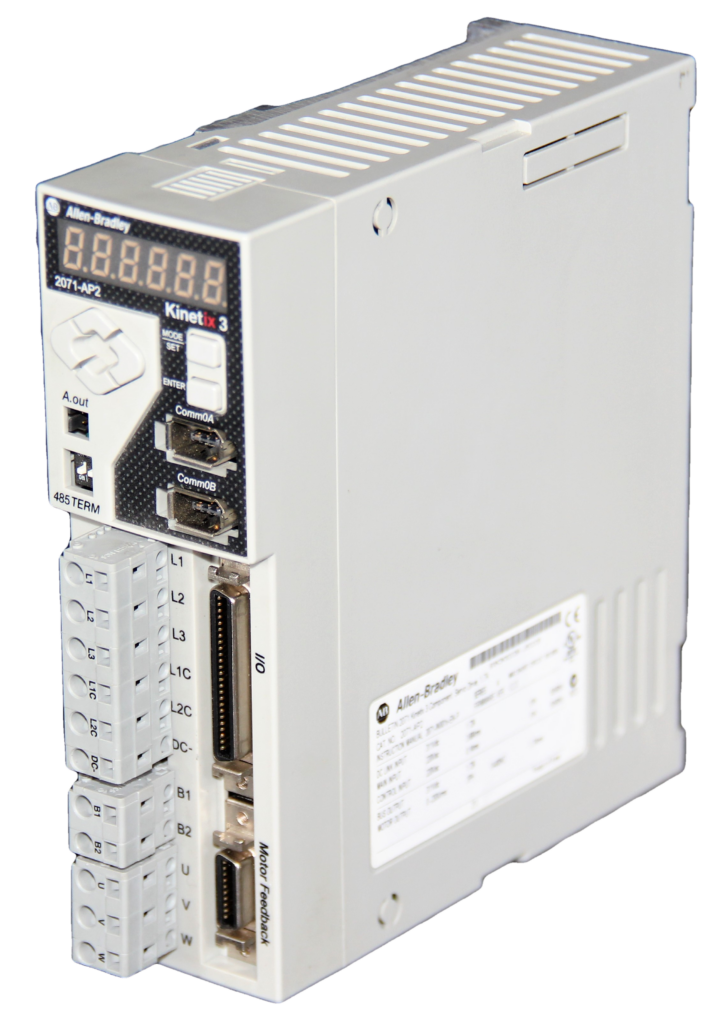

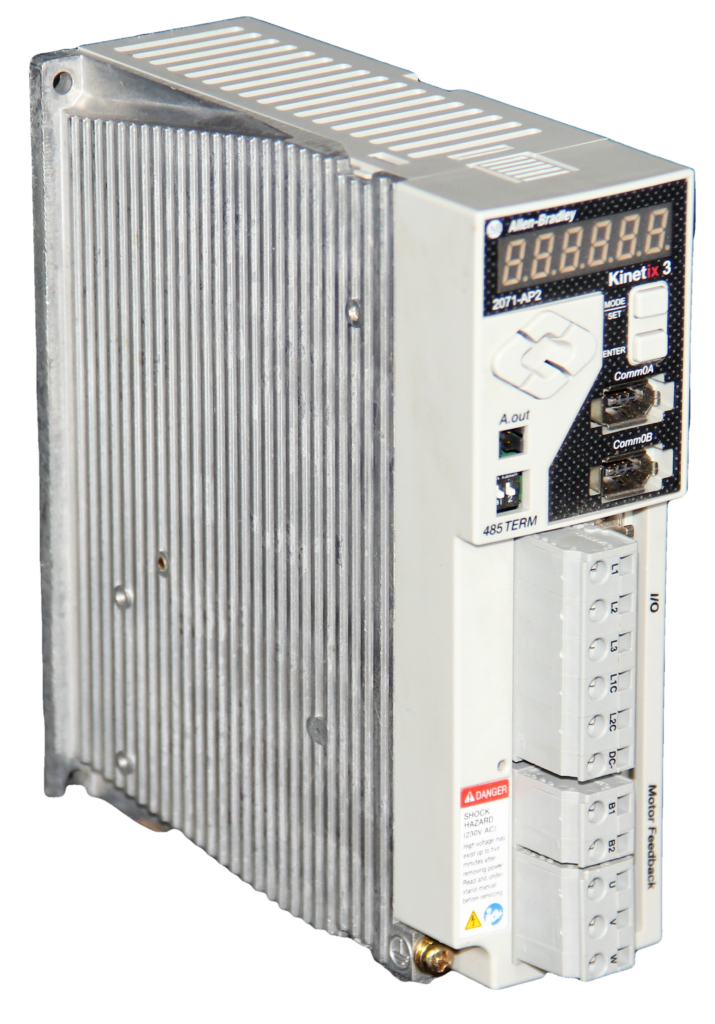

Kinetix 3 Drive Modules

Various modules with varying power outputs and input voltages are available for Kinetix 3. The 2071-A15 (50W, 0.85 A peak) has the lowest power capacity of all the modules. Mid-range models like 2071-AP8 (800 W) and 2071-A10 (1.0 kW) are also available, and select models support single—or three-phase 240V AC inputs.

Essential Accessories for Kinetix 3 Integration

In order to take advantage of the Kinetix 3’s capability, some key accessories are necessary. Configuration and control cables like the 2090-CGMPC05-23AAxx are needed for PC programming and diagnostics, while the 2090-CGMC005-48AAxx allows Modbus-RTU communication with MicroLogix PLCs.

Drive-mounted breakout boards improve system connectivity. The 2071-TBMF (20-pin) board for motor feedback needs an ER14252 lithium battery to achieve absolute positioning of TL-Series motors. Its nominal capacity is 1.2 Ah with a current discharged of 0.5 mA and should not sustain more than 50 mA. The 2071-TBIO, a breakout board with a 50-pin connection, provides an I/O connection, of which only 24 are available. Motor power and feedback cables are to be selected on an individual drive-motor pair basis to ensure compatibility and optimum operation.

Thermal Memory

Another of the Kinetix 3’s strengths is thermal memory, with predictive algorithms forecasting motor temperature during running modes. This yields precise motor protection and minimum downtime from overheating. However, its thermal memory only works when there is control power and does not retain information during power loss, an aspect to keep in mind for operation-demanding applications.

HMI Integration

The drive also supports various human-machine interface (HMI) options, including digital, analog, and Modbus interfaces.

Motor Overload Protection

The Kinetix 3 includes solid-state motor overload protection and is UL 508C compliant. Advanced protection anticipates motor temperature with load-based thermal algorithms to decrease overheating and hence extend motor lifespan. External thermistor support and real-time monitoring add to the protection.

Environmental Specs

The Kinetix 3 can operate in ambient temperatures ranging from 0 to 50°C (32 to 122°F) and can withstand storage temperatures between -25 and +85°C (-13 to +185°F). Its 5–95% non-condensing humidity tolerance ensures functionality in various climates.

It runs up to 1000 meters (3281 feet) without derating and up to 3000 meters (9843 feet) with appropriate power reduction. It also withstands mechanical stress, with vibrations ranging from 5 to 500 Hz and shock pulses of 15 g for 11 ms. Because of these stringent specifications, it serves as a competent choice for industrial settings with severe environmental requirements.

Capabilities and Limitations

TLY-Series (Bulletin TLY) Low-Inertia Motors

The Kinetix 3 accommodates incremental and absolute encoders and TLY-Series motors with feedback system flexibility. Brake and non-brake configurations are accommodated, and vertical loads or precision stops are appropriate. Peak torque to 7.0 Nm and motor ratings to 0.84 kW are ideal for pick-and-place, feeders, and indexing. Its power limit, though, inhibits use with high-inertia systems, and inflexible cables do not allow dynamic robotic use. The top speed is only 5000 rpm, eliminating ultra-high-speed processes.

TL-Series (Bulletin TL) High-Resolution Motors

These TL-Series motors have true high-resolution feedback, with sub-millimeter repeatability. Compared to TLY motors, they have a higher peak torque of up to 14.0 Nm and power of up to 1.44 kW but are better suited to torque-intensive duty. Braking features improve vertical-application safety. No incremental encoder fallback is available, and non-rigid cabling is a limitation. Speed is not increased from 4500–5000 rpm, and the Kinetix 3’s current capability tends to choke it in long-term high-load applications.

LDAT-Series Integrated Linear Thrusters

Together with LDAT-Series thrusters, the Kinetix 3 is a linear actuation system, ideal for use on press, indexing, or handling applications. Up to 2.9 m/s speed and up to 675 N peak force are attained, depending on the type of thruster. Its integrated, compact form keeps belts and screws to a minimum, saving on mechanical configurations. Its ability is only to support thrusters of Frame 30, not to take absolute feedback, and cabling with limited flexibility to transport platforms. Its high-current versions, up to 12.5 A peak, are subject to thermal faults with sustained loads.

MP-Series Integrated Linear Stages

MP-Series stages are zero-backlash and are suited to cleanroom automation, semiconductor, and medical applications. They offer good response with peak forces of up to 680 N and rates of up to 800 mm/s. Continuous-flex cables are offered in some configurations to enhance movement. Heavier multi-axis motion, though, is limited due to the power envelope of Kinetix 3. Stage choices are also fewer than with modular motor families.

TL-Series Electric Cylinders

These cylinders make the Kinetix 3 a linear force system, appropriate for presses, clamps, or part insertion. Units have as much as 2000 N of continuous force, with versions with brakes allowing safe operation when installed vertically. Most configurations, however, require special cabling, and high-force units take a toll on the drive’s electrical and thermal capacity, and frequently need derating.

LDC-Series Iron-Core Linear Motors

LDC-Series motors provide true high-speed linear motion, to 10 m/s permanently and to 12.8 m/s peak. With peak forces of 941 N, they are suitable for laser cutting and high accelerations. Peak currents to 24.3 A, however, tax the upper limits of the Kinetix 3, restricting compatibility to mid- and light-frame versions. Non-rigid cabling is a drawback except when the high-flex versions are specified.

Conclusion

The Kinetix 3 servo drive is an ultracompact, rugged solution ideal for small to mid-size automation, with precision, flexibility, and robust integration. Its multi-motor capability, compliance certifications, and thermal management provide for a universal choice. However, power, cabling, and speed limitations must be considered for appropriate app selection. For pick-and-place, indexing, and light linear motion, the Kinetix 3 shines. But for ultra-high-speed, high-inertia, or heavy-load apps, other drives are better suited. Engineers can appropriately use the Kinetix 3 and unlock its full potential with an awareness of its strengths and weaknesses.
