Efficient Motor Management with SMC 2: Enhancing Automation through Soft Starters

Efficient motor management is critical for enhancing automation, and the SMC-2 series of smart motor controllers excel in this domain. These solid-state controllers are made to start 3-phase squirrel-cage induction motors and provide dependable and flexible operation. Three common beginning modes are supported by the SMC-2 series: full-voltage start, gentle start, and current-limit start. With an extra interface module, soft halting is also possible. The SMC-2 controllers are an important part of modern automation systems since they can be used in both series and motor controller configurations, guaranteeing smooth and effective motor operation. In this article, we will look at some of the features that enable efficient motor management, and then we will discuss a competitive analysis of SMC-2 and other soft starters. Finally, we will look at some of the example modules of this series.

Features that enable Efficient Motor Management

Ratings and Compliance

The SMC-2 controllers comply with strict requirements, such as UL, CSA, and CE. Eight current ratings are offered for these controllers: 5, 9, 16, 24, 35, 54, 68, and 97 amps. Their support for voltage classes ranging from 200-230 Volts Alternating Current, 380-460 Volts Alternating Current, and 500-575 Volts Alternating Current and line- frequencies of 50 Hertz and 60 Hertz ensures the scope of compatibility with multiple industrial settings.

Installation and Configuration

The SMC-2 controllers are manufactured for use in series with electromechanical motor starters and are easy to incorporate and configure. This setup makes installation easier, enables a smooth retrofit connection with current starters, and allows simple digital adjustments. The controllers’ interface option provides direct on/off control, auxiliary connections that may be configured, and an optional soft stop capability to provide operational flexibility.

Energy-Saving Features

An energy-saving function of the SMC-2 controllers minimizes power consumption when the motor is not operating or is only operating at a low speed. With its substantial improvement in energy efficiency, the SMC-2 series has become a more environmentally friendly and cost-effective option for motor management.

Optional Protective Module

For the SMC-2 controllers, a protection module with Metal Oxide Varistors (MOVs) is an optional feature that guards against power line disruptions. This module shields the Silicon-Controlled Rectifiers (SCRs) from noise and surges to ensure dependable operation and the controllers’ lifespan in challenging industrial conditions.

Enclosure Options

The SMC-2 controllers are available in various enclosure choices to accommodate varied installation needs. They offer a range of protection levels and can be purchased in open, IP 54, and IP 65-rated enclosures. With these settings, the controllers can be used safely in different circumstances, from typical indoor settings to harsher ones.

Environmental Specifications

The SMC-2 controllers can best operate within the operating temperature range of 32F-122F since they are made to function in a variety of environments. They are compatible with a wide array of geographic regions since they may be installed at elevations up to 2000m above sea level. Thanks to these strict environmental requirements, the SMC-2 controllers are guaranteed to function at their best in demanding industrial environments.

Comparative Analysis: SMC-2 vs. Other Soft Starters

Concept and Size Indication

The SMC-2 series supports motor sizes with power ratings ranging from 1.5 kW to 450 kW at 400 V. It offers improved soft start/stop capability, greater motor and system protection, and a variety of enclosures to fit varied applications.

On the other hand, a greater variety of power ratings, from 7.5 kW to 850 kW at 400 V, are available with the Danfoss VLT Soft Starter. Its small size enables it to be mounted on a DIN rail and offers advanced control options, complete motor and application protection, and basic soft start/stop capabilities.

Protection and Start/Stop

Features like kick-start, jog, dual parameter function, current limit start, adaptive acceleration/deceleration control, and timed voltage ramp-up are all included in the SMC-2 series. It provides defense against overheating of the starter, undercurrent, imbalanced current, delay in restarting, and other issues.

Quite similar to the SMC-2, DOLD’s soft starters provide configurable ramp time, starting torque, semiconductor bridging after startup, and LED signaling for convenience of use and monitoring. They offer defense against overloads, short circuits, and other electrical malfunctions.

Example of the modules of the SMC-2 series

150-A05FB

Solid-state Smart Motor Controller 150-A05FB from SMC-2 series is intended for effective motor control in industrial automation. It functions with a 380-480 Volt AC, 50-60 Hz supply, and can accommodate 3-phase induction motors up to 5 A, 2.2 kW @ 3 HP. Encased in a robust NEMA Type 4 (IP65) shell, it guarantees dependability even in harsh settings. For convenient monitoring, the controller has LEDs for power and fault alerting. With its miniature size of 122 x 127 x 134 mm and weight of 2 kg, it is easy to install and works best within the temperature range of 0-50 °C.

150-A05NB-8B4-NA

The SMC-2 Series 150-A05NB-8B4-NA, with its sophisticated soft start characteristics, is a prime example of effective motor control. Its operating power ranges from 380 to 480 volts AC, has a current rating of 5 amps, and a control rating of 2.2 kW at 60 Hz. With a metal oxide varistor, it provides strong surge and noise protection and is housed in an open-type enclosure. The user-adjustable features are initial torque settings, selectable starter, and current limit starting mode. Its sleek design ensures efficient performance and simplicity of integration in different industrial automation settings, even under harsh environments.

150-A09FA

The SMC-2 family’s 150-A09FA, with its advanced soft starting characteristics for squirrel-cage motors, illustrates effective motor management. It provides versatility in motor starting with support for three modes: full voltage, current limit, and gentle start. With a 9 Amp and 2 Horsepower rating, it runs on a 3-phase 200-230 Volt AC power supply at 50/60 Hz. Efficiency is improved in low-load circumstances by the built-in energy-saving function. Protective and interface modules for soft stop functionality and line transient protection are optional. It is protected by an IP65-rated NEMA Type 4 enclosure, which guarantees longevity. It is perfect for industrial automation applications because of its 290 x 154 x 140 mm dimensions, allowing it to tolerate various climatic conditions.

150-A135NBDD

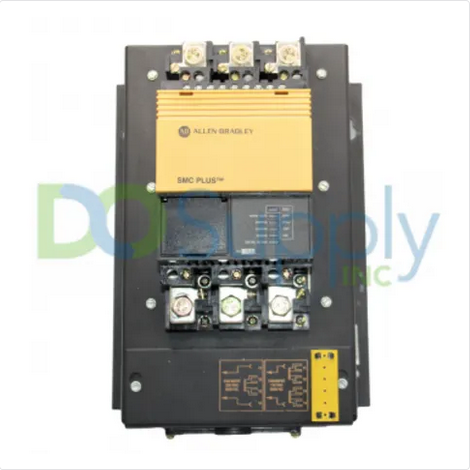

The 150-A135NBDD, part of the SMC PLUS series, is a robust solid-state motor controller designed for efficient motor management and soft starting of squirrel-cage motors. It supports a 3-phase 200-480 Volt AC power supply and provides up to 100 horsepower and 135 amps at 480 AC input. For smooth stopping, it has Smart Motor Braking (SMB). The control module uses 30 VA while operating on a single-phase 100-240 V AC power source, while the heatsink fan uses 45 VA. The controller is adaptable for various industrial applications since it supports a wide range of power ratings and voltage. This module, weighing 11.8 kg and dimensions 336 x 248 x 230 mm, guarantees effective performance with a 490-watt heat dissipation.

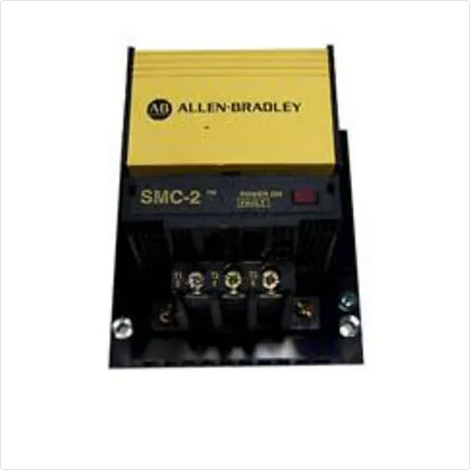

150-A16FC

Part of the SMC-2 family, the three-phase 150-A16FC is a solid-state smart motor controller built for effective motor management. This controller operates between a -15% – +10% voltage tolerance at 500-575V AC. The controller supports up to 16 A of output current, 4 kW at 220 V AC, and 7.5 kW at 380/415/500 V AC. It contains LED status indicators for convenient monitoring and fault detection for stopped motors, phase loss, and shorted SCR. The 150-A16FC has an energy saver for low or no-load situations in addition to rotary and DIP switches for setup. Its three standard operating modes are current limit start, full voltage, and gentle start.

Conclusion

In conclusion, enhancing automation requires effective motor management, where the 150 SMC-2 family of smart motor controllers emerges. These controllers, which enable several beginning modes like current limit start, full voltage start, and soft start, provide dependable and flexible solutions for starting squirrel-cage induction motors. Digital adjustments and simple installation are guaranteed by their seamless integration with electromechanical motor starters. The SMC-2 series is economical and ecologically beneficial because of its energy-saving function, which lowers power usage when there is little or no demand. Furthermore, the optional protection modules increase their longevity by protecting the controllers from power line disturbances. The UL, CSA, and CE-certified SMC-2 controllers are suitable for industrial applications and have several enclosure choices. The SMC-2 series offers strong motor and system safety, customizable setups, and sophisticated features like adaptive acceleration/deceleration control and energy-saving capabilities compared to competitors like Danfoss VLT and DOLD soft starts. The 150-A05FB, 150-A05NB-8B4-NA, 150-A09FA, 150-A135NBDD, and 150-A16FC are a few examples of the SMC-2 series that show off the series’ adaptability and effectiveness in industrial automation. These models demonstrate how the controllers can adapt to different power ratings, voltage classes, and operating conditions, resulting in reliable and effective motor performance. The SMC-2 series greatly improves motor management, which helps create industrial automation systems that are more dependable and efficient.
