Breaking Down Bits, Bytes, Binary, and Baud Rates

Have you ever paused to think about how all the fancy gadgets around us function at their core? It all starts with the humble bit, the smallest unit of data in computing. A bit is like an on-off switch; it can be either a 0 or a 1. These tiny bits are the backbone of every digital communication, from your smartphone’s texts to a car’s sophisticated onboard system.

Now, let’s scale it up a bit. Eight bits come together to form a byte. If the bits were solo artists, a byte would be their rock band. This ensemble is crucial because, with bytes, we begin to see the formation of something meaningful, such as a single character on your screen or a command to a machine. For instance, the letter ‘A’ in ASCII code is represented by the byte 01000001.

Why does this matter in automation? Well, whether programming a PLC (Programmable Logic Controller) to manage a production line or setting up a network of sensors, every instruction sent and received is composed of these bits and bytes. Understanding their structure and function is not just technical know-how; it’s speaking the language of modern machinery. The word ‘byte’ is a clever pun coined to avoid confusion with ‘bit’ during the early days of computer programming. It’s a bite-sized chunk of data!

From Bits to Binary

After our brief overview of bits and bytes, it’s clear these small data units are crucial. Now we can take it one step further and get into binary, the language that transforms these bits into actionable instructions.

Understanding Binary

Binary is more than just a series of zeros and ones; it’s the backbone of all digital technology. Using only two digits, this system efficiently manages complex commands and processes across various devices.

• Streamlined Processing: Binary simplifies the internal workings of devices, allowing them to process commands quickly and efficiently. This is because binary’s two-state system can be directly mapped onto electronic circuits’ physical on/off switches, greatly enhancing processing speed.
• Scalability: From small gadgets to large industrial machines, binary scales beautifully. It enables devices of varying complexities to execute tasks with the same fundamental operations, ensuring consistency across technologies.

Binary in Everyday Automation

Consider a packaging plant where hundreds of items per minute are sorted, labeled, and packed. Each step in this process, from detecting items on a conveyor belt to printing labels and sealing boxes, is controlled by binary signals. Here’s how it might work:

• Sensor Input: Sensors detect an item’s presence, size, and position on the belt, converting physical measurements into binary data.
• Data Processing: A PLC reads this binary data, processes it according to programmed instructions, and sends binary output commands to various machinery parts.
• Action Execution: Actuators receive binary commands to adjust mechanisms, ensuring each item is handled correctly based on its specific characteristics.

Binary and Its Impact on Efficiency and Precision

In automation, the precision of binary code improves process efficiency and reduces errors. For example, precise temperature control in a chemical processing plant is crucial for product consistency. Binary code directs heating elements to switch on or off at exact times, maintaining optimal conditions with high precision.

The Power of 16-Bit Resolution

With a solid understanding of how binary operates within technological systems, let’s shift our focus to 16-bit resolution and its significant impact on industrial automation. This expansion in data representation allows systems to handle more complex and nuanced tasks with increased accuracy.

What is 16-bit Resolution?

A 16-bit system represents data using 16 binary digits (bits), vastly expanding the range of values that can be encoded compared to the standard 8-bit systems. This results in:

• Greater Range: With 16 bits, you can represent up to 65,536 different values (0 to 65,535 for unsigned integers), which allows for finer distinctions between measurements and controls.
• Increased Sensitivity: In automation, sensors can detect and respond to smaller changes, and controllers can make more precise adjustments.

16-Bit in Industrial Application

The jump from 8-bit to 16-bit can be likened to increasing the resolution of a digital image where everything becomes clearer and more detailed. Here’s how that plays out in industrial settings:

• Enhanced Process Control: In manufacturing, precise control over machine operations is crucial. A 16-bit controller can fine-tune machine movements for complex tasks such as assembling intricate electronics, ensuring components are placed with micron-level accuracy.
• Improved Data Analysis: With 16-bit resolution, data collected from production processes is more detailed, allowing for more sophisticated analysis and better decision-making. This can lead to improvements in quality, efficiency, and safety.

Using 16-Bit Resolution in a Production Line

Imagine a beverage bottling plant that implements 16-bit resolution in its filling operations. The difference between an 8-bit and a 16-bit system might be the ability to measure the volume of liquid filled with up to 0.01% accuracy versus 1% accuracy. This higher resolution ensures that each bottle is filled precisely to the specified amount, minimizing waste and ensuring consistency across thousands of bottles.

Understanding the Significance of 32767 in 16-Bit Systems

When programming and testing equipment, values often range from 0 to 32767 or -32768 to 32767 for analog controllers. It’s easy to write it off as “it’s just how it is,” but it is quite beneficial to understand where this value comes from and why it’s so significant.

Why 32767?

32767 is the highest positive integer represented in a 16-bit signed integer system. Here’s the breakdown:

• Binary Representation: In a 16-bit system, each bit represents an on (1) or off (0) value. For signed integers, one bit denotes the sign (positive or negative). This leaves 15 bits to represent the magnitude of the number.
• Maximum Positive Value: With 15 bits (the first bit is 0 for positive values in signed integer representation), the maximum combination of ones (111 1111 1111 1111) equals 32767 in decimal form.

Practical Implications in Automation

In industrial automation, understanding and using the full range of a 16-bit system is crucial for precision and efficiency. Here’s why:

• Sensor Precision: Many sensors in industrial settings, such as pressure or temperature sensors, use 16-bit processors to provide highly accurate readings. The ability to differentiate between -32768 and +32767 allows for detailed data capture over a wide range of values, essential for maintaining strict control over industrial processes.
• Control and Calibration: For equipment that requires precise calibration, such as robotic arms or CNC machines, every single unit of measurement can make a difference in the quality of the final product. Utilizing the full scale from -32768 to 32767 ensures that these machines operate within their optimal range, enhancing performance and reducing the risk of errors.

Example of 16-Bit in Action

Consider a scenario in an automotive assembly line where robotic arms are used for painting cars. The precision in the movement of these arms can be critical to the quality of the paint job. Suppose each possible arm position is encoded within the range of -32768 to 32767. In that case, the control system can precisely adjust the arm’s movement to the smallest fraction of a millimeter, ensuring a flawless finish.

Great! Now, we have our foundation of bits, bytes, and binary. Specifically, what they do and how they’re implemented… But how do these bits and bytes get from point A to point B? This brings us to another crucial concept:

Baud Rates

Imagine you’re at a bustling coffee shop trying to order your favorite drink through the noise. The faster and clearer you can communicate your order, the quicker you’ll get your coffee. This is somewhat similar to how baud rates work in digital communication.

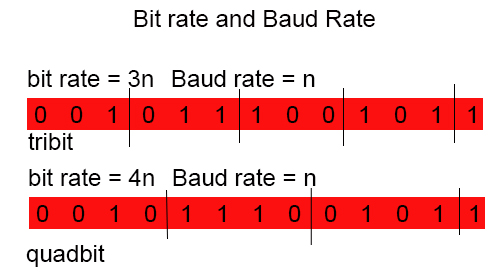

A baud rate measures how many signal changes (transmissions of bits) happen per second in a communication channel. Effective communication is about the speed of message delivery and how efficiently it reaches the intended destination. Higher baud rates mean more bits are being transferred each second, which can be likened to having a faster barista at your service.

Baud rates are crucial in industrial automation. They determine how quickly a sensor can relay information to a control system or how fast a command reaches a robotic arm. Think of a conveyor belt in a manufacturing plant: if the baud rate is too low, the system might receive commands too slowly, causing bottlenecks and potential mishaps.

Interestingly, the concept of baud rates dates back to telegraph operators who measured the speed of telegraphy in ‘Bauds,’ named after Émile Baudot, a pioneer in telecommunication. It’s incredible how this concept has sustained our factories and machines, proving that good ideas are timeless and reliable.

How it all Works

To fully appreciate the interplay between bits, bytes, and baud rates, let’s consider how these elements are implemented in equipment from Allen-Bradley, a renowned manufacturer in the industrial automation sector.

Allen-Bradley PLC’s

Allen-Bradley PLCs are at the heart of many manufacturing processes. These controllers use bytes to process inputs and outputs that control machinery on the production floor. For instance, a typical PLC might manage the operations of a bottling line, where it receives sensor data (in bits) about bottle placement, fill level, and cap alignment. The byte-sized instructions then dictate the actions of the conveyor belts and filling apparatus, ensuring precision and efficiency.

The baud rate is critical here; a higher baud rate means faster communication between the PLC and the sensors, which is essential for real-time adjustments during high-speed production. This setup demonstrates the balance between byte size for commands and the baud rate to handle the rapid data flow, maintaining the delicate dance of timing and execution.

Allen-Bradley Variable Frequency Drives (VFDs)

Allen-Bradley variable Frequency Drives control the speed and torque of electric motors in industrial settings. The VFD receives command bytes that determine motor operation parameters, while sensors provide real-time feedback in bytes about current speed and load conditions. These bytes of data are crucial for precise motor control, especially in applications requiring variable speeds, like fans, pumps, and conveyors.

The baud rate in VFD systems ensures that the feedback loop between the motor and control system is tight enough to respond instantly to load or operating conditions changes. This responsiveness is vital for reducing energy consumption and wear on mechanical components, showcasing how baud rates enhance system efficiency.

Allen-Bradley Safety Relays

Safety relays are critical components in automated safety systems. They ensure that all parts of a production line halt immediately in case of a problem. These relays operate by constantly receiving and sending bytes of data that monitor various safety parameters, such as emergency stop button statuses or guard door locks.

Here, the baud rate ensures that the safety signals are transmitted and received quickly and reliably. Even a slight delay caused by a low baud rate could be critical in emergencies, highlighting how essential proper baud rate configuration is to industrial safety.

Final Thoughts

Our exploration of the digital foundations of industrial automation has revealed how deeply embedded these concepts are in the efficiency, precision, and evolution of automated systems, from the simplicity of bits to the complexity of 16-bit resolution. Bits and bytes are more than just data elements; they are the fundamental building blocks that drive the entire automation landscape. A single bit’s on-off capability might seem trivial, but combined into bytes, they create a binary language that machines understand and depend entirely on.

As we’ve seen, binary is the essential code that bridges human commands and machine actions. Whether it’s controlling a conveyor belt’s speed or adjusting a sensor’s sensitivity, binary allows these instructions to be communicated clearly and precisely. The transition from bits and bytes to binary is a step up in complexity and a leap toward enabling sophisticated and seamless automation processes.

With 16-bit resolution, the narrative expands to encompass even greater detail and finer control. In industries where achieving precision is of utmost importance, such as pharmaceutical manufacturing or precision engineering, the difference between having just 256 levels of measurement versus a higher number like 32767 can be significant. With a higher resolution, automated systems can function with near-perfect accuracy, which is crucial for maintaining quality assurance and complying with regulations.

Finally, baud rates tie all these elements together by determining how quickly and efficiently this data can be communicated across systems. The right baud rate ensures that no matter how complex the data, it moves smoothly and promptly from sensors to processors, processors to actuaries, and machines back to monitoring systems, closing the loop on a highly integrated automation network.

As we look to the future of industrial automation, the integration of these digital components, bits, bytes, binary, and baud rates, will only deepen. Innovations in technology will likely push the boundaries of what’s currently possible, making understanding these basic elements more crucial than ever. For anyone involved in designing, operating, or maintaining automated systems, grasping these concepts isn’t just beneficial, it’s essential.

As automation grows more intricate and pervasive, the demand for precision, speed, and efficiency will escalate. The foundational knowledge of how data is structured, communicated, and controlled will empower professionals to innovate, troubleshoot, and optimize with greater confidence and success.
