Top PowerFlex Drives for Harsh Environments: Which Model is Right for You?

In harsh industrial environments, selecting the right PowerFlex  drive is essential for ensuring reliable motor control, efficiency, and durability. Allen-Bradley’s PowerFlex series offers a range of high-performance drives, each designed to meet specific application needs, from compact, space-saving options to heavy-duty, high-power solutions. Whether you require rugged enclosures for dust and moisture protection, advanced networking capabilities, or precise motor control, there is a PowerFlex drive suited for your operation. This guide explores the top PowerFlex models, highlighting their features, and helping you determine which drive is best suited for your harsh industrial environment.

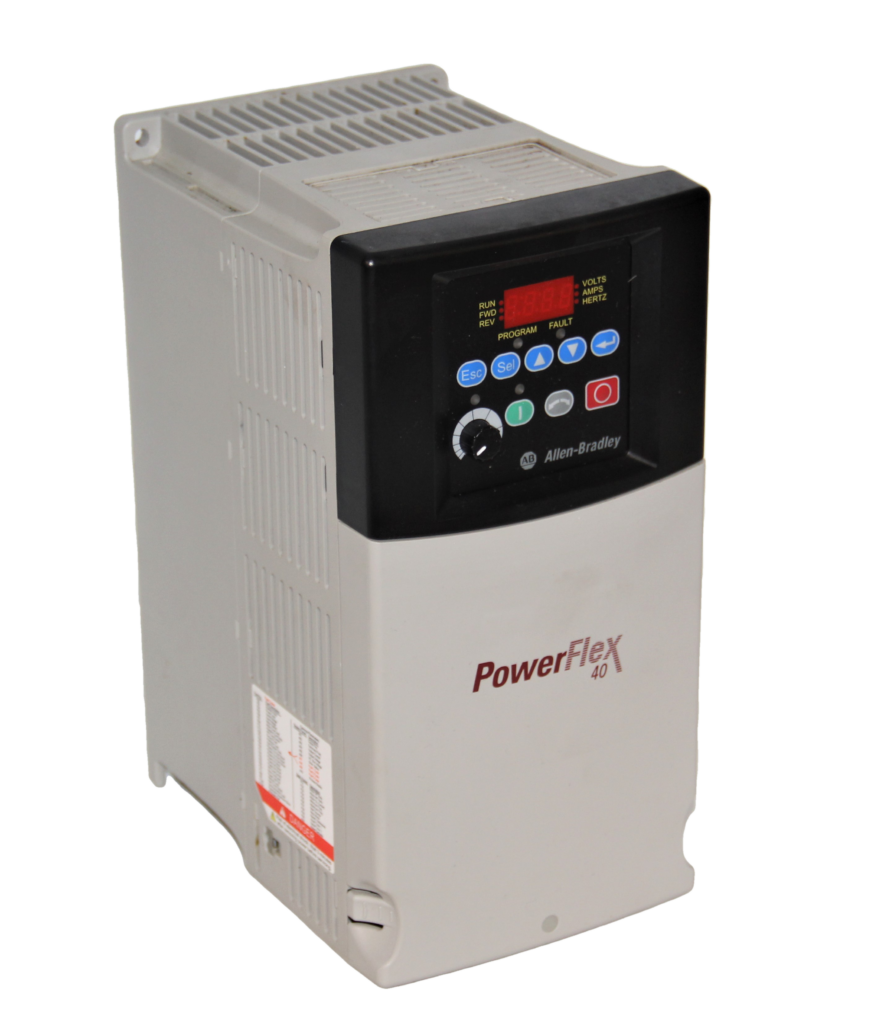

PowerFlex 40 series

The PowerFlex 40 series is a reliable choice for demanding industrial environments, offering robust performance in machine tools, conveyors, fans, and pumps. With voltage classes ranging from 120V to 600V AC and power ratings up to 15 HP, it supports vector control, sensorless vector control, and position control for precise motor operation. Built for flexibility, it features an RS-485 port with optional Ethernet, BACnet, and DeviceNet communication. For harsh environments, IP 66 enclosures provide protection against dust, moisture, and contaminants. Operating temperatures up to 50°C ensure durability. If your application demands a compact, versatile AC drive that withstands tough conditions, the PowerFlex 40 is a strong contender.

PowerFlex 525 series

With integrated Ethernet and sophisticated motor control for dependable performance, the PowerFlex 525 series is a flexible choice for harsh industrial settings.  It performs exceptionally well in tough applications like compressors, pumps, and conveyors since it can handle up to 30 HP and 100–600V AC.  Its USB connectivity makes configuration easier, and its modular architecture enables speedy installation.  Precision is improved by sophisticated control techniques including sensorless vector control and closed-loop velocity vector.  The IP 66-rated enclosures guarantee longevity in harsh environments by protecting from dust, moisture, and pollutants.  Device Level Ring topology in dual-port Ethernet improves communication dependability.  The PowerFlex 525 is a strong option for a high-performance, durable AC drive with smooth networking and excellent positioning control.

PowerFlex 700 series

For tough industrial applications including lifting, positioning, and oil wells, the PowerFlex 700 series is a potent option.  It accepts 200V to 690V AC input classes and has a power rating of up to 150 HP, making it ideal for 3-phase induction motors.  It is resistant to dust, dampness, and adverse circumstances thanks to enclosures that have an IP 54 rating.  Performance is improved by internal brake resistors, EMC filtering, and communication interfaces; LCD HMIs make setup easier.  A smooth integration into industrial networks is ensured by optional USB, Ethernet, ControlNet, and DeviceNet connectivity.  It is perfect for harsh locations since it can operate at temperatures as high as 50°C.  The PowerFlex 700 is a great option if you want a space-efficient, high-power AC drive with sophisticated management. If you would like to see what makes these drives a good candidate for todays automation industry, we have an article here for you to check out!

PowerFlex 400 series

The PowerFlex 400 series is ideal for variable torque applications, such as fans, pumps, and blowers, in demanding environments. With power ratings up to 350 HP at 480V AC, it provides efficient speed control and multiple stop modes, including ramp, coast, and DC brake. Designed for durability, it offers IP 20 and flange-mounted enclosures to ensure reliable operation in industrial settings. Integrated motor overload and over-temperature protection enhance safety, while the built-in HMI with a 16-character LCD simplifies programming. RS-485 connectivity and optional Ethernet, BACnet, and Profibus DP support enable seamless integration. If you need a high-power, rugged AC drive for HVAC and mechanical applications, the PowerFlex 400 is a dependable choice.

PowerFlex 755 series

With its sophisticated motor control and built-in safety measures, the PowerFlex 755 series is an excellent option for demanding industrial settings.  It is made for fans, pumps, and conveyors and is compatible with 200V to 690V AC. It is available in IP 00, IP 20, flange-mounted, and IP 54 enclosures, which protect from moisture and dust.  While Automatic Device Configuration makes setup easier by collecting settings from Logix controllers, EtherNet/IP connection allows smooth communication in ring, star, and linear topologies. It provides an affordable choice for high-power applications with pre-engineered power option bays.  A dependable option if you want a high-performance, adaptable drive for harsh environments is the PowerFlex 755.

PowerFlex 4 series

For severe locations where simplicity and space are crucial considerations, the PowerFlex 4 series offers a small and affordable option.  It offers sensorless vector control for optimal torque at different speeds and dependable motor speed control with 0.25 to 5 HP over 100V to 480V AC.  IP 66-rated enclosures are made to last and are perfect for harsh industrial environments since they are impervious to moisture and dust.  Pre-programming is not necessary thanks to the integrated keypad, which guarantees simple operation. Software solutions and remote keypads provide versatility, while Logix compatibility streamlines parameter configuration.  The PowerFlex 4 is an excellent option for OEMs and businesses needing effective, compact AC drives under challenging circumstances because of its operating temperature of up to 50°C.

PowerFlex 527 series

The PowerFlex 527 series is a great option for demanding industrial settings.  In variable frequency applications, it guarantees dependable performance by supporting 0.5 to 30 HP over 100V to 600V AC.  It meets international safety standards (RCM, CE, TUV, KCC, EAC) and improves operating safety with safe torque-off capability.  In industrial automation configurations, the versatile network architecture offered by dual Ethernet ports guarantees seamless communication.  It is robust in harsh environments because of its IP-rated enclosures and operating temperature range of -20°C to 50°C.  The PowerFlex 527 is a robust, future-ready option if you want a fully integrated, network-ready AC drive for harsh settings.

PowerFlex 70 series

With its advanced AC drive control for fans, extruders, and other demanding applications, the PowerFlex 70 series is a reliable option for challenging industrial settings.  It guarantees effective motor performance with output ratings of up to 50 HP and compatibility with 240V to 600V AC.  Superior protection against dust, moisture, and adverse circumstances is offered by IP 66-rated enclosures, and installation flexibility is increased by flange-mounted and zero-stacking choices.  Reliability and safety are increased by sophisticated features including droop control, inertia ride-through, slip compensation, and safe torque-off.  Dynamic braking resistors and integrated EMC filtering maximize performance, while available communication adapters facilitate smooth integration.  A reliable option if you want a high-performance, adaptable AC drive for harsh environments is the PowerFlex 70.

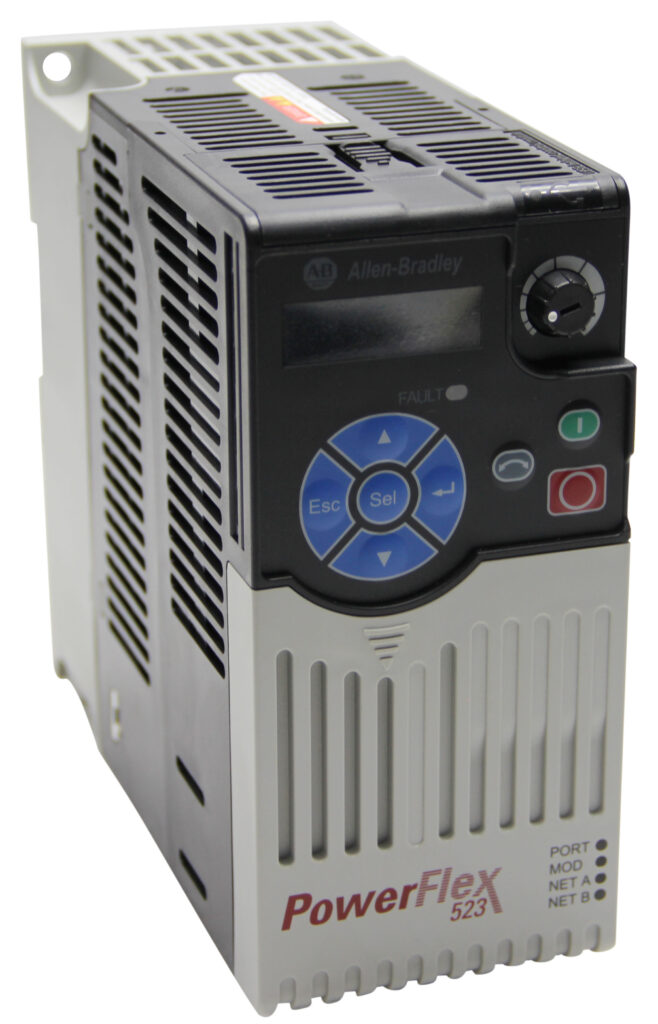

PowerFlex 523 series

With compatibility for motors up to 30 HP and 100V to 600V AC, the PowerFlex 523 series is a small yet effective option for demanding industrial settings.  Its sensorless vector control and volts per hertz make it ideal for shared DC bus deployments, guaranteeing effective operation under taxing circumstances.  It is perfect for harsh environments because of its IP-rated enclosures and cooling fan, which can operate in temperatures ranging from -4 to 158°F.  In addition to the built-in RS-485 connectivity, extra kits offer DeviceNet and ProfiBus functionality. The PowerFlex 523 is an excellent option if you’re looking for an affordable, high-performance AC drive designed to withstand harsh environments.

PowerFlex 700S series

High-performance AC drives in the PowerFlex 700S series are developed for demanding applications that call for accurate motor control in challenging industrial settings.  It performs exceptionally well in heavy-duty tasks because of its 1600 HP power ratings and compatibility with 200V to 690V AC.  SynchLink fibre-optic technology guarantees high-speed data transfer for synchronized systems, while IP 56 and NEMA/UL Type 1 enclosures offer defense against dust and moisture.  For improved precision, the drive provides a variety of feedback choices, such as incremental encoders and resolvers, and enables flux vector control.  Integration is enhanced with Ethernet, ControlNet, and serial connection modules.  The PowerFlex 700S, which has ATEX, CE, and UL certifications, is a dependable, powerful option for businesses that work in harsh environments.

Which Model is Right for You?

Choosing the right PowerFlex drive for harsh environments depends on your application needs, power requirements, and environmental conditions. For heavy-duty industrial applications, the PowerFlex 700S and PowerFlex 755 offer high-performance control and advanced networking options. If you need cost-effective, compact solutions, the PowerFlex 4, 523, and 525 provide reliable motor control with space-saving designs. For fan, pump, and extruder applications, the PowerFlex 70 and 400 are ideal, offering versatile enclosure options. If integrated safety and precise control are key, the PowerFlex 527 is a great choice. Assessing your power, environment, and control needs ensures the best selection for your operation.

Final Thoughts

In conclusion, selecting the right PowerFlex AC drive for harsh industrial environments is crucial for ensuring long-term reliability, efficiency, and performance. Allen-Bradley’s PowerFlex series offers a diverse range of solutions, from compact drives for space-limited applications to high-power units for demanding conditions. Whether you need advanced networking, precise motor control, or rugged enclosures, there is a model to fit your needs. By assessing factors like power requirements, environmental challenges, and application demands, you can choose the most suitable drive for optimal performance. Investing in the right PowerFlex drive enhances productivity, reduces downtime, and ensures seamless operation in the most challenging environments.
