Energy Savings Simplified: What the SMC 2 Brings to the Table

Optimizing motor control is key to reducing costs and improving efficiency in today’s energy-conscious world. The Allen-Bradley SMC-2 series of smart motor controllers offers a versatile, energy-efficient solution for industrial applications. Supporting multiple voltage classes, flexible configurations, and intelligent energy-saving features, the SMC-2 minimizes power waste while ensuring seamless motor performance. With protective modules, advanced starting modes, and compliance with international standards, it enhances both reliability and sustainability. This article explores different features of the SMC-2 series, including models like 150-A05FA, 150-A05NB, and 150-A05JA, simplifies energy savings, and delivers cost-effective motor control solutions.

Features of SMC-2 that Assist in Energy Saving

Voltage Flexibility

Multiple voltage classes, such as 200–230V AC, 380–460V AC, and 500–575V AC, are supported by the SMC-2.  Its versatility ensures interoperability with diverse power systems around the globe, making it appropriate for a range of industries and applications.  Businesses may simplify their motor control systems and cut installation and operating expenses by supporting a wide variety of voltages without needing extra equipment.  This adaptability also improves energy economy by enabling motors to run within their ideal voltage range, avoiding needless power losses, and guaranteeing steady performance under various conditions.

Protective Module for Enhanced Efficiency

Using MOVs (Metal Oxide Varistors), a surge and noise protection module may be added to the SMC-2. This safeguard reduces power fluctuations that might result in energy waste or system failures, ensuring steady motor performance. In addition to extending equipment life and preserving energy efficiency, the protection module protects the motor controller from voltage fluctuations. Maintaining dependable and economical motors running in settings with erratic power circumstances requires this capability.

Current Rating and Operating Frequencies

The SMC-2 smart motor controllers are available in eight current ratings: 5, 9, 16, 24, 35, 54, 68, and 97 Amps, ensuring flexibility across various motor sizes and industrial applications. This range allows businesses to select the most energy-efficient option based on their specific motor requirements, preventing excessive power consumption and reducing operational costs. Additionally, the SMC-2 supports both 50 Hz and 60 Hz line frequencies, making it compatible with global power systems. This adaptability ensures seamless integration into different electrical grids, optimizing motor efficiency while maintaining stable and reliable performance across diverse operating conditions.

Modes of Operation in SMC-2 Motor Controllers

The SMC-2 motor controllers offer three standard starting modes to optimize motor performance and energy efficiency.

Soft Starting

This mode applies a variable initial torque (0–70% of locked-rotor torque) and gradually increases motor voltage over an adjustable acceleration ramp (2.0–30.0 seconds). It minimizes mechanical stress and reduces energy spikes.

Full Voltage Starting

Designed for applications needing instant acceleration, this mode sets the ramp time to below 1/10 second, providing direct, across-the-line starting for motors requiring immediate full power.

Current Limit Starting

This mode controls inrush current, allowing users to set a starting current limit (25–550% of full-load current) and a fixed start time. The controller switches to full voltage mode if the motor doesn’t reach full speed by the set time.

These flexible options ensure efficient motor startup, reducing energy waste and optimizing system performance.

Controller Configurations

The Allen-Bradley SMC-2 motor controllers offer two flexible configurations that enhance energy efficiency while simplifying motor control.

Series Controller Configuration

By operating in series with electromechanical motor starters, the SMC-2 allows for easy digital adjustments, eliminating inefficient analog settings. This setup reduces energy waste by ensuring precise motor control and minimizing startup power surges. Its seamless retrofit compatibility also means existing motor starters can be upgraded for improved energy efficiency without extra wiring or modifications.

Controller with Interface Option

Designed for enhanced control, this configuration includes a plug-in module (for 5–16 A models) or an integrated circuit board (for 24–97 A models). The interface option enables optimized energy use, offering direct control, configurable auxiliary contacts, and an optional soft stop feature, preventing sudden power losses.

Both configurations ensure efficient motor operation, helping businesses reduce energy consumption, improve motor longevity, and lower operational costs.

Energy-Saving Mode for Light Loads

One of the standout features of the SMC-2 is its energy-saver mode, which dynamically adjusts power consumption when the motor is operating under light loads or is unloaded. By optimizing energy use, this feature reduces waste and lowers electricity costs without compromising performance. Industries that run motors continuously, such as HVAC systems, conveyors, and compressors, benefit significantly from this capability. It ensures that the motor consumes only the power it needs, preventing inefficiencies that lead to high operational costs and excessive energy waste.

Wide Operating Temperature

The SMC-2 is suitable for a variety of industrial settings since it operates in the temperature range of 32°F to 122°F.  The controller keeps performance and efficiency high without excessive amounts of electricity, whether in cold storage facilities or high-temperature industrial units.  This flexibility guarantees that motors run at their best under all environmental circumstances, avoiding energy losses from overheating or poor performance.  In various environmental circumstances, businesses can rely on the SMC-2 to deliver a reliable, energy-efficient operation.

Compliance with International Standards

The SMC-2 meets CE, CSA, and UL standards, ensuring safety, reliability, and energy efficiency. Compliance with these standards guarantees that the motor controller is designed for optimal performance while meeting regulatory energy efficiency guidelines. Industries looking to improve sustainability and reduce energy consumption can rely on the SMC-2’s compliance with these globally recognized certifications. This ensures operational efficiency and adherence to industry best practices for energy conservation and equipment reliability.

Example Modules

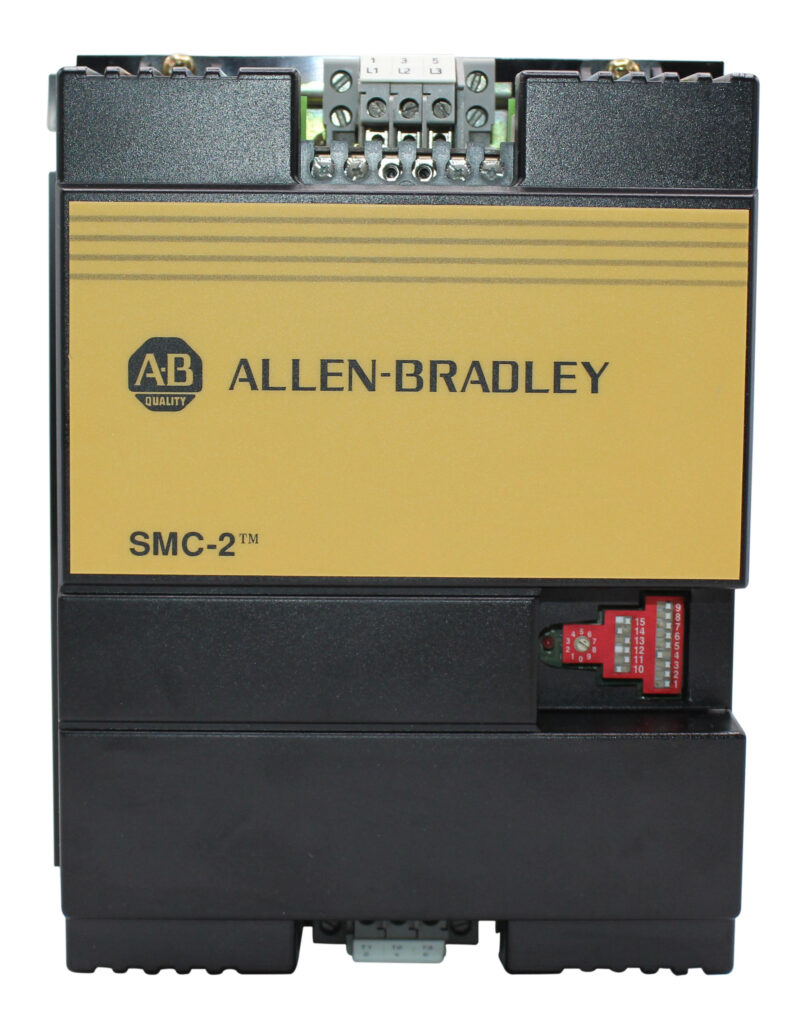

150-A05FA

The 150-A05FA from Allen-Bradley’s SMC-2 series is a solid-state motor controller designed for efficient three-phase induction motor startup. Operating in series with an electromechanical starter simplifies installation by eliminating extra wiring. With a 5A rating, 1 HP capacity, and a built-in energy saver, it reduces power consumption under low-load conditions. Its pre-start protection LED ensures energy efficiency by detecting phase loss or faults. Housed in an IP65-rated enclosure, it supports 200–230V AC and operates in 0–50°C environments. Certified by CE, CSA, and UL, the 150-A05FA enhances motor longevity while minimizing energy waste and costs.

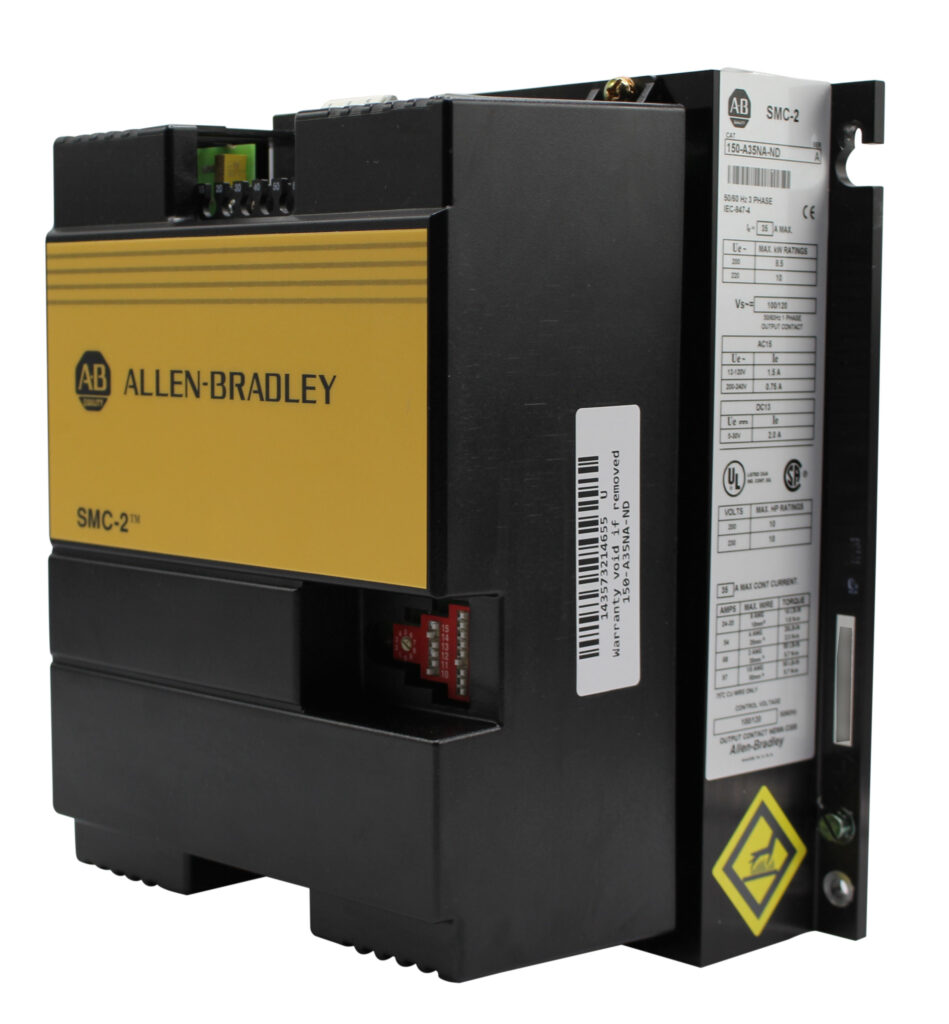

150-A05NB

The Allen-Bradley 150-A05NB is an SMC-2 smart motor controller designed for efficient three-phase motor operation at 380–460V AC with 5A capacity. Featuring an energy-saving mode, it reduces power consumption when detecting light or no loads. It includes LED status indicators for real-time fault detection and DIP/rotary digital switches for easy configuration. Supporting soft start, full voltage start, and current limit start, it optimizes energy use while minimizing electrical stress. Operating at 0–50°C and up to 2000m altitude, the 150-A05NB ensures stable, energy-efficient performance, making it a cost-effective solution for industrial motor control.

150-A05JA

The Allen-Bradley 150-A05JA is an SMC-2 non-combination solid-state controller designed for efficient motor control at 200–240V AC with a 5A rating. Featuring an energy saver mode, it reduces power consumption when the motor is lightly loaded or idle. Its simple controls optimize energy use while ensuring cost-effective scalability. Supporting soft start, full voltage start, and current limit start, it enhances motor efficiency and longevity. With stall protection, thermostat-based temperature control, and LED indicators, the 150-A05JA offers reliable, energy-conscious motor management, making it a smart choice for reducing power waste and operational costs.

Final Thoughts

In conclusion, SMC-2 delivers an energy-efficient, versatile, cost-effective motor control solution for industrial applications. With voltage flexibility, protective modules, multiple starting modes, and energy-saving configurations, the SMC-2 optimizes motor performance while reducing power waste. Its wide operating temperature range and compliance with international standards ensure reliability in diverse environments. Models like 150-A05FA, 150-A05NB, and 150-A05JA exemplify the scalability and efficiency of this smart controller series. By integrating the SMC-2 into their systems, businesses can minimize energy costs, enhance motor longevity, and improve operational efficiency, making it a smart investment for sustainable industrial automation.
