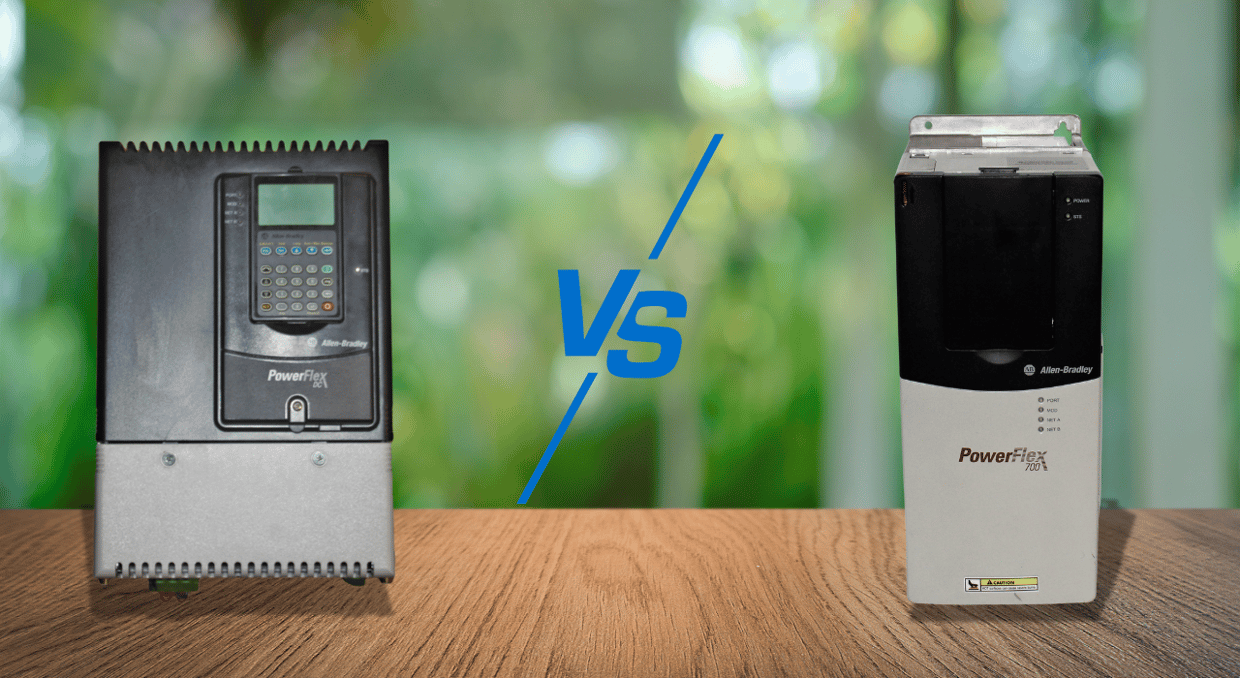

When a PowerFlex DC Drive Outperforms an AC Drive: Use Case Examples

The argument between DC and AC drives is still being debated in motor control and industrial automation.  Although AC drives are now the norm in many applications because of their cost-effectiveness, efficiency, and reduced maintenance requirements, DC drives—especially Rockwell Automation’s PowerFlex DC drives—still perform better in some situations.  This article examines those particular use cases, emphasizing PowerFlex DC drives’ special benefits and why they are essential to several industrial settings.

Understanding the Basics: AC vs. DC Drives

It’s critical to understand the basic distinctions between AC and DC drives before delving into the application cases:

• By altering the frequency and voltage applied to the motor, AC drives regulate the speed of an AC motor.
• By modifying the armature voltage and, occasionally, the field current, DC drives regulate the speed of a DC motor.

DC drives provide greater torque control, easier speed regulation, and better performance at low speeds, making them perfect for some applications. However, AC drives are often more common because they are less expensive and require less maintenance.

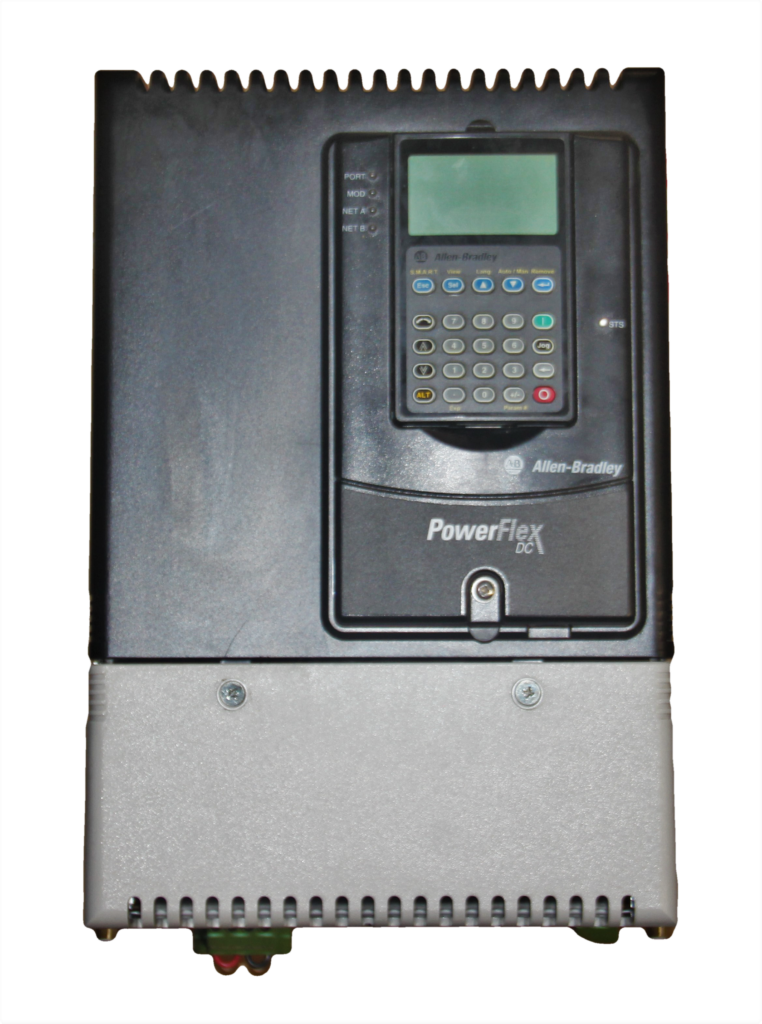

PowerFlex DC Drives: A Brief Overview

The PowerFlex DC drives from Rockwell Automation are intended to provide excellent performance, adaptability, and simplicity of integration.  They provide capabilities like the following and support a large number of applications:

• Capabilities for regeneration
• Sophisticated diagnostics
• Integration with Logix control systems is smooth
• Options for high-speed connectivity (ControlNet, Ethernet/IP, etc.)

 Because of these characteristics, PowerFlex DC drives are an attractive option in situations where accuracy, dependability, and efficiency are crucial.

Now we will look into some use cases:

Use Case #1: Regenerative Applications

Why DC Wins

DC drives with regenerative characteristics provide a notable advantage in applications where energy must be supplied back into the power supply, such as downhill conveyors, elevators, and cranes.

 The PowerFlex DC Benefit

Thanks to their integrated regenerative features, PowerFlex DC drives can effectively return excess energy to the power grid. This saves energy and lessens the requirement for external brake resistors, which are frequently used in AC drive systems.

 Real-World Illustration

A reversing rolling mill in a steel mill has to accelerate and decelerate often. By regenerating energy while decelerating, a PowerFlex DC drive may drastically lower energy expenses and boost system performance.

Use Case #2: High Torque at Low Speeds

Why DC Wins

DC motors have a higher beginning torque by nature and are better at maintaining torque at low speeds than AC motors, which frequently need sophisticated vector control algorithms to perform comparably.

 PowerFlex DC Advantage

PowerFlex DC drives provide accurate torque control without the need for complicated tuning or extra feedback devices. This makes them perfect for devices like winders, mixers, and extruders.

Real-World Illustration

 Extruders in a rubber manufacturing facility need steady torque at low speeds to guarantee the quality of the final product.  Without requiring the intricate calibration of an AC vector drive, a PowerFlex DC drive delivers the required torque

Use Case #3: Legacy System Integration

Why DC Wins

DC motors were the foundation of many earlier industrial systems.  Because of mechanical and electrical incompatibilities, replacing them with AC systems can be expensive and time-consuming.

Benefits of PowerFlex DC drive

They enable establishments to update control systems while keeping their current DC motors.  This prolongs the life of old equipment, decreases downtime, and saves capital cost.

 Real-World Illustration

PowerFlex DC drives were used to improve the control system of a paper mill with decades-old DC motors. This made it possible to integrate with contemporary PLCs and enhance diagnostics without having to replace the motors.

Use Case #4: Precision Speed Control

Why DC Wins

DC drives are perfect for applications that need accurate speed control over a wide range because they provide linear speed-torque characteristics.

 The PowerFlex DC Benefit

Even with variable load circumstances, PowerFlex DC drives provide outstanding speed regulation thanks to their sophisticated control algorithms and high-resolution feedback.

 Real-World Illustration

Maintaining fabric quality in textile manufacturing requires a constant pace.  PowerFlex DC drives provide accurate speed control, which lowers errors and boosts output.

Use Case #5: Heavy-Duty Industrial Applications

Why DC Wins

The durability and torque properties of DC motors are frequently unrivaled in demanding applications including mining, metal processing, and large-scale manufacturing.

PowerFlex DC Advantage

PowerFlex DC drives are designed to easily manage applications requiring high current and high torque. Due to their robust architecture and thermal management features, they are appropriate for tough situations.

 Real-World Illustration

Large DC motors are used in ore crushers in mining operations.  PowerFlex DC drives ensure continuous operation under harsh conditions by providing the required torque and endurance.

Use Case #6: Cost-Effective Retrofit Solutions

The Reason DC Wins

Because of mechanical redesigns and delay, retrofitting an old DC motor system with a new AC motor and drive might be unaffordable.

PowerFlex DC Advantage

PowerFlex DC drives provide an affordable upgrade option by only replacing the drive and keeping the motor.  This is particularly advantageous for establishments with limited financial resources.

Real-World Example

By replacing its antiquated DC drive system with PowerFlex DC drives, a food processing facility improved diagnostics and performance without replacing its motors.

Use Case #7: Multi-Motor Coordination

Why DC Wins

DC drives are particularly useful in applications such as film lines and printing presses because they can effortlessly control several motors moving in unison.

The PowerFlex DC Benefit

PowerFlex DC drives provide constant product quality and save waste by supporting multi-motor systems with exact synchronization.

Real-World Example

Several DC motors in a packing line need to work flawlessly together.  PowerFlex DC drives guarantee coordinated motion, improving product uniformity and line efficiency.

Use Case #8: Laboratory Test Stands and R&D Environments

Why DC Wins

Precise, repeatable control over motor speed and torque under a variety of operating situations is frequently necessary for research and development settings.  Fine-grained control is possible with DC drives without the hassle of AC vector drive tuning.

PowerFlex DC Advantage

Perfect for test benches where circumstances vary often, PowerFlex DC drives provide high-resolution feedback, real-time diagnostics, and simple parameter modifications.

 Real-World Illustration

 PowerFlex DC drives are used in an automotive research and development facility to model different load scenarios on prototype engines. By controlling torque and speed accurately, engineers can obtain exact performance data.

Use Case #9: Battery-Powered or Off-Grid Systems

Why DC Wins

By removing the need for inverters, DC motors and drives reduce system complexity and energy loss in remote or mobile applications that are powered by DC sources (such as batteries or solar panels).

 PowerFlex DC Advantage

PowerFlex DC drives provide effective control without requiring AC conversion and may be seamlessly incorporated into DC-powered systems.  This is particularly helpful for off-grid automation, renewable energy systems, and transportable machinery.

 Real-World Illustration

PowerFlex DC drives are used to regulate water pumps in a solar-powered irrigation system at a remote agricultural location, optimizing energy efficiency and lowering infrastructure expenses.

Use Case #10: High-Inertia Load Control

Why DC Wins

Applications with high-inertia loads—like flywheels, centrifuges, or huge fans—need to accelerate and decelerate smoothly to prevent mechanical stress and energy loss.

PowerFlex DC Advantage

DC drives offer accurate brake control and smooth torque ramping, both of which are essential for controlling high-inertia systems without instability or overshoot.

 Real-World Illustration

In chemical processing, a centrifuge depends on a PowerFlex DC motor to safely ramp up to high speeds and decelerate, safeguarding the apparatus and the final product.

Use Case #11: Continuous Web Processing

The Reason DC Wins

Continuous tension and speed control across several rollers and stages are necessary for processes including printing, coating, laminating, and film manufacture.

 The PowerFlex DC Benefit

PowerFlex DC drives maintain accurate tension and synchronization across the web even during speed changes or pauses, demonstrating their superiority in coordinated multi-motor control.

 Real-World Illustration

PowerFlex DC drives are used in a flexible packaging facility to regulate many rollers in a lamination process.  The drives minimize material waste and enhance product quality by maintaining ideal tension and alignment.

Use Case #12: Harsh or Hazardous Environments

Why DC Wins

Compared to AC motors, which frequently need air for cooling, DC motors may be enclosed and protected more readily in areas with high levels of dust, moisture, or explosive gases.

PowerFlex DC Advantage

Because PowerFlex DC drives can accommodate completely enclosed motor systems, they are appropriate for dangerous environments where dependability and safety are crucial.

Real-World Illustration

Enclosed are DC motors managed by PowerFlex DC, which drive power elevators and conveyors in a grain processing complex that produces flammable dust, guaranteeing adherence to safety standards.

Final Thoughts

In conclusion, PowerFlex DC drives still excel in specific applications, but AC drives are the industry standard because of their versatility and minimal maintenance requirements.  In some industrial situations, they are essential because of their excellent torque control, regenerative capabilities, and simplicity of interaction with older systems. The particular needs of the application should guide the decision between AC and DC drives.  PowerFlex DC drives not only compete, but excel in situations when torque, accuracy, and energy efficiency are crucial.
