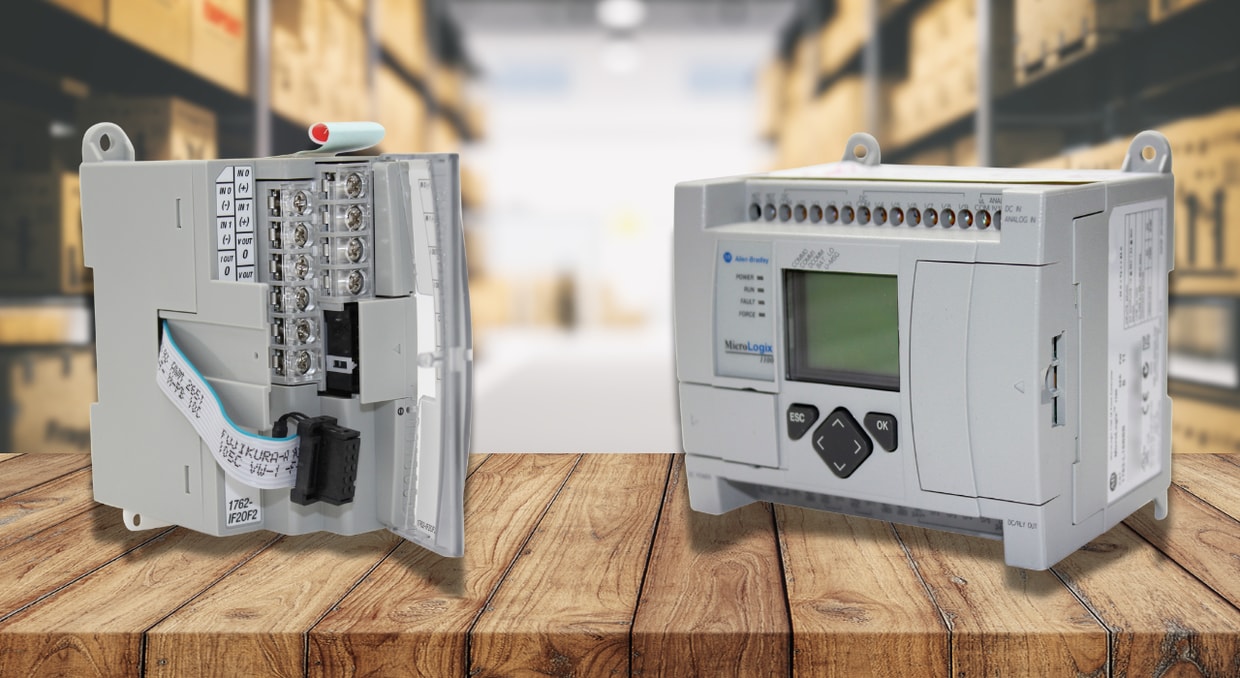

Where the MicroLogix Still Makes Sense Today

Industrial automation nowadays focuses more on the programmable automation controllers (PACs), different motion systems, Industrial IoT architectures, and cloud‑linked control logics. Although such technologies are important for data‑intensive manufacturing environments, they do not always represent the most practical option. Different industrial systems still require consistent performance and cost‑effectiveness rather than other secondary features. That is exactly the niche where the MicroLogix controller family remains relevant today.

MicroLogix controllers have built an enduring reputation for reliable control in space‑constrained, cost‑sensitive applications. Instead of trying to supplant higher‑end platforms, MicroLogix occupies a vital niche, delivering scalable micro‑PLC solutions that stay highly applicable in sectors such as water and wastewater, packaging, material handling, HVAC, food and beverage, and remote SCADA systems.

Where does the MicroLogix Family’s architecture make sense?

The MicroLogix series was created with a straightforward, uniform design principle: provide a single line of micro controllers that can serve diverse applications and cost points, while preserving a shared programming interface and communication base.

All MicroLogix controllers include core communication features that enable seamless integration with industrial control systems. At a minimum, every controller includes an upgraded RS-232C port that supports DF1 Full‑Duplex, DF1 Half‑Duplex Slave, and DH‑485 protocols. This provides compatibility with programming software, operator panels, and peer PLC communications.

Beyond simple serial connectivity, MicroLogix controllers can communicate with personal computers, HMIs, SCADA systems, and other PLCs via DeviceNet and Ethernet employing dedicated interface modules. Top-tier versions such as the MicroLogix 1100, 1200, 1400, and 1500 expand this capability by incorporating Modbus RTU Master/Slave support, ASCII read/write capability, and additional serial ports.

This layered method enables engineers to expand capabilities without altering controller families, easing training, maintenance, and long‑term system support.

 Why MicroLogix Continues to Be Pertinent in Today’s Automation?

Despite the presence of newer control platforms, MicroLogix remains extensively used because it closely matches real‑world industrial needs. Many machines and subsystems do not need integrated motion control, safety controllers, or high‑speed deterministic Ethernet.

MicroLogix continues to be a solid option when the subsequent considerations matter:

• Small footprint for space‑limited panels
• Reduce initial and total ownership expenses
• Extended accessibility and assistance
• Extensive protocol support, covering older networks

On brownfield sites where existing infrastructure and communication protocols must remain intact, MicroLogix offers a sensible upgrade or replacement path that avoids additional risk.

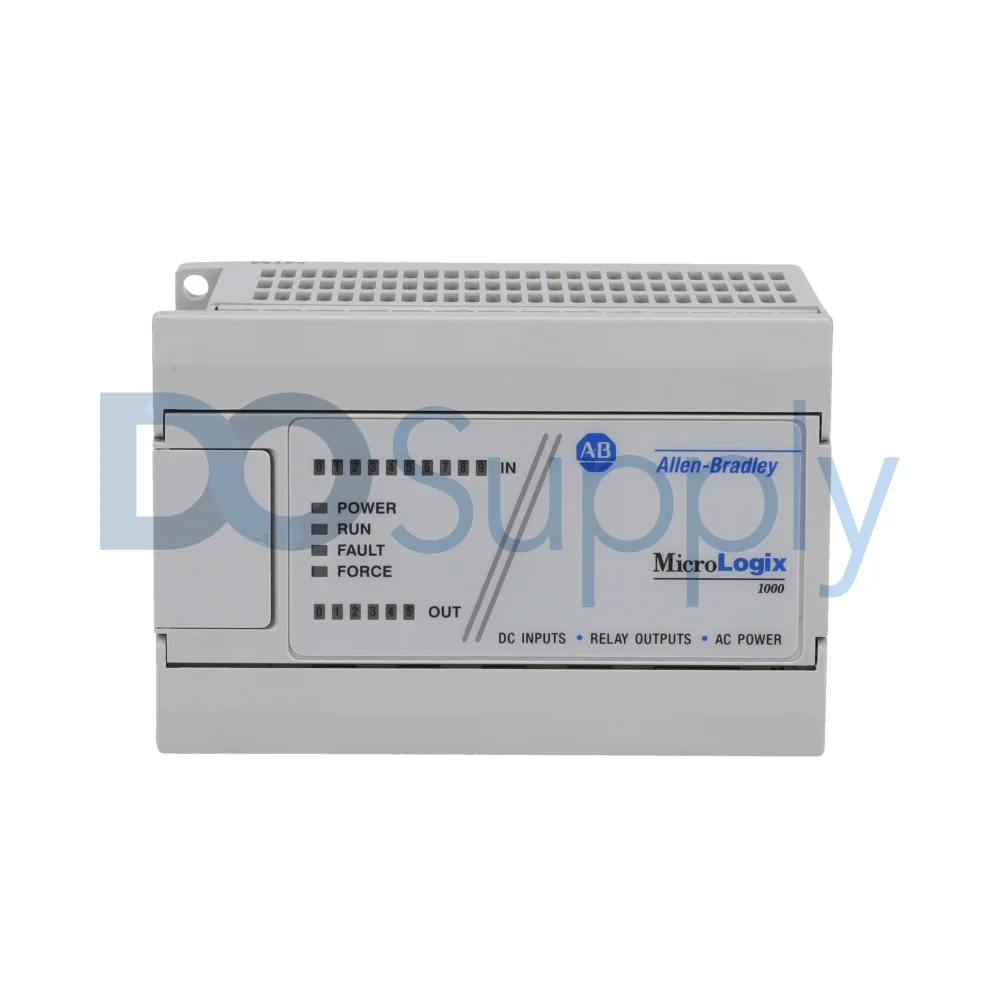

MicroLogix 1000

The MicroLogix 1000 is the introductory model of the MicroLogix series, delivering dependable control for modest applications where ease of use and low cost are paramount.

With up to 32 integrated I/O points and a compact physical size, the MicroLogix 1000 is ideal for confined enclosures and distributed control panels. Despite its small form factor, it delivers high performance and offers versatile networking options.

Principal attributes include:

• Pre‑set 1K program and data memory
• Usual execution speed is 1.5 ms for a program consisting of 500 instructions
• Integrated EEPROM storage for non‑volatile program and data retention
• RS-232 interface supporting DF1 full‑duplex
• DF1 Half‑Duplex Slave protocol used for RTU and radio modem networks

Further adaptability is provided by supporting DeviceNet, EtherNet/IP, and DH-485 via interface modules such as the 1761-NET-DNI and 1761-NET-ENI.

Common uses include water and wastewater facilities, SCADA remote terminal units, packaging equipment, and material-handling subsystems that require reliable, independent control.

MicroLogix 1100:

The MicroLogix 1100 represents a notable functional advance by integrating control, communication, and visualization into a single, compact controller. This unit is especially appropriate for contemporary distributed systems that need Ethernet connectivity and simple operator interaction.

A standout characteristic is its integrated 10/100 Mbps EtherNet/IP port, which permits peer‑to‑peer communication, remote programming, and network‑wide monitoring. Online editing allows modifications to be applied while the controller is operating, reducing downtime during commissioning and troubleshooting.

Further capabilities include:

• Built‑in LCD display indicating controller and I/O status
•  Bit and integer manipulation directly from the screen
• Digital potentiometer feature for adjusting parameters
• Integrated web server enabling browser‑based data access

Viewed from a control standpoint, the MicroLogix 1100 offers:

•  One 40 kHz fast counter
• A pair of 40 kHz PTO/PWM outputs
• A pair of built-in analog inputs (0–10 V DC)
• Capable of logging data up to 128 kB and storing recipes up to 64 kB

These capabilities make it ideal for SCADA RTUs, packaging lines, material handling systems, and remote monitoring applications that require data storage without requiring large I/O expansion.

MicroLogix 1200

The MicroLogix 1200 was designed for applications that require more sophisticated control capabilities and greater I/O versatility, without adopting a modular PLC architecture.

Available in 24‑ and 40‑point versions, the MicroLogix 1200 can be expanded with 1762-series rackless I/O modules, enabling systems to scale while reducing panel space and inventory costs.

Major functional improvements consist of:

• Four latch or pulse‑catch inputs
• High‑speed 20 kHz counter with several operating modes
• Configurable limit switch functionality
• Interrupt‑triggered routines for event‑driven control
• Floating‑point data archives

The controller also supports trim potentiometers, safeguards program data, and offers optional real‑time clock and memory modules, making it suitable for time‑dependent or batch‑oriented processes.

Sectors such as pharmaceutical production, printing, food and beverage processing, and material handling still depend on the MicroLogix 1200 for its blend of performance, scalability, and cost

MicroLogix 1400

The MicroLogix 1400 expands upon the capabilities of the 1100 by offering increased I/O capacity, quicker high‑speed counters, and broader communication options. It stands as one of the most adaptable controllers within the MicroLogix lineup.

Besides its built‑in EtherNet/IP port, the MicroLogix 1400 also supports:

• Direct user-to-user communication
• Integrated web server with email functionality
• Web-based editing
• Integrated LCD featuring backlight

Performance enhancements encompass as many as six 100 kHz high‑speed counters and allow for up to seven 1762 expansion I/O modules, permitting configurations with a maximum of 256 separate I/O points.

The two serial ports support multiple protocols, including DF1, DH-485, Modbus RTU, ASCII, and DNP3. Ethernet connectivity also handles Modbus TCP and DNP3, which makes the MicroLogix 1400 appropriate for SCADA and infrastructure uses.

Typical uses encompass industrial machinery, HVAC installations, oil‑and‑gas SCADA, food‑and‑beverage facilities, and commercial equipment.

MicroLogix 1500

The MicroLogix 1500 is the most robust and scalable controller in the MicroLogix family.  Its modular design enables it to manage tasks that are traditionally performed by larger PLCs.

Prominent architectural characteristics comprise:

• Detachable processor
• Core modules with built‑in I/O and power supply
• Growth via 1769 Compact I/O

Supporting more than 500 I/O points, offering rapid scan cycles (under 1 ms for 1 K instructions), and featuring sophisticated motion capabilities, the MicroLogix 1500 provides outstanding performance within its category.

Further functionalities consist of:

• Fast counters and PTO/PWM outputs
• DeviceNet scanning capability provided through 1769‑SDN
• Data Access Tool (DAT) for viewing and editing local data

For projects that require modular growth without the expense or complexity of a complete PAC system, the MicroLogix 1500 remains a reliable, established option.

Scalable I/O and Network Adaptability

MicroLogix’s long service life is supported by its adaptable I/O and network capabilities.  The 1762 I/O platform provides a small, rack‑free expansion for the 1100, 1200, and 1400 models, whereas the 1769 Compact I/O broadens the MicroLogix 1500 for higher‑density uses.

Connectivity is enabled through interface devices such as:

• 1761-NET-ENI / ENIW designed for EtherNet/IP
• 1761-NET-DNI compatible with DeviceNet

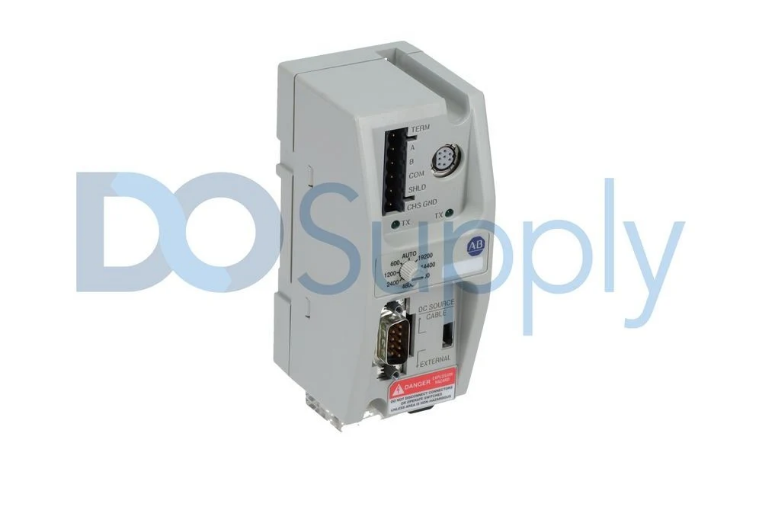

• 1761-NET-AIC designed for DH-485 and RS-232 isolation

These choices enable MicroLogix systems to integrate seamlessly with both legacy and modern network architectures.

Final Thoughts

In conclusion, the MicroLogix line remains relevant today, addressing real industrial challenges with effective, reliable solutions. Although newer platforms address sophisticated automation requirements, numerous applications still benefit from compact controllers that are easy to install, service, and support. For stand-alone equipment, distributed control units, legacy upgrades, and budget‑constrained projects, MicroLogix remains a reliable option, demonstrating that well‑established technology, when used properly, never truly becomes outdated. Though if using a discontinued product worries you, we have an article here explaining what happens after official support and if buying legacy hardware is worth it.
