Understanding Safety PLCs: Principles and Applications in Industrial Automation

Safety PLCs are those overachieving, highly dependable systems that ensure your factory doesn’t turn into an accidental pyrotechnics show. Safety PLCs, or Programmable Logic Controllers, play a key role in maintaining this balance by preventing accidents and ensuring safe operation. Unlike regular PLCs that manage routine control tasks, Safety PLCs add a crucial layer of protection. Their significance in industrial settings is immense, as they help avoid incidents that could lead to expensive downtime or hazardous situations—understanding how Safety PLCs work and their applications reveal why they are indispensable in modern industrial automation.

What Are Safety PLCs?

Safety PLCs are Programmable Logic Controllers designed specifically to enhance the safety of industrial operations. Unlike standard PLCs, which primarily focus on automating and controlling machinery and processes, Safety PLCs incorporate additional features that ensure the system operates safely under all conditions. These features include redundant systems, self-checking mechanisms, and adherence to strict safety standards.

Difference Between Regular PLCs and Safety PLCs

Regular PLCs are designed to handle industrial machinery’s automation and control tasks. They process sensor inputs, execute control algorithms, and send commands to actuators to control equipment. However, they lack the specialized safety functions that are critical in preventing accidents.

Safety PLCs, however, are built with safety in mind. They are designed to detect faults and respond to them in a way that minimizes risk. For instance, if a fault is detected, a Safety PLC can shut down a machine or process to prevent injury or damage. This capability is achieved through several key features:

• Redundancy: Safety PLCs have redundant processors and circuits to ensure that if one component fails, another can take over without interrupting the safety functions. This redundancy ensures continuous operation and safety.
• Self-Checking Mechanisms: Safety PLCs perform continuous self-diagnostics to check their functioning. They monitor their internal systems and can detect hardware failures or software errors before they lead to a dangerous situation.
• Compliance with Safety Standards: Safety PLCs adhere to stringent safety standards such as ISO 13849 and IEC 61508. These standards specify requirements for designing, implementing, and validating safety-related control systems.

Importance of Safety PLCs in Industrial Environments

In industrial environments, the safety of workers and equipment is a top priority. Safety PLCs play a critical role in ensuring that operations are conducted safely. They are used in various applications where safety cannot be compromised, such as emergency shutdown systems, robotic safety, and process control in chemical plants. Safety PLCs help prevent accidents, protect workers, and reduce the risk of costly downtime by continuously monitoring the system and taking corrective actions when necessary.

Safety PLCs provide an added layer of security by ensuring that safety protocols are followed precisely. They monitor the system in real-time, checking for any irregularities that could indicate a problem. When a fault is detected, Safety PLCs can shut down the equipment or trigger alarms to prevent accidents. This proactive approach to safety makes them indispensable in modern industrial settings.

How Do Safety PLCs Work?

Safety PLCs operate on principles similar to regular PLCs but with enhanced features for safety. Here’s how they ensure operations stay safe:

Basic Operation Principles

• Redundancy: Safety PLCs often have redundant processors and circuits. This means if one component fails, another can take over without interrupting the operation. Redundancy is like having a backup plan in place, ensuring continuous, safe operation.
• Self-Checking Mechanisms: These PLCs constantly perform self-checks to verify their functioning. They monitor their health and can detect issues before they lead to failures. This self-awareness helps maintain high safety standards.
• Safety Protocols: Adhering to safety standards like ISO 13849 and IEC 61508, Safety PLCs ensure that their operations meet stringent safety requirements. These protocols define how safety functions should be implemented and verified.

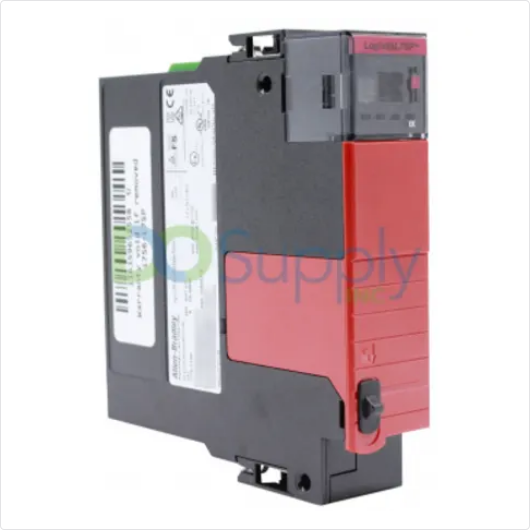

Components of a Safety PLC

Safety PLCs comprise several key components:

• Processors: The brain of the Safety PLC, responsible for executing safety functions and control logic. Redundant processors ensure reliability.
• Input/Output Modules: These modules connect the Safety PLC to sensors and actuators. They gather data and control external devices, enabling the PLC to monitor and influence the system.
• Communication Interfaces: These interfaces allow Safety PLCs to communicate with other systems, ensuring coordinated safety measures across the entire operation.

Safety PLC Architecture

The architecture of Safety PLCs is designed to maximize safety and reliability:

• Hardware Redundancy: Multiple processors and circuits provide a fail-safe mechanism. If one part fails, the backup ensures the system continues to operate safely.
• Software Diagnostics: Built-in diagnostics check the software’s integrity and performance. These checks help detect issues early and maintain system health.
• Fail-Safe Mechanisms: Safety PLCs are designed to default to a safe state in case of failure. This might mean shutting down equipment or switching to a backup system, ensuring safety is always maintained.

Principles of Safety PLCs

Safety PLCs are built on a few core principles that make them the guardians of industrial automation:

• Fail-Safe Operation: They default to a safe state if something goes wrong. This usually means shutting down operations to prevent accidents. It’s like a fire alarm that rings and douses the flames.
• Diagnostics: Constant monitoring and diagnostics help detect faults early. They don’t wait for a catastrophic failure; they’re proactive, catching issues before they escalate.
• Deterministic Performance: They provide consistent, predictable performance. When safety is on the line, unpredictability is the enemy. Safety PLCs ensure that safety measures are executed exactly when needed.

Applications in Industrial Automation

Safety PLCs are used in a wide range of industrial applications where safety is non-negotiable. These applications benefit from the enhanced reliability and protection provided by Safety PLCs.

Emergency Shutdown Systems (ESD)

In many industrial settings, Emergency Shutdown Systems (ESD) are critical for preventing disasters. Safety PLCs are at the heart of these systems, monitoring various parameters and shutting down operations if they detect unsafe conditions. For example, Safety PLCs can detect gas leaks or equipment failures in oil and gas facilities and trigger an immediate shutdown to prevent explosions or other hazardous events.

Press Control Systems

Industrial presses are powerful machines used to shape materials. However, they can be dangerous if not properly controlled. Safety PLCs ensure that presses operate safely by monitoring critical aspects such as the position of guards, the status of safety interlocks, and the presence of operators in safe zones. If any unsafe condition is detected, the Safety PLC can halt the press operation, preventing accidents.

Robotic Safety

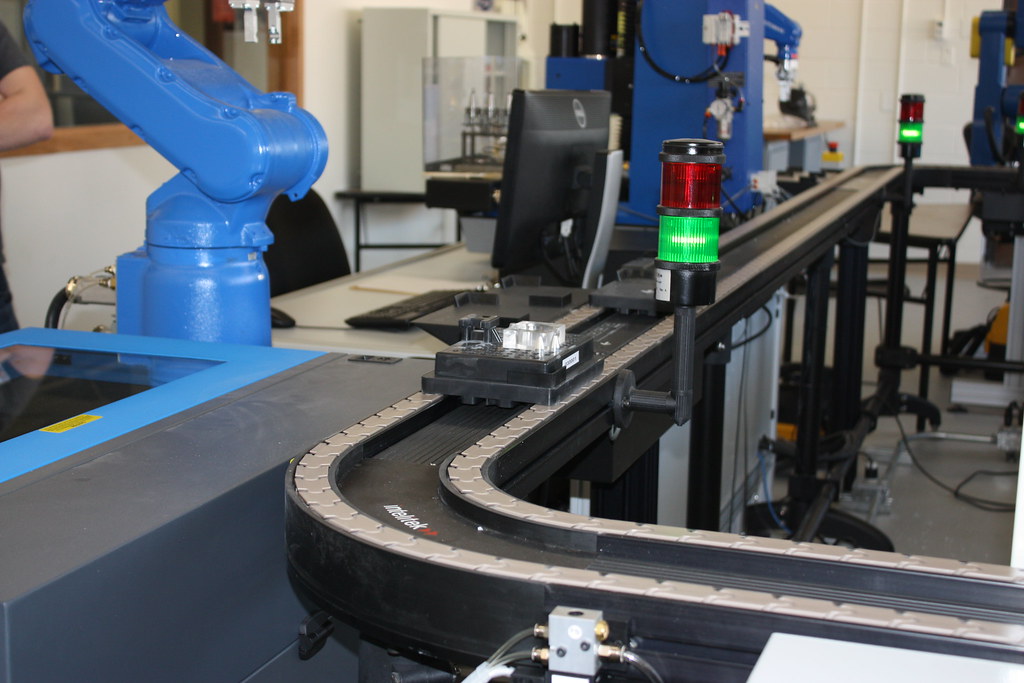

Robots are increasingly common in industrial settings, from assembly to packaging. While they enhance efficiency, they also pose safety risks. Safety PLCs manage these risks by monitoring robotic systems and ensuring they operate within safe limits. If a robot moves unexpectedly or enters a restricted area, the Safety PLC can intervene, stopping the robot and preventing injuries.

Process Control in Chemical Plants

Chemical plants involve complex processes that must be tightly controlled to prevent dangerous reactions. Safety PLCs play a crucial role in these environments by monitoring process parameters such as temperature, pressure, and chemical concentrations. They can detect deviations from safe operating conditions and take corrective actions, such as shutting down equipment or activating safety systems, to prevent accidents like explosions or toxic releases.

Machine Guarding

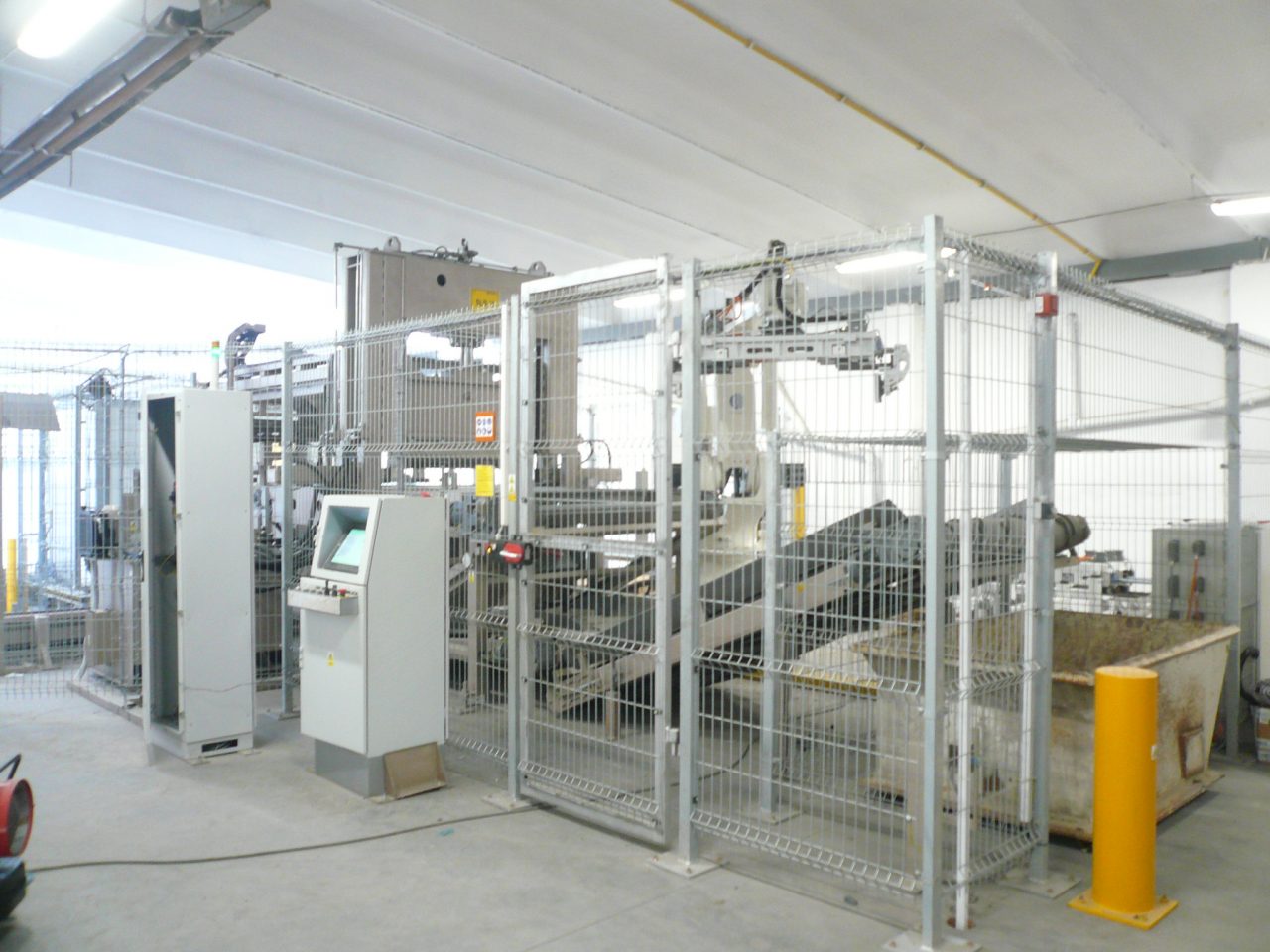

Machine guarding protects workers from hazardous machinery using physical barriers and safety interlocks. Safety PLCs ensure these guards and interlocks are in place and functioning correctly. They monitor sensors on guard doors and emergency stop buttons, ensuring that machinery cannot operate unless all safety measures are in place. This prevents operators from being exposed to moving parts or other hazards.

Benefits of Using Safety PLCs

The use of Safety PLCs in industrial automation offers several significant benefits:

• Enhanced Safety and Reliability: Safety PLCs provide a higher safety level than regular PLCs. Their ability to detect and respond to faults ensures that operations remain safe and reliable.
• Reduced Risk of Accidents and Downtime: By proactively monitoring systems and shutting down equipment when necessary, Safety PLCs help prevent accidents that could lead to injuries or damage. This reduces the risk of costly downtime and ensures continuous operation.
• Compliance with Safety Regulations and Standards: Safety PLCs are designed to meet stringent safety standards. This ensures that industrial operations comply with regulations, avoiding potential fines and legal issues.
• Increased Operational Efficiency: Safety PLCs enhance operational efficiency by minimizing the risk of accidents and downtime. This allows for smoother and more reliable production processes.

Common Challenges and Solutions

Implementing Safety PLCs comes with its own set of challenges, but there are solutions to overcome them:

Challenges

• Complexity of Integration: Integrating Safety PLCs into existing systems can be complex and time-consuming. It requires careful planning and coordination to ensure seamless integration.
• Cost Considerations: Safety PLCs are often more expensive than regular PLCs due to their enhanced features and capabilities. This can be a significant investment for some companies.
• Maintenance and Testing: Regular maintenance and testing are essential to ensure that Safety PLCs function correctly. This requires time and resources, which can be a challenge for some operations.

Solutions

• Best Practices for Integration: Following best practices for integration can help simplify the process. This includes thorough planning, testing, and stakeholder coordination to ensure a smooth transition.
• Cost-Benefit Analysis: A cost-benefit analysis can help justify the investment in Safety PLCs. The long-term benefits of enhanced safety and reduced downtime often outweigh the initial costs.
• Regular Maintenance and Testing Protocols: Establishing regular maintenance and testing protocols ensures that Safety PLCs remain in good working condition. This includes routine inspections, testing of safety functions, and updating software as needed.

Case Studies

Real-world examples highlight the effectiveness of Safety PLCs in industrial automation:

Manufacturing Plant

In a manufacturing plant, Safety PLCs were integrated into the production line to monitor machinery and ensure operator safety. The Safety PLCs detected a fault in a conveyor system, automatically shutting it down and preventing a potential accident. This quick response minimized downtime and ensured the safety of the workers.

Oil and Gas Facility

An oil and gas facility implemented Safety PLCs as part of its Emergency Shutdown System. The Safety PLCs monitored critical parameters and detected a gas leak. They triggered an immediate shutdown, preventing a possible explosion and ensuring the safety of the facility and its personnel.

Pharmaceutical Production Line

In a pharmaceutical production line, Safety PLCs monitor and control the filling and packaging process. They ensure that all safety interlocks are in place and that machinery operates within safe parameters. This prevents contamination and ensures the safety of both the product and the workers.

Future Trends in Safety PLCs

Safety PLCs are continuously evolving with advancements in technology:

• Integration with IoT and Industry 4.0: Safety PLCs are increasingly integrated with IoT and Industry 4.0 technologies. This enhances their diagnostic and predictive capabilities, allowing for more proactive safety measures.
• Enhanced Diagnostic and Predictive Capabilities: New diagnostics and predictive analytics developments enable Safety PLCs to detect potential issues before they become critical. This allows for more effective maintenance and reduces the risk of unexpected failures.
• Emerging Applications: Safety PLCs are finding new applications in various industries. Their role in ensuring safety is expanding from autonomous vehicles to smart manufacturing.

Final Thoughts

Safety PLCs are essential in maintaining safe and efficient industrial operations. Their ability to detect and respond to faults and comply with stringent safety standards makes them indispensable in modern industrial settings. As technology advances, Safety PLCs will continue to play a crucial role in protecting workers and equipment, ensuring that industrial automation remains safe and reliable.
