Interchangeable Parts on the PowerFlex 750 Series: A Maintenance Team’s Best Friend

When a drive in a system goes down, the clock starts to tick. Every minute of downtime is a minute lost in productivity, money lost, frustrated operators, and production schedules sliding off track. Allen-Bradley understood this issue well and designed its PowerFlex 750 series drives with an interchangeable parts approach. The idea was that instead of scrambling for model-specific replacements, you could swap in components across the 753, 755, and even 755T drives. This isn’t just convenient, but a deliberate choice that turns a maintenance headache into a quick fix. By incorporating so many interchangeable parts into the 750 platform, Allen-Bradley has made it possible to keep more spares on hand, reduce stocking costs, and get machines running faster than it would take to fill out a downtime report.

It’s not just a couple of token parts either. The interchangeable parts list for the PowerFlex 750 series is extensive, covering everything from control and power modules to cooling fans, I/O boards, and even communication modules. The result is that a facility could have a single shelf of spares that can support an entire fleet.

Control Modules

For the 750 series, the control modules are the heart of the system, and the best part about it is that many of these modules are fully interchangeable parts between the 753, 755, and 755T. That is, if they’re in the same frame size and voltage class. AB offers several interchangeable control  and encoder module variants, including:

20-HIM-C6S: A Human Interface Module with a full numeric keypad that operates with an input of 12VDC. It comes with an NEMA 4X/12 enclosure.

20-HIM-A6: A HIM installed in the bezel with a NEMA Type 1 cert.

20-750-ENC-1: An incremental encoder module with a maximum input operating voltage of 5V DC min to 15V DC, sourcing, 10 mA.

20-750-ENC-1-XT: A hardened version of the 20-750-ENC-1.

20-750-DENC-1: This device integrates dual incremental encoder inputs, facilitating enhanced motion control through accurate feedback.

20-750-DENC-1-XT: A hardened version of the 20-750-DENC-1.

20-750-UFB-1: A universal feedback encoder module. Comes with one input that supports differential or single-ended operation. It can be used with the PowerFlex 755 drives when the safe speed monitor option module is used.

20-750-UFB-1-XT: A hardened version of the 20-750-UFB-1.

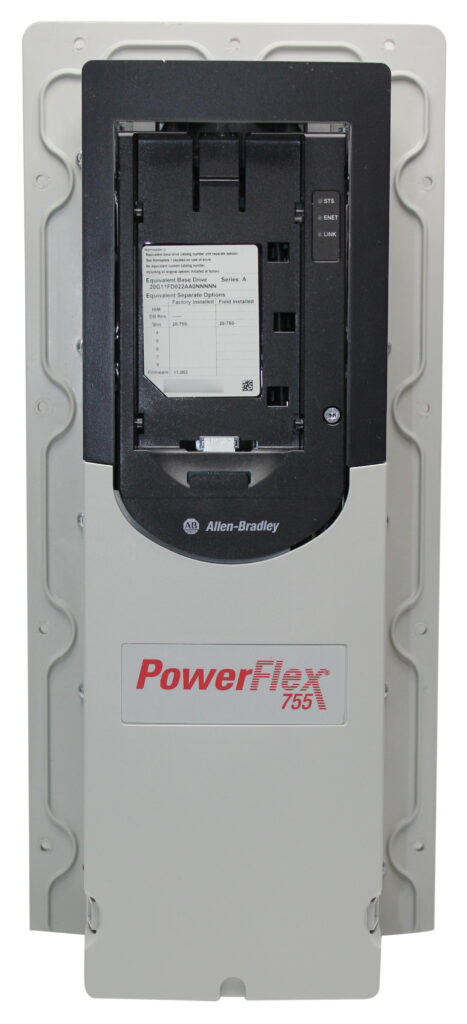

Because these modules share the same mechanical footprint and electrical interface across the series, a HIM pulled from a 755 in storage can easily be installed in a 753 on the shop floor. This is the power of interchangeable parts! Less unique SKUs, faster swaps, and less downtime.

Encoder interface boards are also interchangeable across models for drives that rely on feedback. Whether you’re working with a simple speed feedback setup or a high-resolution encoder in a precision application, the same board can be used in multiple drive types. This once more reinforces the interchangeable parts philosophy with this series of drives.

Power Module

The 750 series continues its legacy of interchangeable parts by including an auxiliary power module that can be swapped between frames 1-7 and is built into larger frames and the 755T. It provides 24VDC 3A auxiliary power to the drive.

Communication Modules

One of the most overlooked features of the PowerFlex 750 series is how it handles network connectivity. In many drive lines, communication is either baked into the software or locked to a specific model. The 750 series takes it to a modular level where every drive in the family uses the same catalog of plug-in communication modules. These modules are truly interchangeable parts just like the others.

This is particularly valuable in facilities where different drives sit on different networks. So instead of stocking multiple drive models for Ethernet/IP, ControlNet, and Profibus, you simply keep a few spare communication cards and drop them in where needed. The Allen-Bradley communication module lineup for the 750 series includes:

• 20-750-ENETR Dual-Port EtherNet/IP Adapter: Ideal for high-speed control and integration into plant-wide Ethernet networks.
• 20-750-ENET2P 2-Port Switch: Adds embedded switch capability.
• 20-750-CNETC ControlNet Adapter: Rock-solid for time-critical control in coordinated motion or process applications.
• 20-750-DNET DeviceNet Adapter: This adapter is still widely used in legacy systems, making it a handy interchangeable part for mixed-network facilities.
• 20-750-PBUS Profibus DP Adapter: Popular in process industries and with European-built equipment.
• 20-COMM-M Modbus/TCP Adapter: This is common in cross-vendor integration, where Allen-Bradley drives need to communicate with other control platforms.
• 20-750-PNET Profinet I/O Module: Standard Profinet interface for integration with Siemens and other Profinet-based control systems.
• 20-750-PNET Profinet Adapter: A single-port Profinet Adapter.
• 20-750-PNET2P ProfiNet Adapter: Provides two-port embedded switch functionality for flexible network topologies.

Because these modules all share the same form factor and electrical interface, swapping one is as simple as pulling two screws, sliding it out, and replacing it with the new module. This approach keeps downtime low and makes the 750 series one of the most interchangeable drive lines Allen-Bradley has ever produced.

I/O Modules

Alongside control, power, and communication, the PowerFlex 750 series also supports a range of plug-in, interchangeable I/O modules. These expand the drives’ flexibility by handling extra analog and digital signals, safety connections, and relay outputs. Like the other modules, these are designed to be interchangeable parts across the 753, 755, and 755T lines.

This means that the same analog I/O card used to bring in a pressure transducer signal on a 753 can be pulled and placed into a 755 running a pump system with no compatibility issues. Stocking spares becomes much simpler when the cards aren’t locked to a single drive type.

Some of the key I/O modules in the 750 catalog include:

• 20-750-2262D-2R: An analog I/O module that adds extra ±10V or 4–20mA channels for feedback and control, helpful in process-heavy applications.
• 20-750-2262D-2R-XT: A hardened version of the 20-750-2262D-2R.
• 20-750-2262C-2R: 24VDC module that supports two analog inputs and outputs, six digital inputs and two outputs, and two relay outputs.
• 20-750-2262C-2R-XT: A hardened version of the 20-750-2262C-2R.
• 20-750-2263C-1R2T: A 24VDC card that supports six digital input and three digital output channels, two analog input and output channels, one relay output, and two transistor output channels.
• 20-750-2263C-1R2T-XT: A hardened version of the 20-750-2263C-1R2T.
• 20-750-1132C-2R: A 24VDC card supporting one analog input, one analog output, three digital inputs, and two relay outputs.
• 20-750-1132D-2R: A 115V card for ATEX atmospheres consists of one 115V AC digital input and two relay outputs, which can be used with the 20-750-ATEX card.

The design philosophy of interchangeable parts really makes changing and swapping these modules easy in day-to-day operations.

Cooling Fans and Other Replaceable Components

Finally, we have the smaller, wear-prone items that cause the most nuisance downtime but are also built around interchangeable parts.

Cooling Fans

Cooling fans are among the most common components to fail in any drive simply because they’re mechanical and run constantly. Yet they remain a vital part of your drive’s overall health. AB designed the fan assemblies in the 750 series to be field-replaceable and interchangeable parts across drives of the same frame size. Instead of ordering a unique fan for every model, you pull one from the shelf and install it in either a 753 or 755 without hunting for special part numbers.

Capacitor and IGBT Boards

Similarly, bus capacitors and IGBT power boards are modular assemblies that can be swapped when service life runs out. Like the other modules, these assemblies are standardized within frame classes, making them truly interchangeable parts and simplifying maintenance schedules.

Final Thoughts

As we all know, downtime is the enemy of the production line. What Allen-Bradley did with their 750 line is build a drive family that not only delivers horsepower, but peace of mind knowing that downtime could be prevented more easily. By leaning heavily on interchangeable parts, they’ve turned what is usually a spare parts juggling act into a straightforward system. Most of these interchangeable parts can also be found on our website at DO Supply. We also carry hundreds of different 750 series PowerFlex drives and more! Whether you need new parts, spare drives, or PLCs to go along with them, we at DO Supply have you covered. We also offer expert repair services for your drives in need, all backed by our 2-year warranty for added peace of mind. So don’t wait, give us a call today! If you would like to see whats new with TotalFORCE technology, we have an article here for you!
