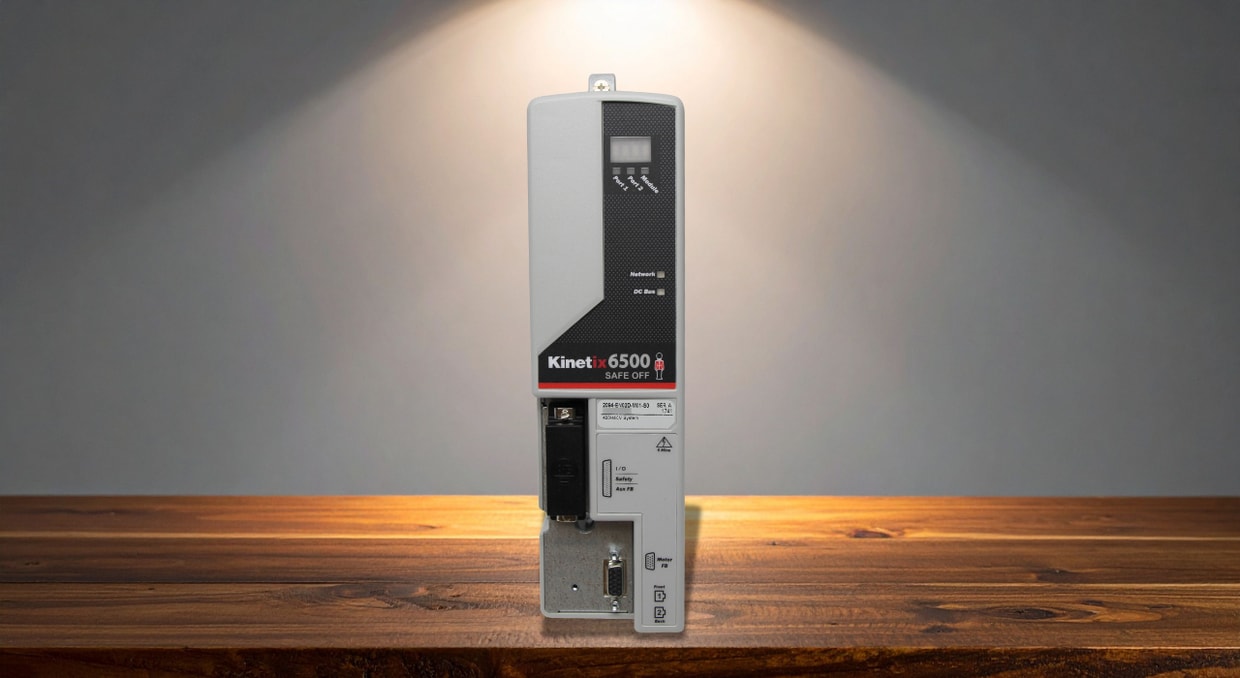

Safety and Performance: A Look into the Kinetix 6500’s Cutting Edge Features

Allen-Bradley Kinetix 6500 (Bulletin 2094) are high-performance, multi-axis servo drives fitted with advanced safety features that help increase system productivity and protect personnel. They also feature an innovative modular design that allows for interchangeable control of drive axes, enabling users to easily transition the axes to different networks (e.g., from SERCOS connectivity to EtherNet/IP networking) or safety functions (e.g., from Safe Torque-Off (STO) to Safe Speed-Monitoring (SSM)). This interchangeability provides greater application flexibility and ease of maintenance.

Kinetix 6500 servo drives are optimized to handle a wide range of low and high axis-count motion control applications, where high performance, machine efficiency, and enhanced operator safety are crucial. A standard Kinetix 6500 modular servo drive system can be configured to support 1 to 8 drive axes. Target applications for these servo drives include material handling, packaging, converting, printing and web, assembly, and food processing.

Kinetix 6500 Drive Features

Kinetix 6500 servo drives incorporate various cutting-edge features that help improve system performance and machine/worker safety. The features include:

Embedded Ethernet/IP Technology

Kinetix 6500 servo drives leverage in-built CIP (Common Industrial Protocol) Sync, CIP Security, CIP Motion, and CIP Safety technologies from ODVA Inc. to provide high-performance integrated motion capability over EtherNet/IP networks. These CIP technologies support device standardization, compatibility, and interoperability, providing a secure, efficient, flexible, and simple way for various industrial automation devices to exchange data. EtherNet/IP adapts the CIP communication standard to deploy standard Ethernet technology in industrial automation applications, allowing users to integrate such applications with the Internet and high-performance enterprise-level Ethernet networks.

Integrated Motion over an open EtherNet/IP network allows users of Kinetix 6500 drive systems to seamlessly integrate an extensive range of high-performance Allen-Bradley servo and AC drives, linear and rotary servo motors, smart actuators, digital and analog I/O, Logix 5000 controllers (GuardLogix, CompactLogix, and ControlLogix), and any other EtherNet/IP-connected Allen-Bradley motion product on a single network. This eliminates the need for an exclusive motion control network, reducing cabling requirements by up to 60%.

In addition, with Kinetix Integrated Motion on EtherNet/IP, operators can use a single software platform to program, configure, commission, diagnose, operate, and maintain the components of different automation systems using a wide selection of advanced Allen-Bradley motion control tools. This helps simplify and enhance the design, commissioning, operation, and maintenance of Kinetix 6500 drive systems for any application. Users can also easily mix and match different automation functions on a single network, such as high-speed motion control, digital and analog I/O control, HMI function, position feedback, and drive control.

Modular Structure

Allen-Bradley Kinetix 6500 servo drives feature an innovative, multi-axis modular design that supports Kinetix Integrated Motion and a variety of communication, control, and safety options. The modular structure also provides an adaptable platform for future system enhancements, like increased output power range. For example, using interchangeable control modules, a Kinetix 6500 drive axis can readily transition to a different safety functionality or network, allowing users to easily adapt to new application requirements or automation technologies/trends while minimizing the upgrade costs by up to 50%.

Advanced Safety Features

Kinetix 6500 servo drives have TÜV Rheinland-certified Safe Speed-Monitoring (SSM) and/ or Safe Torque-Off (STO) safety features. The two features meet the safety requirements of Performance Level e (PLe), Category 4 (CAT 4) according to EN ISO 13849-1 and SIL (Safety Integrity Level) CL3 in compliance with EN / IEC 61800-5-2, EN / IEC 61062, and EN / IEC 61508. When enabled, these features provide safe stopping, safe maximum-acceleration monitoring, zero-speed monitoring, and safe direction monitoring. In doing so, they help improve operator safety and enhance machine efficiency.

• Safe Torque Off (STO) Feature: This safety feature bringsa Kinetix 6500 servo drive to a no-torque safe state. It accomplishes this by disabling the drive’s output and thereby stopping the connected motor from producing torque. This is considered to be a safe state for personnel entry and performing maintenance tasks. The STO feature is normally used to prevent unanticipated motor rotation, abrupt machinery startup, or as an emergency stop function in accordance with EN / IEC 60204-1, Stop Category 0 safety requirements.

When the STO feature is enabled, the Kinetix 6500 servo drive stops providing power to the connected motor. At this point, the motor is said to be “free running”, and it eventually stops due to inertia and friction. As a result, operators and maintenance personnel can access the drive/motor motion control system to clean it, remove jams or foreign objects, repair/replace faulty components, or carry out other tasks while it’s still running and without an emergency shutdown. This provides greater machine availability and reduced system downtime. It also helps extend the machine’s service life and limit the amount of drive output voltage required to power the motor back to full operating speed.

• Safe Speed Monitoring (SSM) Feature: The SSM safety feature in a Kinetix 6500 servo drive monitors the speed of the connected motor and provides an output signal indicating whether the speed is above or below a specified limit value. If it provides a safe output signal indicating that the motor speed is below the defined limit, then personnel entry can be permitted to a danger zone for routine maintenance or other tasks. If the output signal indicates that the speed limit value has been exceeded, the connected safety controller will trigger a pre-determined error response.

Safe Speed Monitoring helps maximize machine uptime, personnel/machine safety, and process efficiency. The SSM is purely a monitoring feature with no fault reaction in compliance with EN / IEC 61800-5-2 functional safety requirements. Once configured, it remains activated, continuously monitoring whether the motor speed is within the specified range or not.

Kinetix 6500 servo drives with the Safe Speed-Monitoring feature include five (5) dual-channel safety inputs, one (1) bipolar safety output, and two (2) sets of sourcing (DC) safety outputs. Each of these inputs and outputs supports a distinct SSM safety function of the servo drive in use. Available Kinetix 6500 SSM safety functions include:

• Safe Stop
• Lock Monitoring
• Safe Limited Speed Monitoring
• Enabling Switch Monitoring
• Door Monitoring
• Door Control

Three-phase (400V-class) Operation

The Bulletin 2094 IAM and AMs included in Kinetix 6500 servo drive systems are rated for 324 to 528V AC, three-phase (400V-class) operation. This makes the systems ideal for motion control applications with high-power and high-performance requirements. The power ratings of a typical Kinetix 6500 servo drive system are as follows:

• 1.8 to 22.0 kW (400V-class) continuous output power (inverter ratings)
• 4.0 to 49.0 A (0-pk) or 2.8 to 34.6 A (rms) continuous current output (inverter ratings)
• 6.0 to 45.0 kW continuous power output to DC common bus (converter ratings)
• 9.0 to 68.0 A (A_DC) continuous current output to DC common bus (converter ratings)

In addition, Kinetix 6500 drive systems also support a 400V-class DC Common bus with a rated input voltage of 458 to 747V DC. The DC bus connects the leader Kinetix 6500  IAM to the follower IAM power module. The 2094-BCxx-Mxx-M module, designated as the leader IAM, should be able to conveniently pre-charge the entire Shared DC bus system.

Available Kinetix 6500 Modules

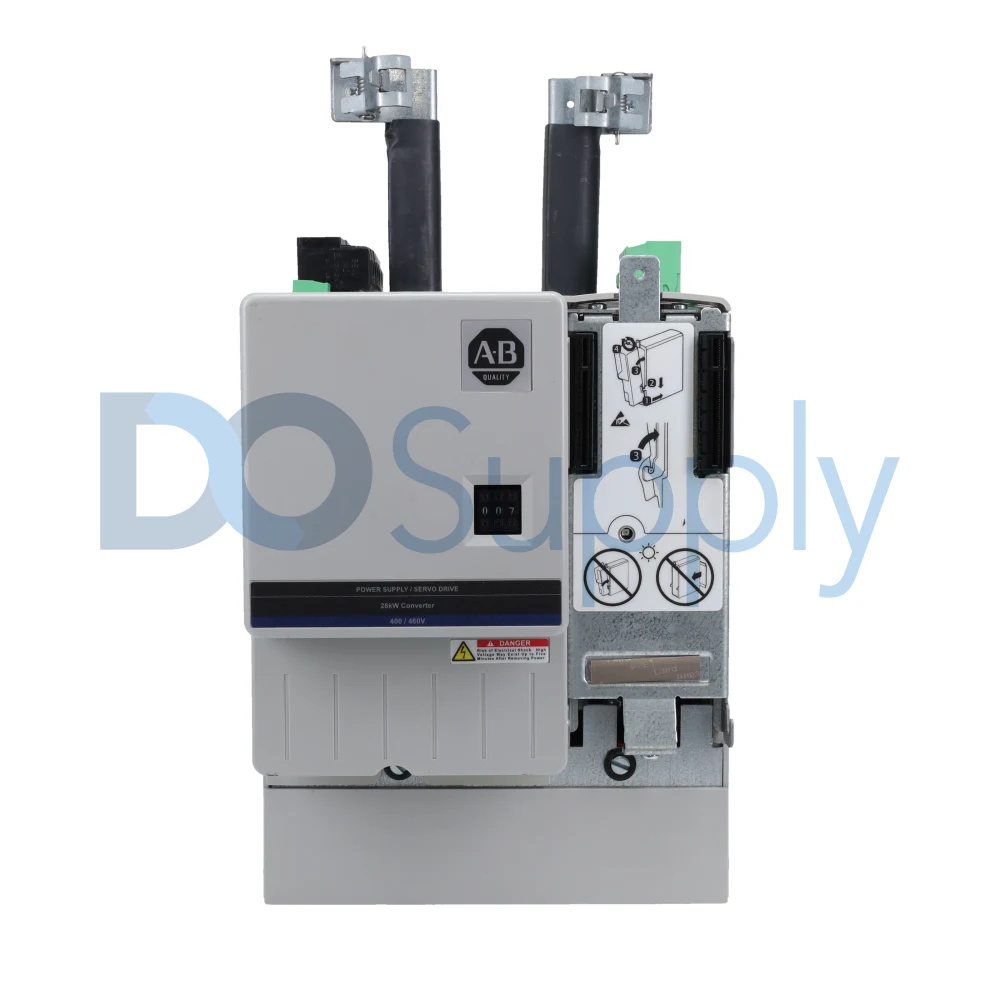

• Kinetix 6500 IAM Power Modules: These areIntegrated Axis (power) Modules (IAM) made up of an inverter and converter section. They require 400V-class, three-phase AC input power and are available with a Safe Speed Monitor function. These power modules are mounted on a Bulletin 2094 (Catalog No. 2094-PRSx or 2094-PRx) power rail. They include:
• 2094-BC01-MP5-M: 1.8 kW, 4.0 A (0-pk) inverter; 6.0 kW, 9.0 A (A_DC) converter
• 2094-BC01-M01-M: 3.9 kW, 8.6 A (0-pk) inverter; 6.0 kW, 9.0 A (A_DC) converter
• 2094-BC02-M02-M: 6.6 kW, 14.6 A (0-pk) inverter; 15.0 kW, 23.0 A (A_DC) converter
• 2094-BC04-M03-M:13.5 kW, 30.0 A (0-pk) inverter; 28.0 kW, 42.0 A (A_DC) converter
• 2094-BC07-M05-M:22.0 kW, 49.0 A (0-pk) inverter; 45.0 kW, 68.0 A (A_DC) converter

Note: A Kinetix 6500 drive system requires just one 2094-BCxx-Mxx-M leader IAM. However, if your application requires it, you can include more IAM power modules to be used as follower IAMs. Each 2094-BCxx-Mxx-M power module is coupled with a Bulletin 2094 EtherNet/IP control module.

• Kinetix 6500 AM Power Modules: These Axis (power) Modules (AM) consist of a common DC-bus inverter rated for three-phase, 400V-class AC input power. They include:
• 2094-BMP5-M: 4.0 A (0-pk), 1.8 kW inverter
• 2094-BM01-M: 8.6 A (0-pk), 3.9 kW inverter
• 2094-BM02-M: 14.6 A (0-pk), 6.6 kW inverter
• 2094-BM03-M: 30.0 A(0-pk), 13.5 kW inverter
• 2094-BM05-M: 49.0 A (0-pk), 22.0 kW inverter

Note: A Kinetix 6500 drive system can include up to seven 2094-BMxx-M AMs mounted on a Bulletin 2094 (Catalog No. 2094-PRSx or 2094-PRx) power rail. Each 2094-BMxx-M power module is coupled with a Bulletin 2094 EtherNet/IP control module and must be used with a 2094-BCxx-Mxx-M IAM power module.

• Kinetix 6500 Control Modules: These are interchangeable Bulletin 2094 modular components for wiring I/O, feedback, and safety options through EtherNet/IP networking. They couple with the 2094-BCxx-Mxx-M and 2094-BMxx-M power modules to provide different drive status indicators and an Ethernet/IP interface to functional safety, I/O, feedback, and communication modules. There are two Kinetix 6500 control modules, namely:

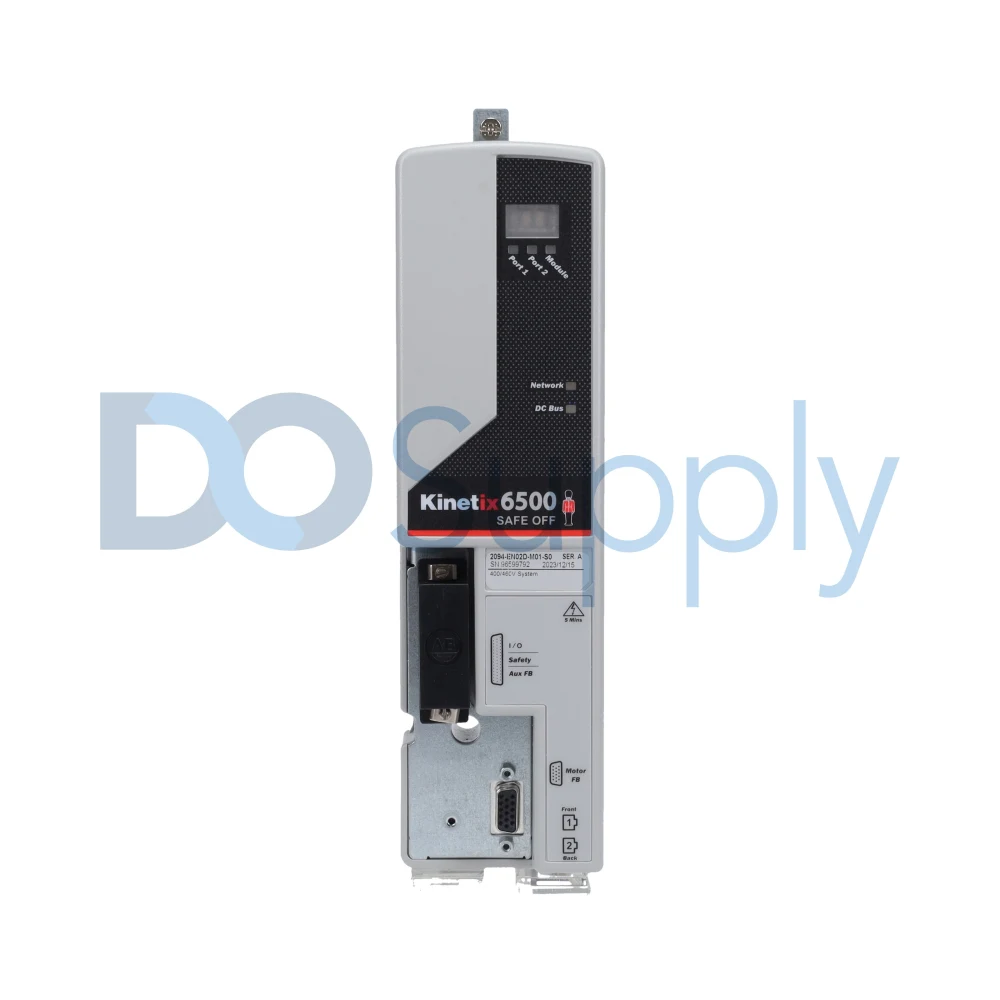

• Catalog No. 2094-EN02D-M01-S0: Safe Torque-Off, EtherNet/IP, control module
• Catalog No. 2094-EN02D-M01-S1: Safe Speed-Monitoring, EtherNet/IP, control module
• Bulletin 2094 Shunt Module (Catalog No. 2094-BSP2): A 400/200V-class, 200 W module that provides additional shunt capacity in regenerative motion control applications, i.e., where the internal shunt capacity of a Kinetix 6500 AM or IAM power module is exceeded. It mounts on a 2094-PRSx or 2094-PRx power rail.
• Bulletin 2094 Slot-Filler Module (Catalog No. 2094-PRF): It provides continuity for control and power signals from a Kinetix 6500 IAM to adjacent shunt modules and AMs in the case that one or more slots on the Bulletin 2094 power rail in use are empty – not occupied by a shunt module or an AM power module.
• Bulletin 2094 Line Interface Modules (Catalog No. 2094-xLxx, 2094-XL75S-Cx, and 2094-xLxxS): These include the Bulletin 2094 power supplies, circuit breakers, safety contactors, and AC line filters (Catalog No. 2094-BL02 only) required for the proper operation of a Kinetix 6500 drive system. Note: these modules are not mounted on a Bulletin 2094 power rail.
• Bulletin 1394 External Shunt Modules (Catalog No. 1394-SRxxxx): These are external passive shunt modules that are used when the shunt capacity of the power rail-mounted Kinetix 6500 IAM/AM power module and 2094-BSP2 shunt module is exceeded.
• Bulletin 2090 Resistive Brake Modules (Catalog No. 2090-XBxx-xx): The modules incorporate a safety contactor used in a control circuit. They also contain braking resistors and contactors used to bring a permanent magnet motor to an immediate stop by disconnecting the motor leads from the Kinetix 6500 drive. Note that these modules cannot be mounted on a Bulletin 2094 power rail.

Final Thoughts

The Kinetix 6500 is one of those rare systems that quietly streamlines everything around it. By combining EtherNet/IP networking, advanced safety, and modular scalability, it bridges the gap between motion control precision and practical usability. Its design encourages engineers to think less about cabling, network segregation, or compatibility hurdles and more about performance, throughput, and uptime. For engineers aiming to blend reliability, safety, and modern connectivity, the Kinetix 6500 proves that smart motion control doesn’t have to be complicated, it just has to be built with the right priorities in mind.
